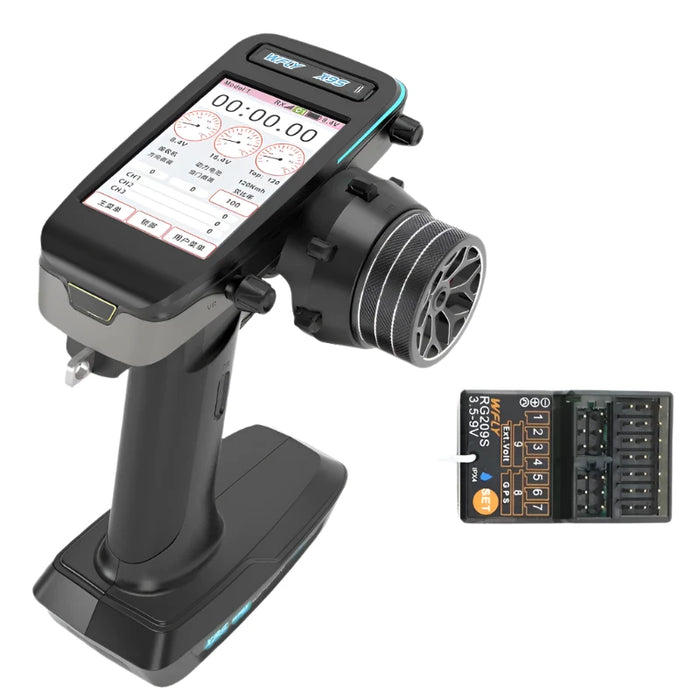

WFly X9S 9-Channel 2.4GHz Digital Radio Set with RG209S Receiver

FEATURES:

• Radio parameters:
  • Model Type: X9S
  • Channel: 9 channels
  • Working voltage: 7.0V~8.4V(2S lipo battery)
  • Working current: 260~400mA
  • Frequency Hopping: FHSS
  • Modulation: LORA
  • Application: RC cars, boats, tanks, robot,etc.
  • Resolution: 4096
  • Frequency band: 2.4GHz (two-way)
  • Transmission power: ≤100mw
  • Range: ＞600m(ideal round)
  • Temperature: -10℃-+60℃
  • Simulator interface: 3.5mm TRS(PPM)
  • Storage: 40 models memory
  • Program mix: 5 models
  • Voice broadcast: Support
  • Charging: Support 2S lipo battery(Type C) 15W fast charging
  • Language: English
  • Upgrade: USB upgrade port , HID analog port.
  • Signal copy: Same version model data
  • Servo: Support 180/270°
  • Display: 3.5" 480*320 capacitive touch screen
  • Inner bin size: 100x45x18mm
  • Dimension: 185x147x110mm
  • Weight: 358g
• Receiver parameters:
  • Model name: RG209S
  • Channel: 9 channels(PWM)
  • Working current: 95mA
  • Frequency band: 2.4GHz(two way transmission)
  • Working voltage: 3.5V~9.0V
  • Modulation: LORA
  • GPS: Support speed detection
  • Application: RC cars, boats, tanks, robot,etc.
  • Resolution: Full channel 4096
  • Temperature: -10℃-+60℃
  • Servo: Support 180/270°
  • Upgrade: USB online upgrade
  • Servo type: Support 50-400Hz
  • Receiver port settings: Support
  • External voltage detection: DC 1~36V
  • Dimension: 36x22.8x12.6mm
  • Weight: 8.3g
