Vanquish VPS09019 VS4-10 Phoenix Portal RTR Rock Crawler Green

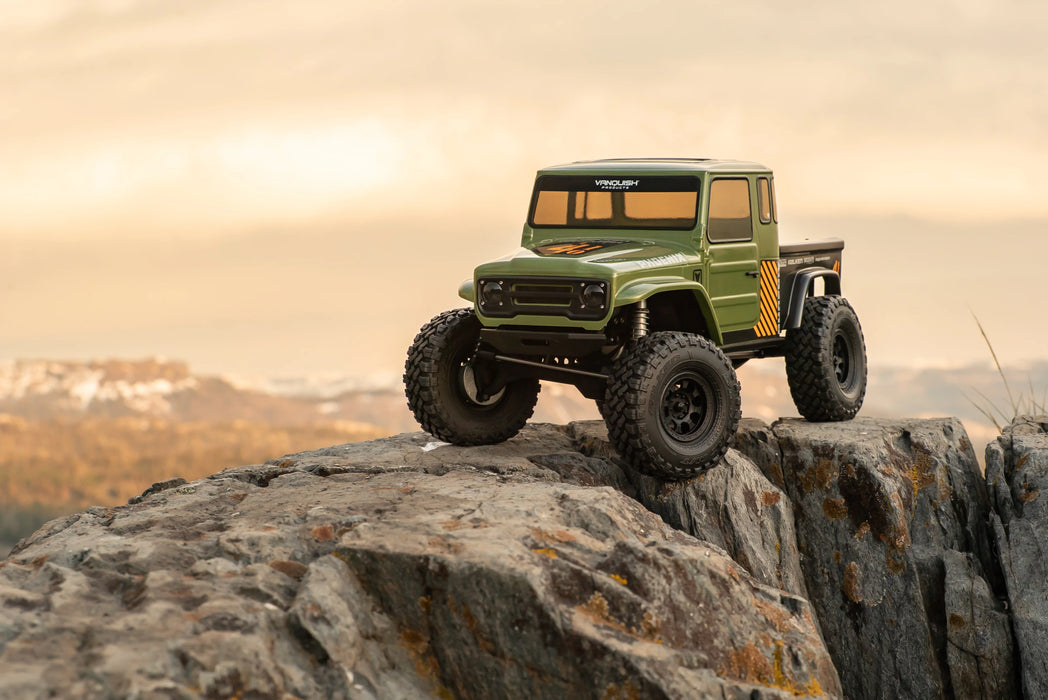

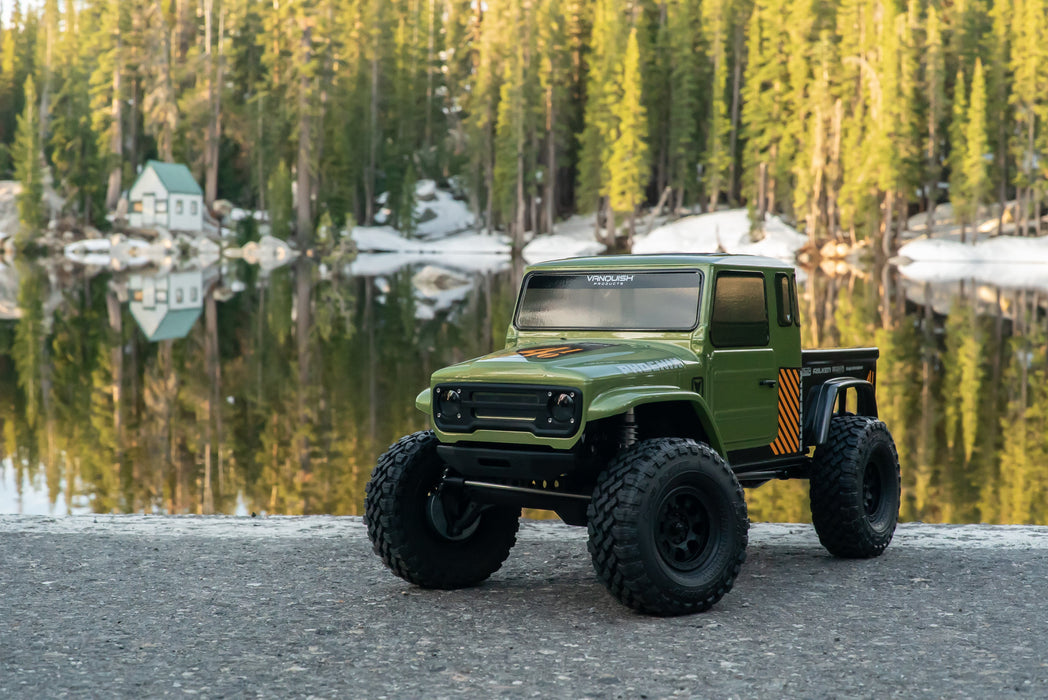

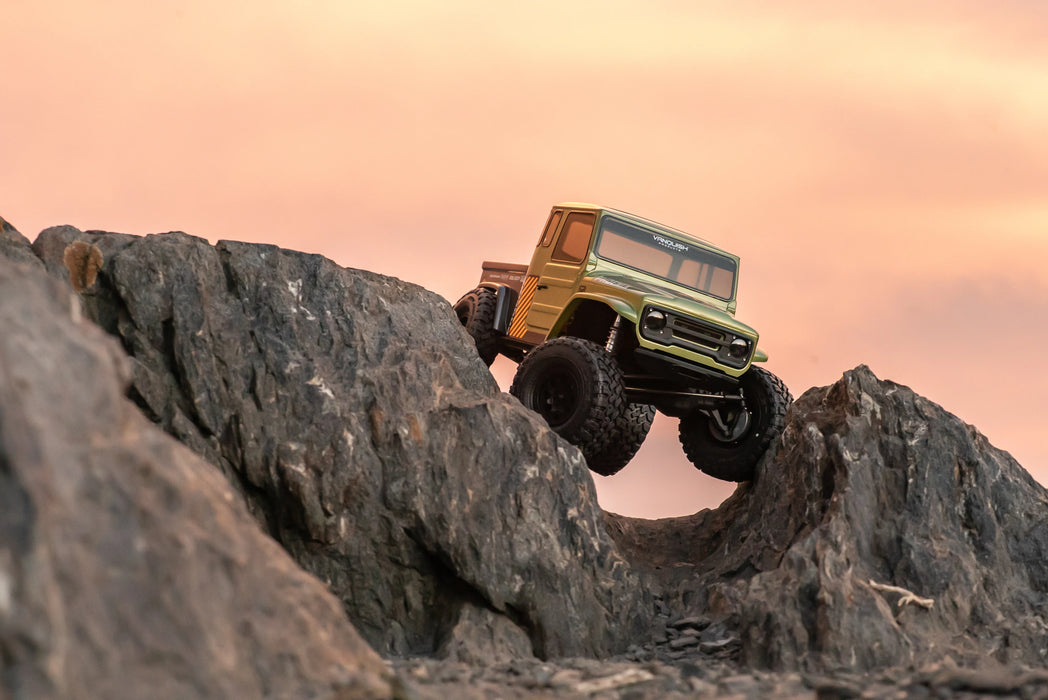

The VS4-10 Phoenix RTR is a throwback-inspired truck with the modern rugged durability that Vanquish Products is known for. Features the VFD Spec transmission, F10 Portal Axles, with knuckle weights and a bold new livery with painted bedsides. Included is a full function digital 4 Channel VT-1 Transmitter with multiple model memory and end point adjustment, making the VS4-10 Phoenix RTR ready to be equipped with optional radio controlled accessories such as a winch, light controller or dig. Out of the box the VFD Spec Transmission comes with 6.5% OD powered by a 35T VM-1 Motor and VE-1 3S capable ESC. High quality stainless steel links are used throughout the Phoenix's suspension, including larger diameter lower links for extra mass down low and a high clearance front tie rod that removes the bends from the link. The F10 portal axles are equipped with knuckle weights and machined ring and pinion gears. The chromoly universal axle shafts allow for 49 degrees of steering. Full ball bearings, metal transmission gears and 32P spur / pinion provide smooth and reliable performance when tackling the toughest terrain.
The VS4-10 Phoenix RTR is equipped with the VFD Spec transmission, a proven transmission with outstanding durability and optimized design. The molded F10 portal axles utilize a high clearance design which minimizes the size of the pumpkin and provides the look of full scale axles you would see in the real world. Connecting the VFD Spec to the F10 portal axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth, quiet and efficient performance. The large 8mm bore S8E shocks include dual O-Ring cartridge and revised threaded caps with a sealed upper bleeder screw. S8E preload adjustment is a breeze with the threaded shock bodies and collars.
FEATURES:
- VFD Spec Transmission with 6.5% Overdrive
- F10 Portal Axles with Knuckle Weights
- Offset Pumpkin Front Axle
- Centered Pumpkin Rear Axle
- Machined Ring and Pinion gears with Chromoly 6-bolt spools
- Machined Portal gears
- Universal-style front axle shafts
- 6mm HD axle outputs with M5 nylock nuts (8mm Tool Adapter included)
- HD Stainless Steel Links
- 25T 20MM Metal Servo Horn
- Metal Panhard Mount
- Double Shear Shock Mounts
- Aluminum machined 12mm Hexes
- ISD10 Driveshafts
- S8E Shocks with revised threaded caps with sealed upper bleeder screw, dual O-ring cartridge
- Hidden body clip system

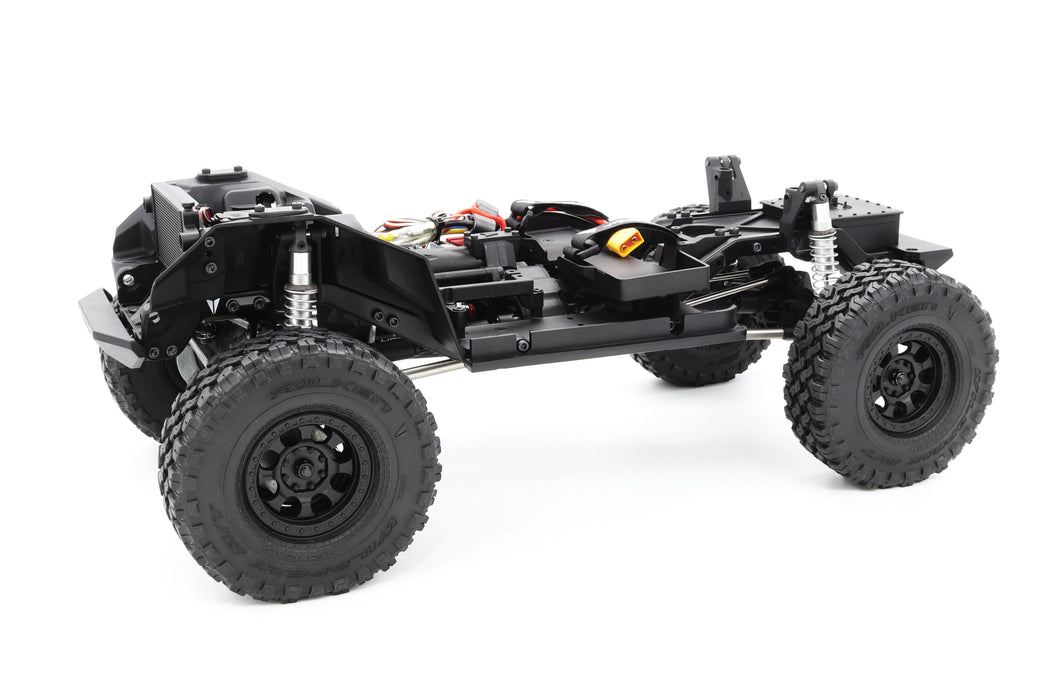

- Heavy Duty High Clearance Steel C-Channel Frame Rails
- Molded Front Inner Fenders with integrated LED mounts
- Phoenix Molded Rock sliders
- Phoenix High Clearance Bumpers
- Integrated battery tray and electronic mounting positions
- Stainless Steel links
- Molded inner fenders with front body hinge and scale radiator mount
- VFD Spec Transmission
- Standard Overdrive 6.5%
- Sintered Internal Gears
- Hardened Chromoly Shafts
- Molded VFD Skid Plate for Motor Protection
- Molded Battery and Electronic trays
- Full ball bearing transmission
- Scale Molded Transmission Housing
- Molded 6mm motor plate
- Molded Spur Gear Cover
- 32P 52T Spur and 15T Steel Pinion (Portal equipped Gearing)
- F10 Portal axles
- Molded Plastic Axle housings
- Machined Chromoly Portal Gears
- Universal Style Axle Shafts
- 49 Degrees of Steering
- High Caster reinforced C-Hub
- High-Pinion Hypoid Machined Axle Gears (30/8)
- 6-Bolt Ring Gear and Spool
- 1.4:1 Portal Gear Ratio
- 6mm Output shafts with M5 wheel nut
- One-Piece Molded Bearing Retainers
- Adjustable Lower Shock Mounting Position
- Chromoly universal shafts
- Brass tube inserts
- Scale removable third member
- Machined aluminum red anodized rear fill cap with molded install tool

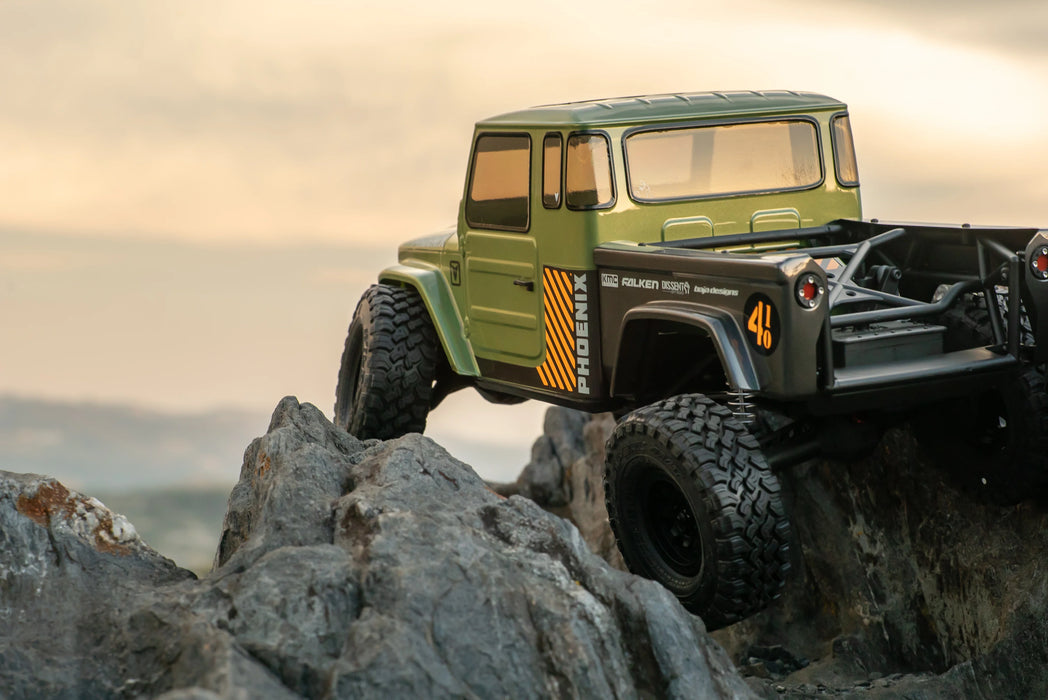

- Phoenix Body with VRD1 Cage
- New Metallic Green Livery
- Painted Cab, and Bedsides

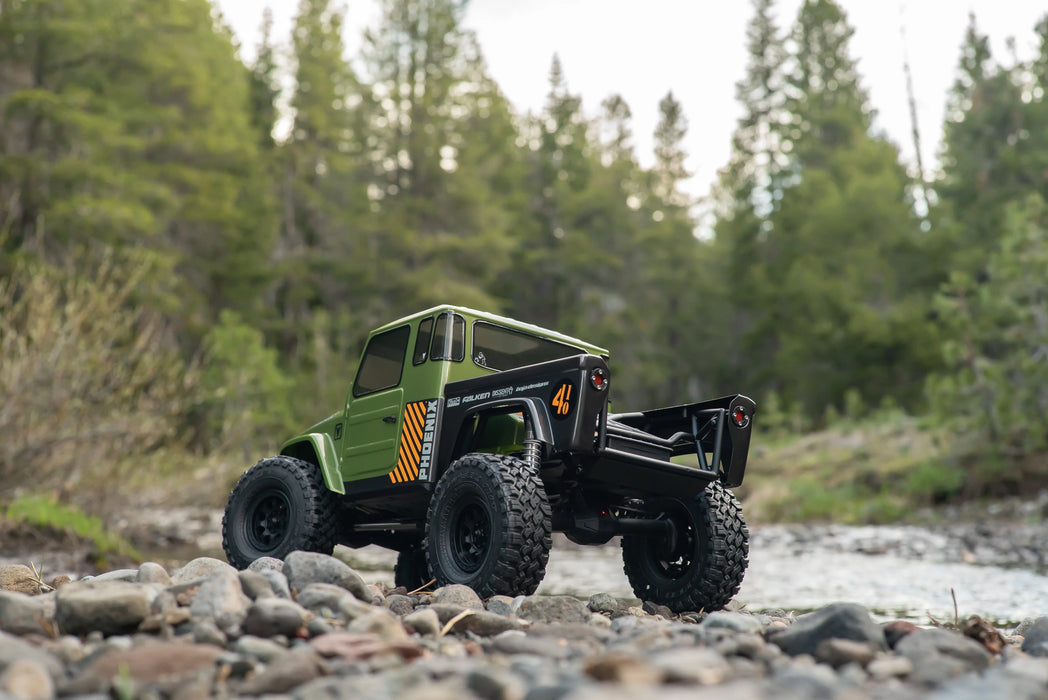

- VRD1 Rear Cage
- 3-Piece Body Design
- Headlight and Tail Light buckets
- Molded Grill
- Hinged Design
- Hidden body clips with quick release front pivot pin
- Wheels and Tires
- 1.9 Falken Wildpeak M/T - White Compound Tires
1.9 Incision KMC KM237 Hex Beadlock Wheels
- 1.9 Falken Wildpeak M/T - White Compound Tires
SPECIFICATIONS:
- 1/10th scale
- Falken Wildpeak white compound 4.65”x 1.9” tires
- 5.25:1 axle gear ratio
- 15t/52t pinion / spur
- Overall width: 250mm (9.84”)
- Overall height: 250mm (9.84”)
- Wheelbase: 313mm (12.3”)
- Overall front ratio (6.5% od): 53.7
- Overall rear ratio: 57.3
- RTR weight (without battery): 6.3lbs (2.85kg)
- Front axle width pin to pin: 190mm (7.5”)
- Rear axle width pin to pin: 188mm (7.35”)
Needed to complete:
- Battery (35mm x 35mm x 100mm Maximum with XT60 Plug)
- Compatible Charger with selected battery
*** Transmission dust shield is not 100% element proof. Use access cover to regularly check transmission for debris and add grease as needed.
