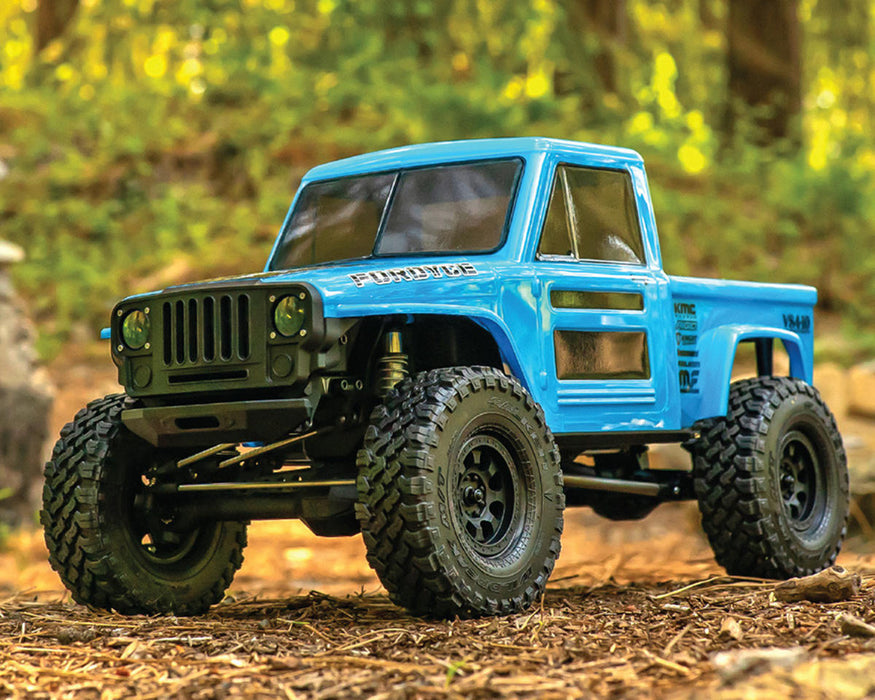

Vanquish VPS09012A VS4-10 Fordyce Straight Axle RTR Rock Crawler - Blue

The VS4-10 Fordyce RTR is a retro inspired truck with the modern rugged durability that Vanquish Products is known for. Features the VFD Spec transmission, F10 Straight Axles, and Fordyce body with bedsides. Included is a full function digital 4 Channel VT-1 Transmitter with multiple model memory and end point adjustment, making the VS4-10 Fordyce RTR ready to be equipped with optional radio controlled accessories such as a winch, light controller or dig. Out of the box the VFD Spec comes with 6.5% OD powered by a 35T VM-1 Motor and VE-1 3S capable ESC.

High quality stainless steel links are used throughout the Fordyce’s suspension, including larger diameter lower links for extra mass down low and a high clearance front tie rod that removes the bends from the link. The F10 straight axles are equipped with a one piece ring gear and spool paired with machined pinion gear. The chromoly universal axle shafts allow for 49 degrees of steering. Full ball bearings, metal transmission gears and 32P spur / pinion provide smooth and reliable performance when tackling the toughest terrain.

The VS4-10 Fordyce RTR is equipped with the VFD Spec transmission, a proven transmission with outstanding durability and optimized design. The molded F10 Straight Axles utilize a high clearance design which minimizes the size of the pumpkin and provides the look of full scale axles you would see in the real world. Connecting the VFD Spec to the F10 Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth, quiet and efficient performance. The large 8mm bore S8E shocks included dual X-Ring cartridge and scale threaded caps with a sealed upper bleeder screw. S8E preload adjustment is a breeze with the threaded shock bodies and collars.

VT-1 Digital 4 Channel Transmitter provides industry leading features and tuning capabilities in an RTR. 15 model memory, multi-channel end point and rate adjustment, digital screen and multi-position switches for the 3rd and 4th channel. Your VS4-10 Fordyce RTR is ready for your additional servos or accessories to fully utilize the VT-1 Transmitter.

VE-1 ESC is 3S LiPo capable and includes a strong BEC to power servo functions. The built-in jumpers can be moved to adjust LiPo cut-off and drag brake strength. Factory tuned for your VS4-10 Fordyce RTR. The VE-1 ESC is our version of the Hobbywing 1060, one of the most trusted RTR ESC’s on the market.

VM-1 35T Brushed motor is a closed endbell design tuned for the VS4-10 Fordyce RTR to provide trail torque with plenty of speed to conquer the roughest terrain with confidence.

VS-1 Metal Gear Servo tackles the steering duty on the VS4-10 Fordyce with 200oz-in of torque. Ready for all elements the VS-1 Servo is water resistant and durable with its metal gears and 25T output spline for industry standard servo horns.

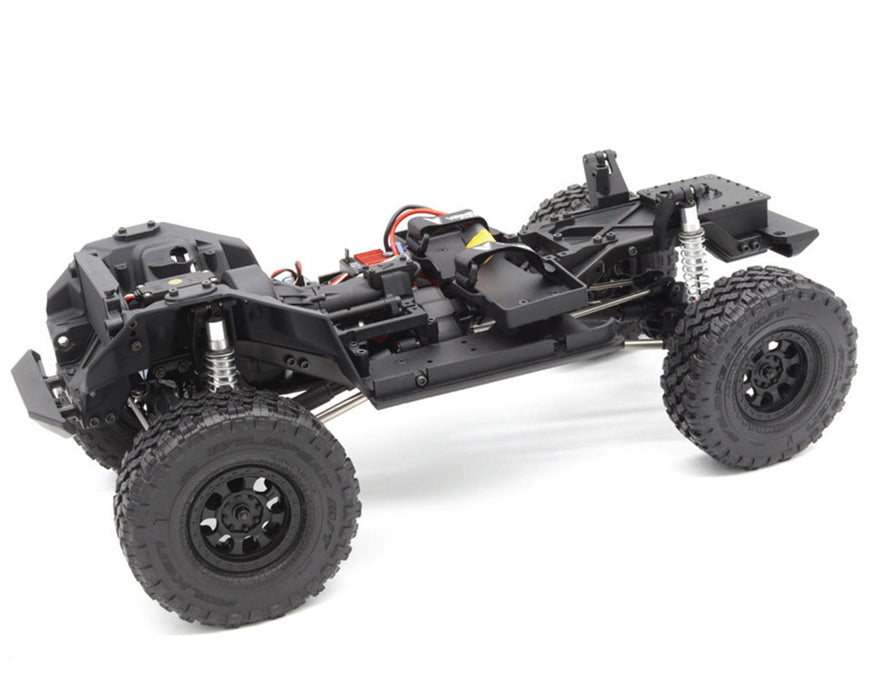

VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable tapered outer portion that perfectly fits the Fordyce body. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision S8E Shocks in double shear for maximum support. Narrow molded front and rear bumpers maximize clearances while improving approach and departure angles.

FEATURES:

• Drivetrain:
• VFD Spec Transmission
• F10 Straight Axle Housings
• Offset Pumpkin Front Straight Axle
• Centered Pumpkin Rear Straight Axle
• Universal-style front axle shafts
• Double Shear Shock Mounts
• ISD10 Driveshafts
• VFD SpecTransmission:
• Standard Overdrive 6.5%
• Slipper Clutch
• Sintered Internal Gears
• Hardened Chromoly Shafts
• Molded VFD Spec Extended Skid Plate for Motor Protection
• Molded Battery and Electronic trays
• Full ball bearing transmission
• Scale Molded Transmission Housing
• Molded 6mm motor plate
• 32P 56T Spur and 13T Steel Pinion
• F10 Straight Axles:
• Molded Axle housings
• Universal Style Axle Shafts
• 49 Degrees of Steering
• High Caster reinforced C-Hub
• High-Pinion Hypoid Machined Axle Gears (30/8)
• 5mm Output shafts with M4 wheel nut
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position
• Scale removable third member
• Machined aluminum red anodized rear fill cap with molded install tool
• Chassis:
• Heavy Duty High Clearance Steel C-Channel Frame Rails
• Molded Front Inner Fenders with integrated LED mounts
• Molded Rock sliders
• High Clearance Bumpers
• Integrated battery tray and electronic mounting positions
• Stainless Steel links
• Molded inner fenders with front body hinge and scale radiator mount
• S8E Scale 90mm Shocks:
• The Incision S8E Aluminum Scale Shocks feature a larger 8mm bore for increased dampening and longer seal life
• Dual molded X-Ring lower shock cartridge provides more sealing surfaces than standard O-rings
• Threaded shock bodies allow a wide spring preload range
• Scale shock cap with steel pivot ball and bleeder screw
• Offset lower shock pivot balls allow for greater flexibility for tuning shock angles
• Polished Shock shafts
• Equipped with +5mm rod ends
• Fordyce Body:
• VRD1 Rear Cage
• 3-Piece Body Design
• Headlight and Tail Light buckets
• Molded Grille
• Hinged Design
• Hidden body clips with quick release front pivot pin
• Wheels and Tires:
• 1.9 Falken Wildpeak M/T RED Compound Tires
• Scale KMC KM237 Riot Beadlock Wheels

SPECIFICATIONS:

• Scale: 1/10
• Width: 9.53in (242mm)
• Front/Rear Axle Width (Pin to Pin): 7.17in (182mm)
• Height: 9.53in (242mm)
• Wheelbase: 12.32in (313mm)
• Pinion Gear: 13T
• Spur Gear: 56T
• Front Ratio: 41.3
• Rear Ratio: 44.0
• Transmission Ratio:
• Front: 2.95
• Rear: 3.15
• Rear Ratio: 50.8:1
• Axle Gear Ratio: 3.75:1
• RTR Weight: 5.9lbs (2.7kg)

INCLUDES:

• (1) Vanquish VS4-10 Fordyce Straight Axle RTR Rock Crawler with:
• (1) VE-1 Brushed ESC
• (1) VM-1 35T Brushed Motor
• (1) VS-1 Steering Servo
• (1) VT-1 Digital 4-Channel Transmitter
• Product Manual

Needed to Complete:

• (1) 2-3S LiPo Battery or (1) 6-Cell NiMH Battery with XT60 Connector
• Compatible Battery Charger
