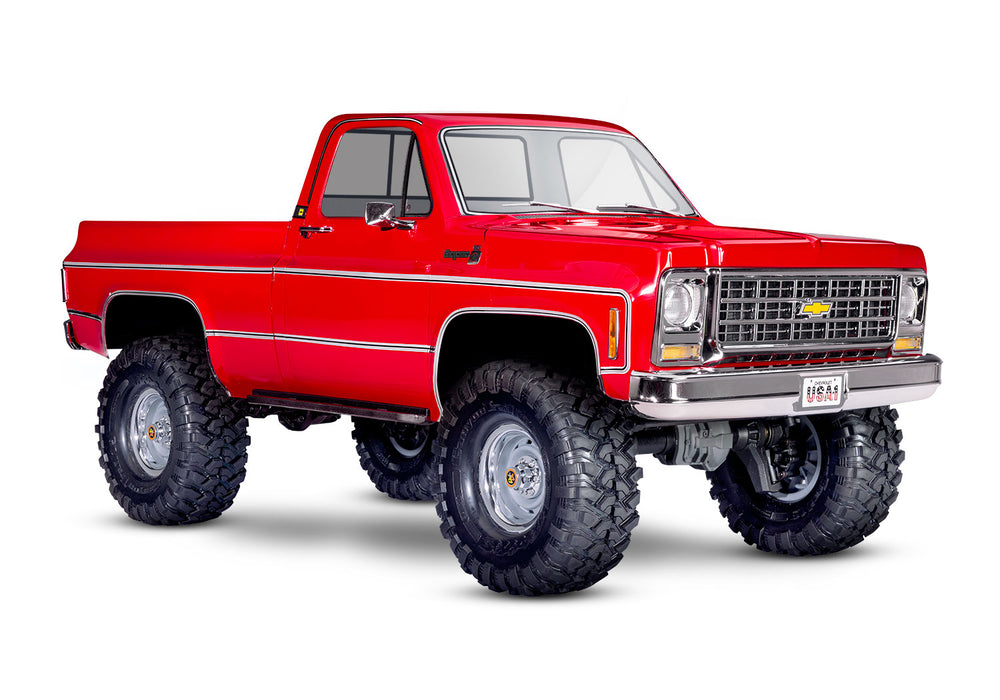

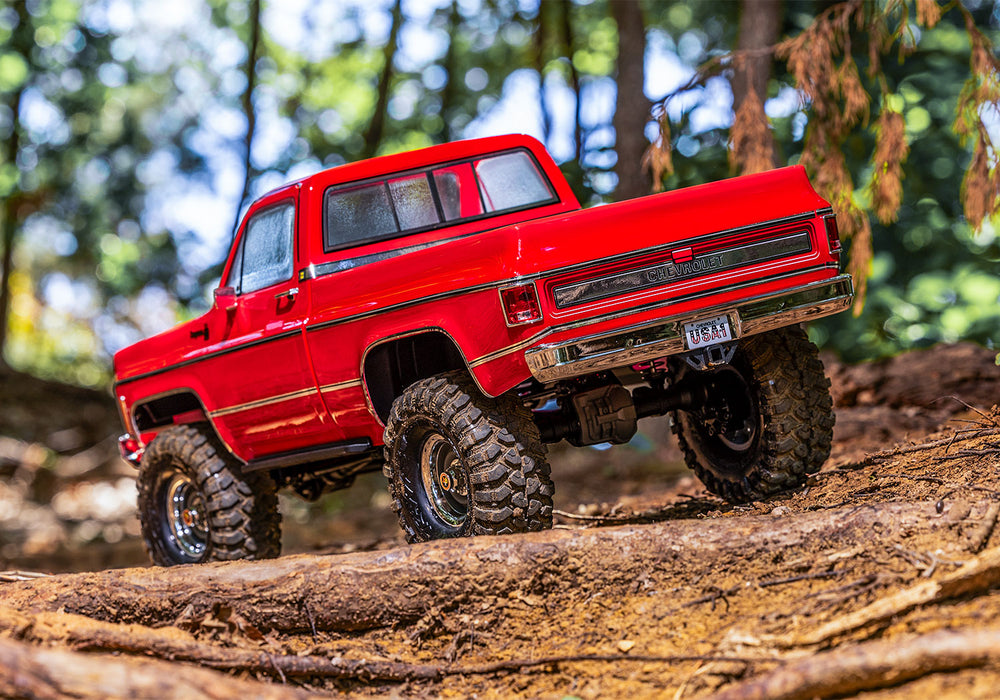

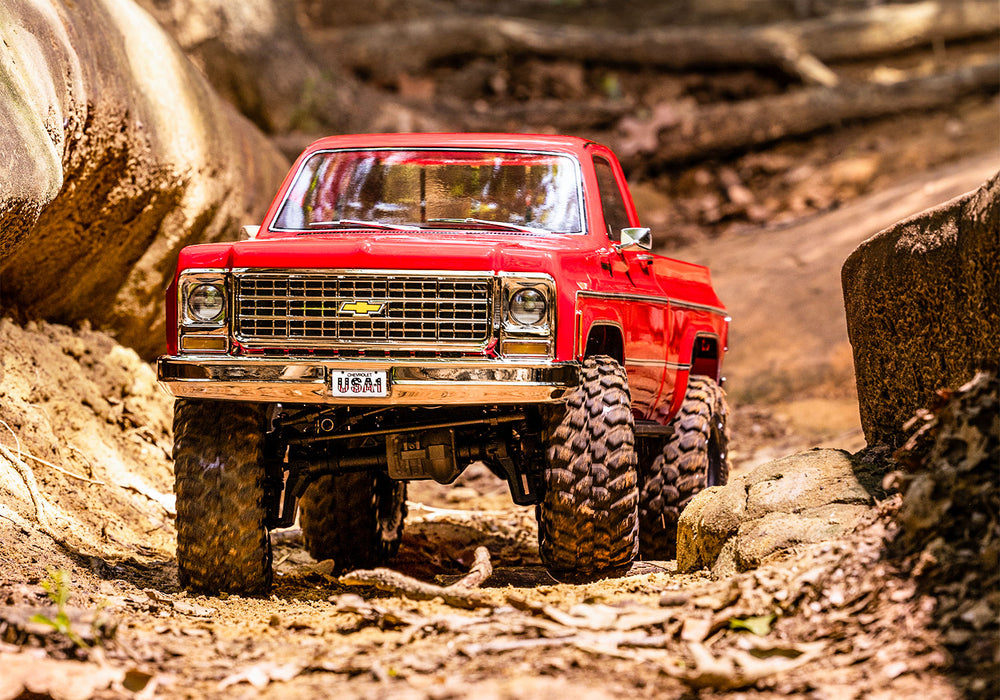

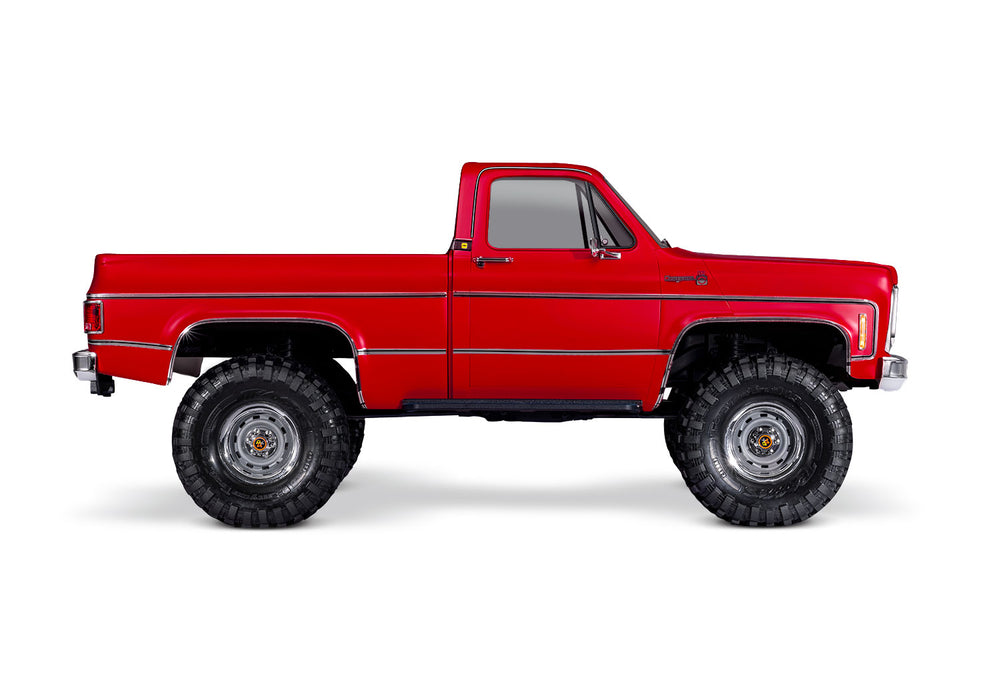

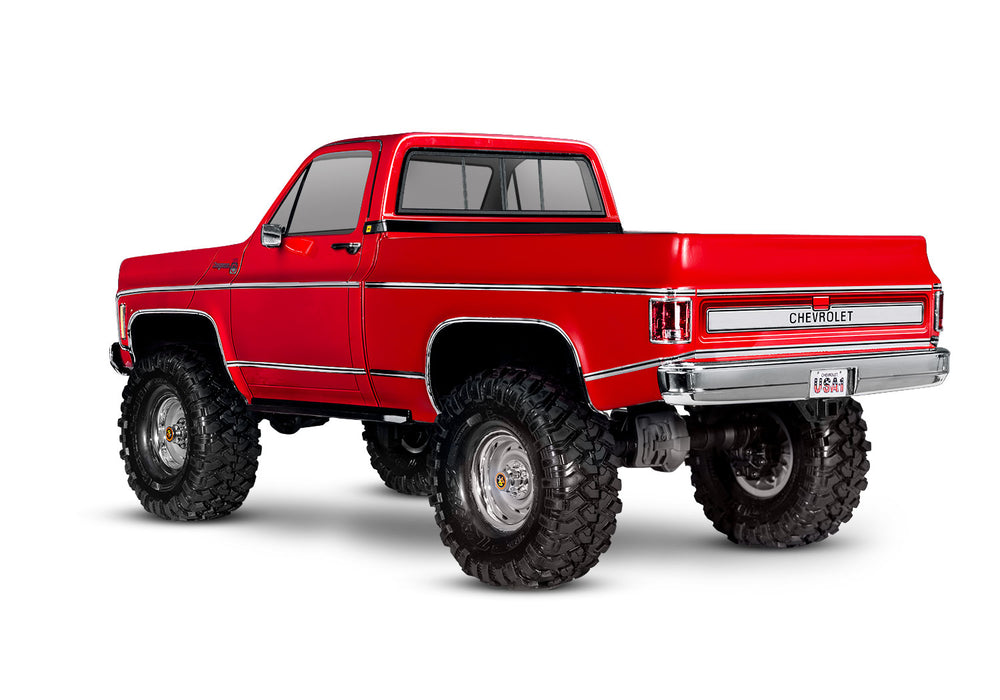

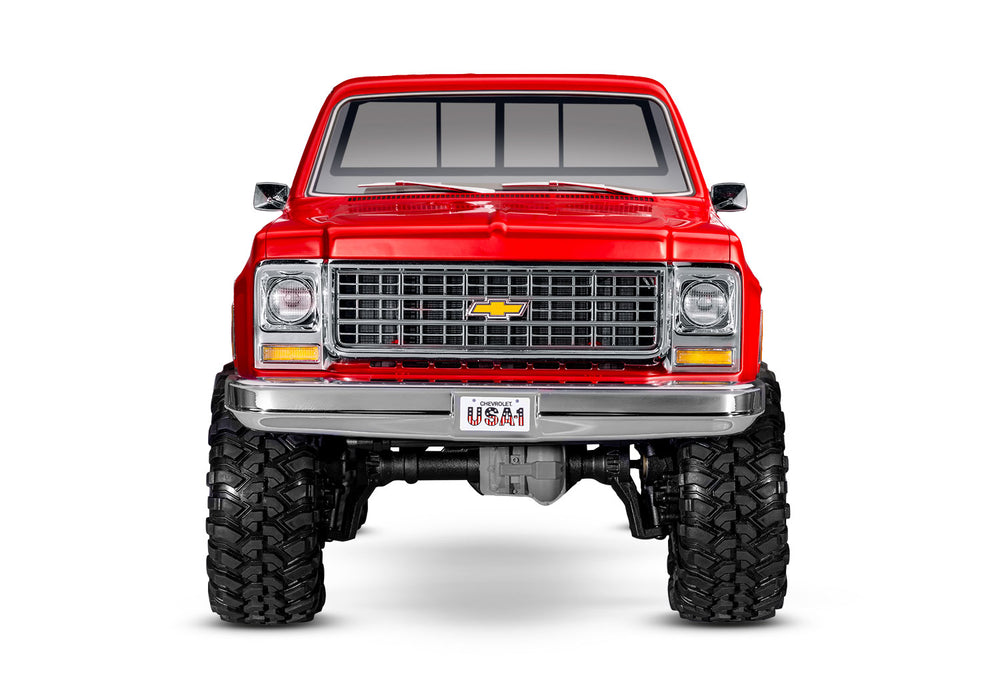

Traxxas 92154-4 TRX-4 Chevrolet K10 4WD Crawler Truck Red Clipless Body
TRX-4® Chevrolet® K10 combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a detailed clipless body. TRX-4 Chevrolet K10 is a leaner, performance-focused truck designed for increased climbing versatility. Sporting top-of-the-line trim with chrome trim and aluminum-finish mag wheels, TRX-4 Chevrolet K10 elevates your offroad adventures with style.
TRX-4 Chevrolet K10 delivers scale looks with bright chrome bumpers, side trim, and side markers. The highly detailed two-tone grille, wipers, and door handles combine with clear windows to give the truck maximum scale authenticity.
Geared for raw torque, the single-speed transmission sheds valuable weight from the TRX-4's chassis for better weight distribution. Steel gears provide Traxxas-Tough durability and virtually maintenance-free operation.
Full-time locked front and rear axles transform the motor's torque into unstoppable climbing action. With no slippage possible, all four wheels claw with equal traction, powering K10 over the toughest obstacles.
FEATURES:
- Officially Licensed Chevrolet® K10 Body
- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights and tail lights
- Authentic decals
- Full Nylon composite wheel wells and floor pans
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- TQ™ 2.4 GHz 2-Channel Radio
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the receiver dry
- Extended Wheelbase Chassis
- Long 336 mm wheelbase for improved stability
- Full-length 1.5 mm thick steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Driveline
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear axles
- Steel-gear transfer case
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual x-ring shaft seals
- Wheels and Tires
- 1.9″ chrome mag wheels wheels with hub inserts
- Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
- Trail-tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (sold separately)
SPECIFICATIONS:
- Type: Trail Truck / Crawler
- Skill Level: 1
- Chassis: Extended steel ladder frame
- Scale: 1/10
- Weight: 5.79 lb (2.63 kg)
- Length: 22.30 inches (566 mm)
- Width: 9.78 inches (249 mm)
- Height: 9.47 inches (241 mm)
- Track: 9.78 inches (249 mm)
- Wheelbase: 13.23 inches (336 mm)
- Center Ground Clearance: 3.14 inches (80 mm)
- Driveline: Shaft-driven 4WD
- Transmission: Single speed
- Differential Type: Spool (no differentials)
- Gear Pitch: 32 pitch
- Steering Servo: 2075X metal gear, digital high-torque waterproof
- Radio System: TQ™ 2.4 GHz 2-channel transmitter
- Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm
INCLUDES:
- TRX-4 trail truck
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
Needed to complete:
- Batteries: TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries
- Charger: The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
