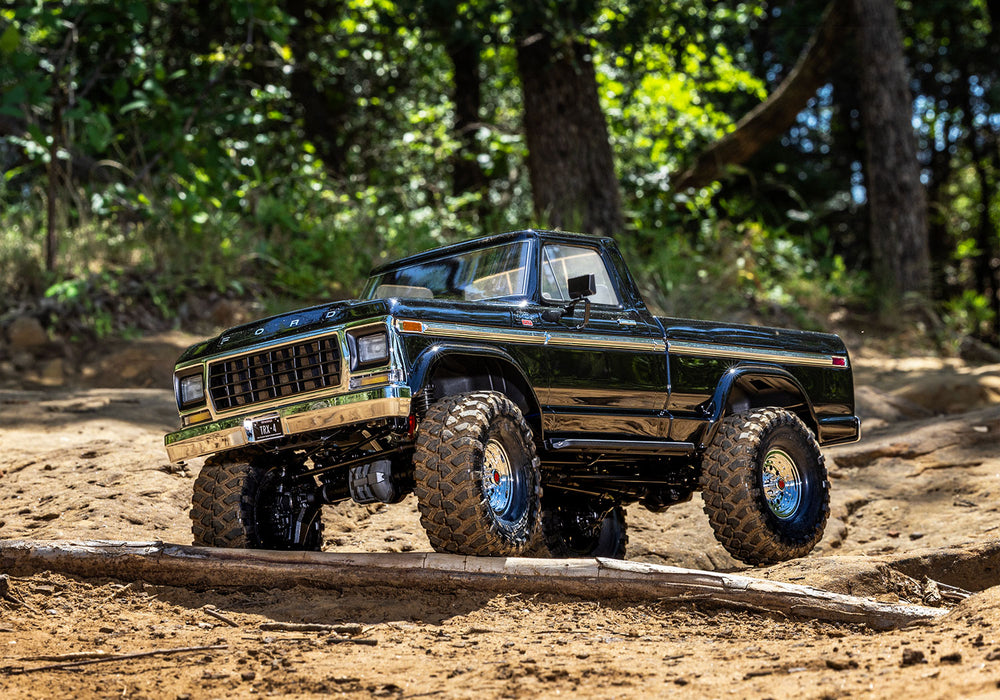

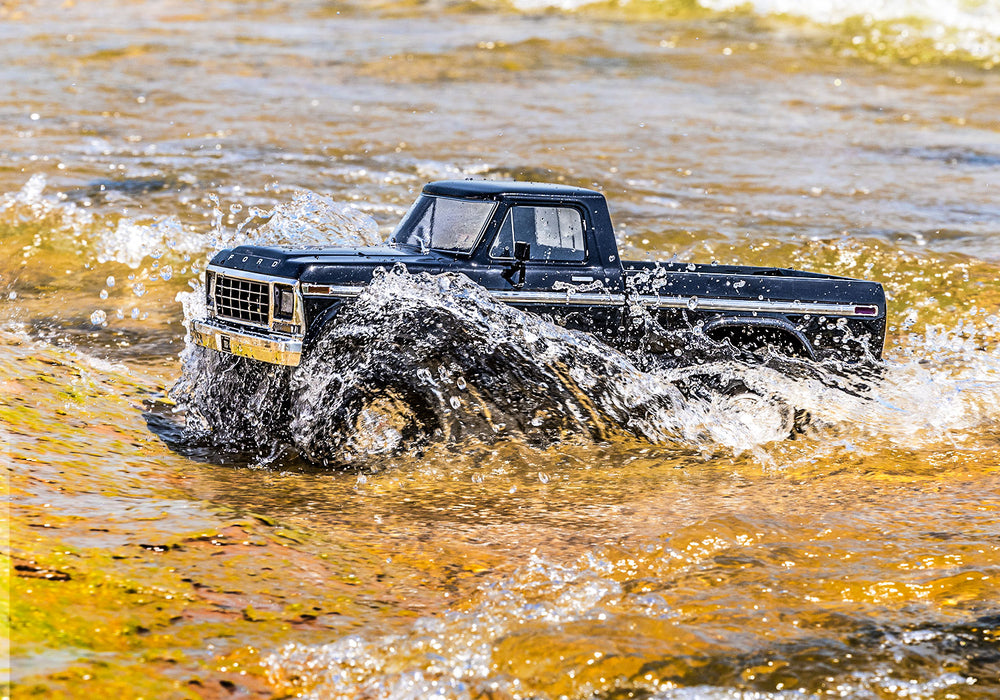

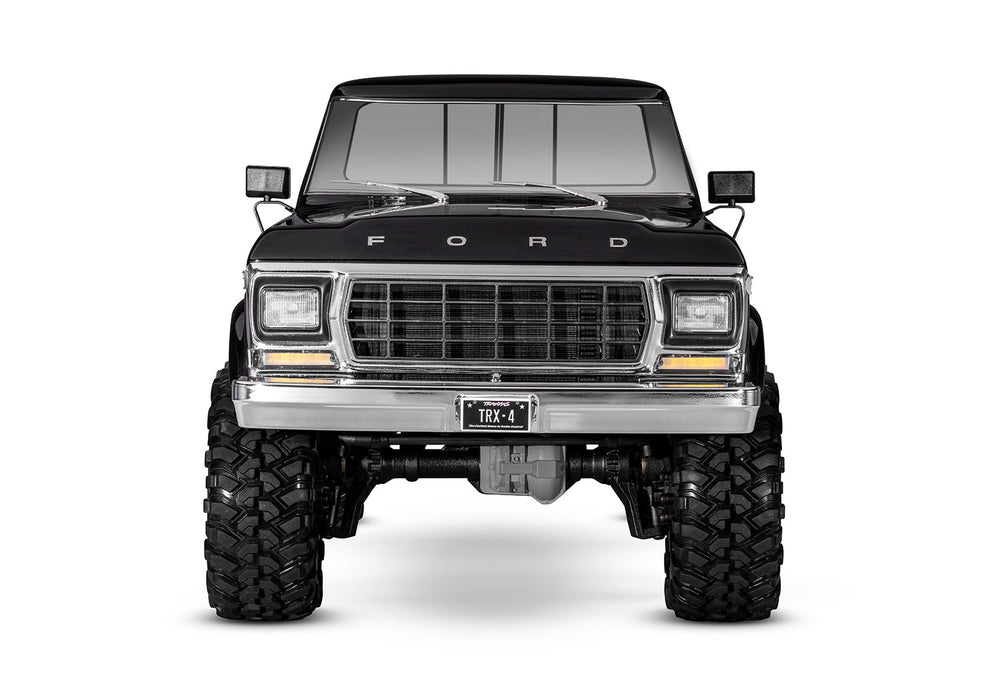

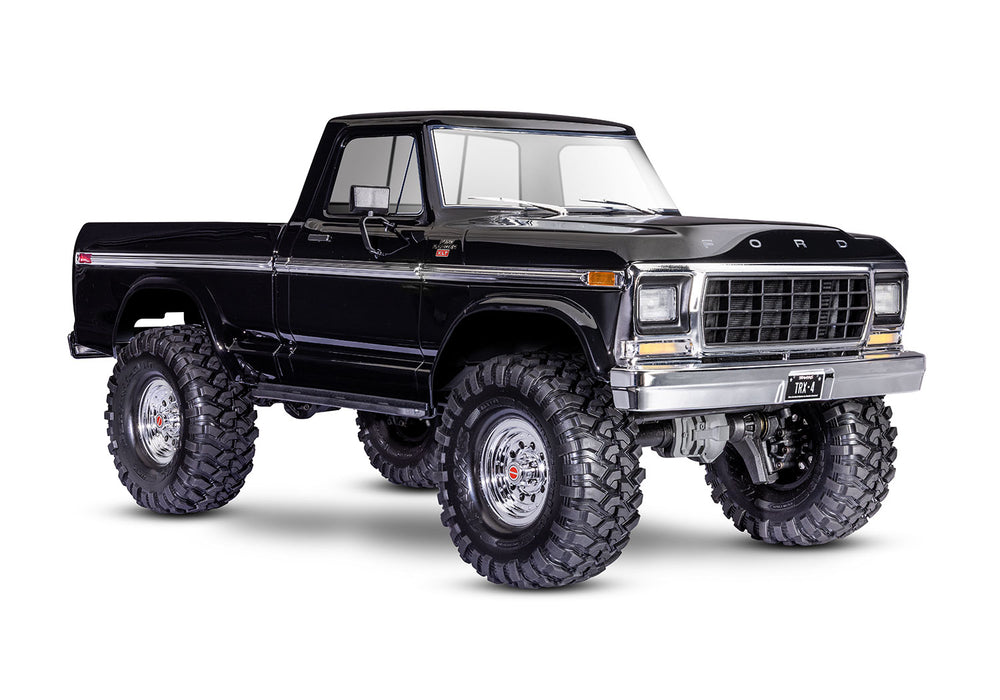

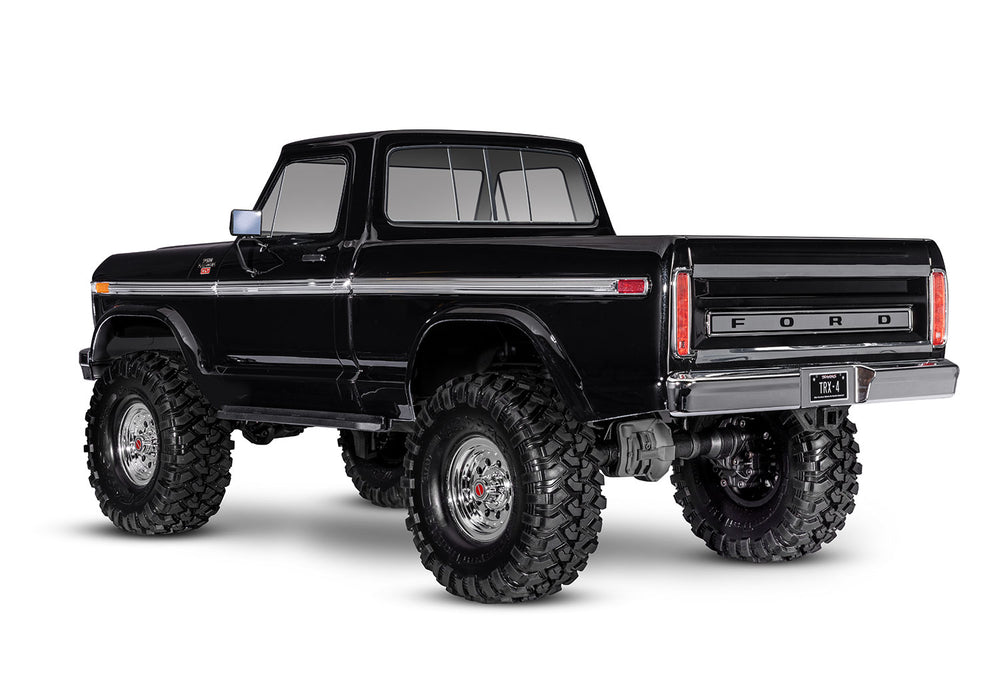

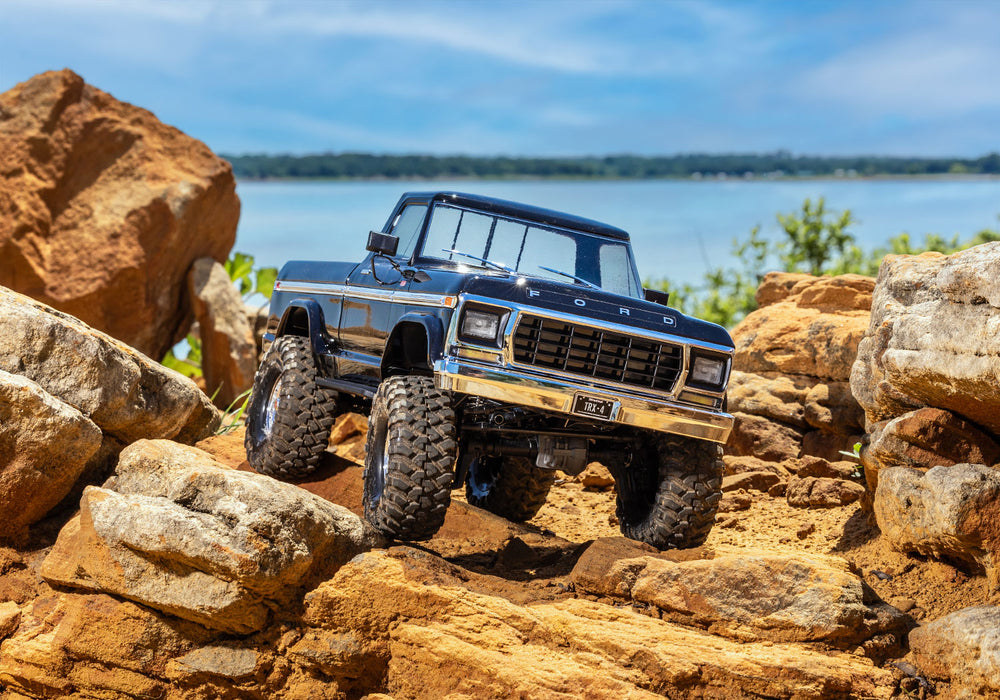

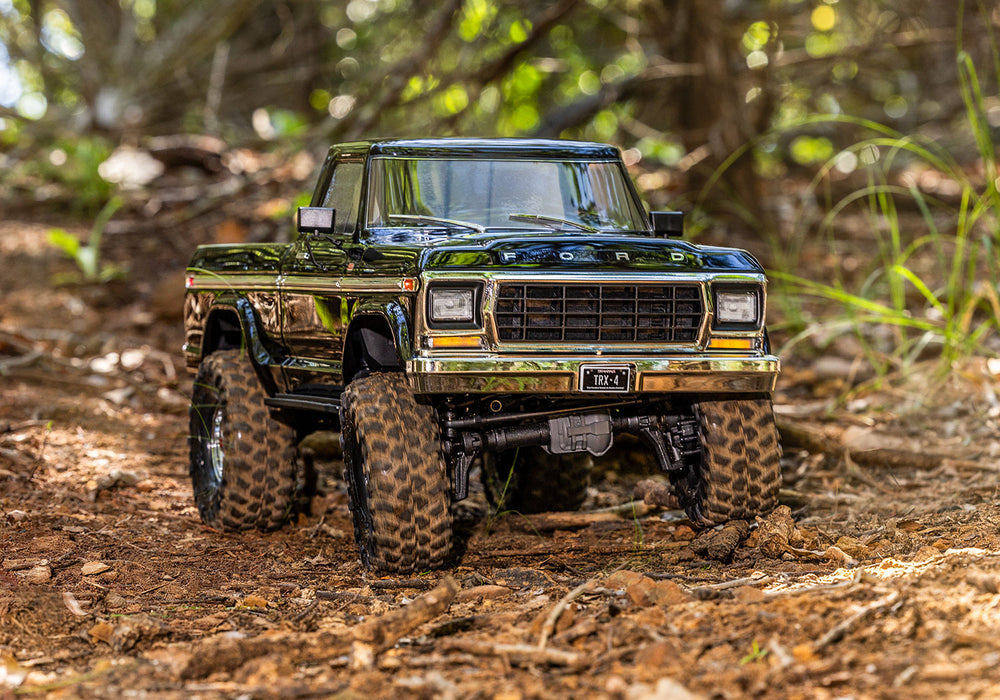

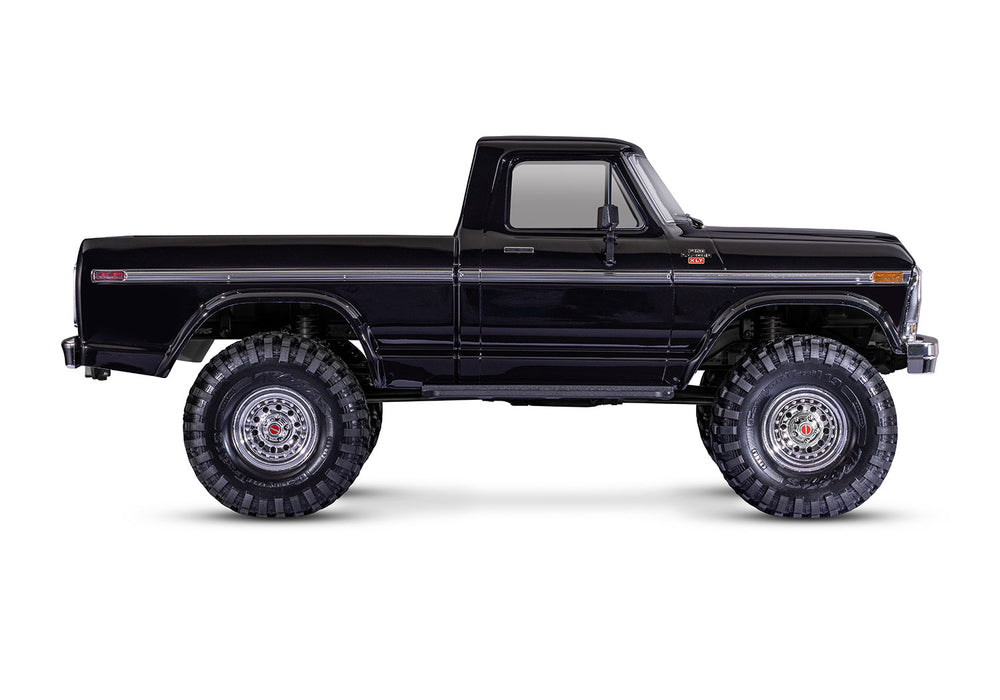

Traxxas 92144-4 TRX-4 F-150 4WD Crawler Truck Black Clipless Body

TRX-4® Ford® F-150® combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a detailed clipless body. TRX-4 Ford F-150 is a leaner, performance-focused truck designed for increased climbing versatility. Sporting top-of-the-line Ranger XLT trim with chrome trim and chrome mag wheels, TRX-4 Ford F-150 elevates your off-road adventures with style.

TRX-4 Ford F-150 delivers scale looks with bright chrome bumpers, side trim, and side markers. The highly detailed two-tone grille, wipers, and door handles combine with clear windows to give the truck maximum scale authenticity.

Geared for raw torque, the single-speed transmission sheds valuable weight from the TRX-4's chassis for better weight distribution. Steel gears provide Traxxas-Tough durability and virtually maintenance-free operation.

Full-time locked front and rear axles transform the motor's torque into unstoppable climbing action. With no slippage possible, all four wheels claw with equal traction, powering TRX-4 F-150 over the toughest obstacles.

FEATURES:

• Officially Licensed 1979 Ford® F-150®Ranger XLT Body
• Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
• LED-ready headlights and tail lights
• Authentic decals
• Full Nylon composite wheel wells and floor pans
• Clipless Body mounting
• Clipless design for smooth body appearance
• Rugged internal body cage for added rigidity
• Body details mount directly to internal frame
• Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
• Two stage low voltage protection (LVD)
• Titan® 550 Motor
• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precise preset gear mesh adjustments
• Motor retention separate from gear mesh
• TQ™ 2.4 GHz 2-Channel Radio
• Ergonomic transmitter with internal antenna
• Traxxas 6519 3-channel micro receiver with fail-safe security
• Patented o-ring sealed watertight receiver box keeps the receiver dry
• Extended Wheelbase Chassis
• Long 336 mm wheelbase for improved stability
• Full-length 1.5 mm thick steel frame rails
• Bumpers adjust fore and aft
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• Driveline
• Full-time shaft driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Spool-locked front and rear axles
• Steel gear transfer case
• Transmission
  • Single-speed with steel gears
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual x-ring shaft seals
• Wheels and Tires
  • 1.9″ chrome mag wheels wheels with hub inserts
  • Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Sealed Ball Bearings
• Hex Hardware with Rust-Resistant Black Oxide Coating
• Requires Battery and Charger (Sold Separately)

SPECIFICATIONS:

• Type: Trail Truck / Crawler
• Skill Level: 1
• Chassis: Extended steel ladder frame
• Scale: 1/10
• Weight: 5.79 lb (2.63 kg)
• Length: 22.30 inches (566 mm)
• Width: 9.78 inches (249 mm)
• Height: 9.47 inches (241 mm)
• Track: 9.78 inches (249 mm)
• Wheelbase: 13.23 inches (336 mm)
• Center Ground Clearance: 3.14 inches (80 mm)
• Driveline: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Spool (no differentials)
• Gear Pitch: 32 pitch
• Steering Servo: 2075X metal gear, digital high-torque waterproof
• Radio System: TQ™ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm

INCLUDES:

• TRX-4 trail truck
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQ 2.4 GHz radio system
• High quality maintenance tools

Needed to complete:

• Batteries: TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries
• Charger: The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
