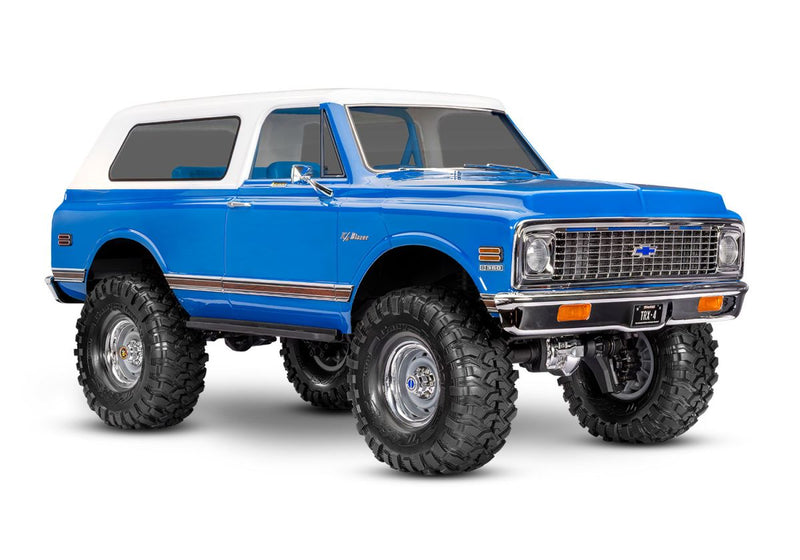

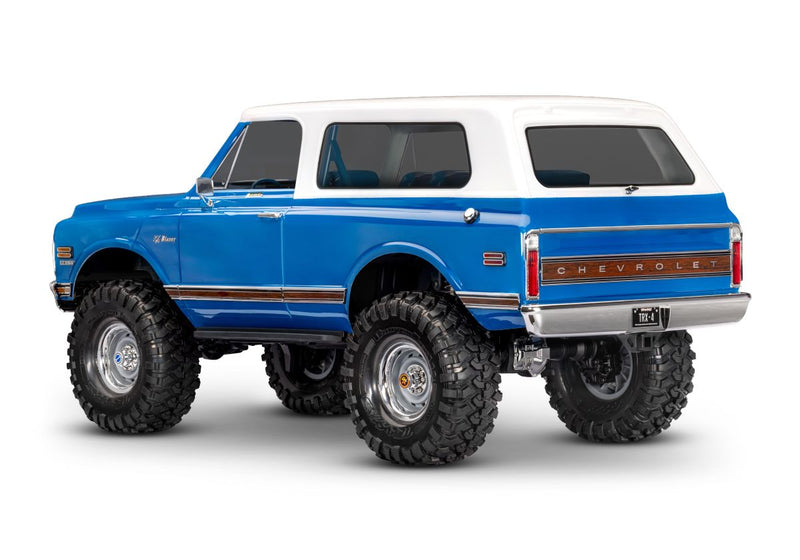

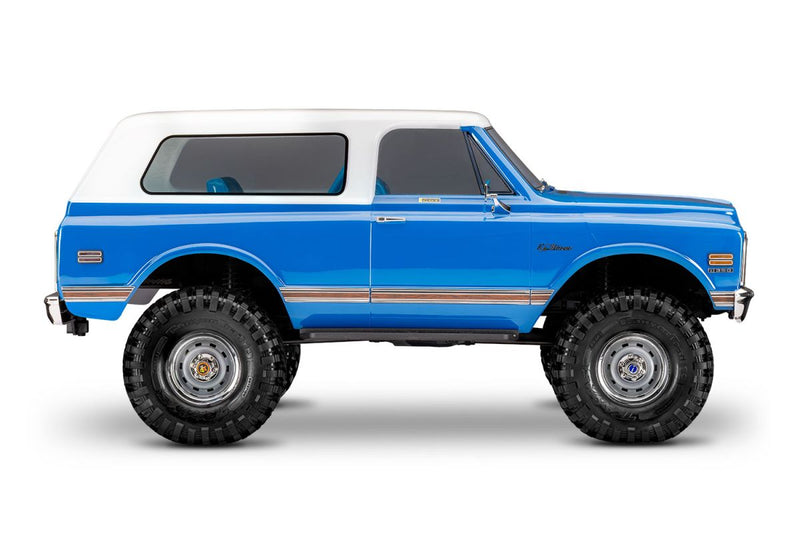

Traxxas 91076-4 Blue TRX-4 Chevrolet Blazer with Interior

Introduced in 1969, the Chevrolet® Blazer has become an off-road legend. Traxxas honors the rich history of the Blazer with a beautifully detailed 1972 Blazer clipless body on the renowned TRX-4® chassis. Outfitted with clear windows and a full interior, replica wheels, chrome grille, and a full complement of scale details, TRX-4 Blazer combines iconic style with TRX-4 capability.

TRX-4 1972 Chevrolet Blazer sets a new standard for scale authenticity with a beautiful replica body. Authentic chrome accents and molded inserts replicate the full-size truck in minute detail with clear windows to view the highly detailed interior.

TRX-4 Blazer's clipless body combines clean flowing lines with secure latching convenience. Hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds. The interior mounts securely inside the body and requires no extra steps to swap batteries.

Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. To achieve the same clearance with straight axles, the tires would have to be over an inch taller than the tires on TRX-4 Blazer.

Traxxas allows you to lock and unlock both the front and rear differentials remotely from your transmitter. New sleeved micro cables control the differential action for scale appearance, without limiting suspension articulation.

When the going gets tough, engage low range on the TQi transmitter for incredible 4WD pulling torque. Shift into high range for blasting down the trail. TRX-4 Blazer adapts to any situation or driving style.

FEATURES:

• Officially Licensed 1972 Chevrolet Blazer Clipless Body with Interior
• Clipless body holds tight on the trail, but releases in seconds
• Smooth body lines uninterrupted by body clips

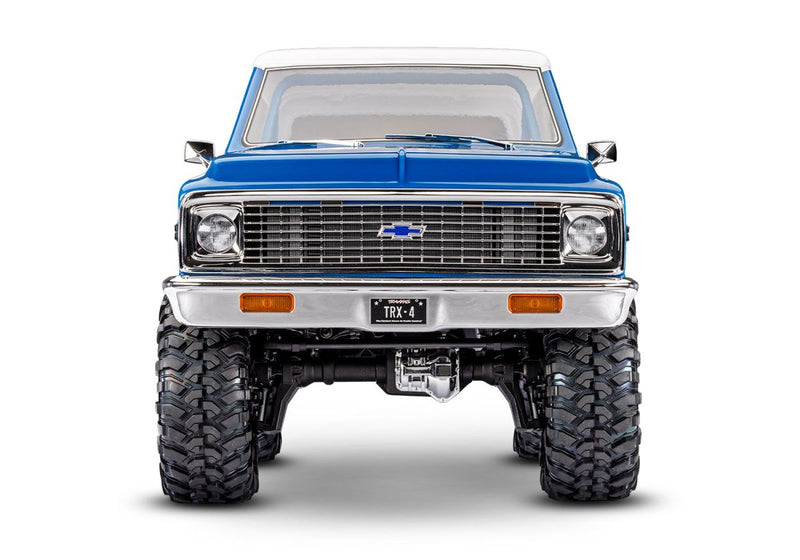

• Scale details: grille, chrome bumpers, side mirrors, chrome side trim, and wipers

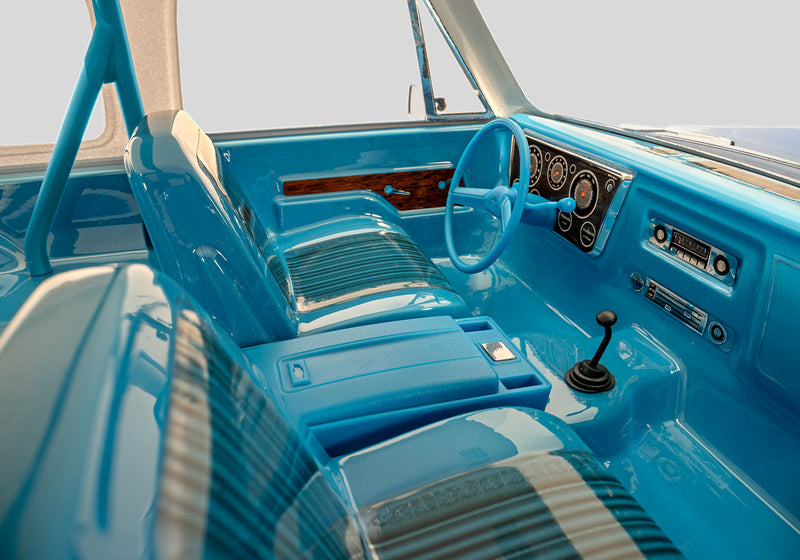

• Interior with steering wheel, center console, shifter, and authentic decals
• Clear windows
• Full wheel wells and floor pans
• Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
• Five drive profiles
• Sport Mode — forward / brake / reverse
• Race Mode — forward / brake / no reverse
• Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
• Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
• Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage latitude 6–7 cell NiMH, 2–3s LiPo
• Titan® 550 Motor
• Powerful Titan 21T reverse rotation motor with internal cooling fan
• Precision, preset gear mesh adjustments
• Motor retention separate from gear mesh
• Portal Axles
• Increase ground clearance
• Eliminate torque twist
• Steel gears
• Improve axle geometry and reduce strain on driveshafts
• TQi™ 2.4 GHz Radio System
• 4-channel transmitter
• 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Compatible with optional Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
• Automatically stores and loads settings for up to 30 Traxxas Link enabled models
• Exclusive Cruise Control feature for extended trail driving
• Patented waterproof receiver box with easy-access plug
• Rigid Steel Frame
• 1.5 mm thick steel frame rails increase torsional rigidity
• Adjustable wheelbase and shock tower positions
• Rugged rock rails adjust for width
• Wire routing clips integrated into frame rails
• Innovative Battery Compartment
• Hinged battery strap allows quick and easy battery access
• No pins to lose
• Accommodates different height batteries
• Accepts full-size long battery packs
• Integrated compartment accepts smaller 1/16 scale batteries
• Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
• Driveline
• Full-time shaft driven 4-wheel drive
• Tough 6 mm stub axles
• Steel front CV driveshafts
• Hardened steel rear axle shafts
• Remote locking steel gear differentials with cable-actuation
• Steel transfer case gears
• Transmission
• Two speed high/low range with remote shifting
• Dual horizontal shafts
• Twin friction plate slipper clutch
• Easily removed for servicing
• Steering
• Chassis mounted 2075X metal gear digital servo
• Superior 45° steering angle
• Direct steering (no servo saver)
• Steering geometry corrected for bump steer
• Suspension
• Front — 3 link with panhard
• Rear — triangulated 4 link
• Heavy-duty rod ends with steel hollow balls
• 5 mm diameter steel link rods with 4 mm threaded ends
• Aluminum GTS Shocks
• Oil-filled coilover GTS shocks
• Silver-anodized aluminum bodies
• Threaded bodies with collars easily adjust ride height
• Silky smooth damping for the toughest trails
• O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
• 1.9" replica chrome wheels
• Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
• Trail tuned S1 rubber compound
• 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating

SPECIFICATIONS:

• Type: Trail Truck / Crawler
• Skill Level: 1
• Scale: 1/10
• Weight: 7.43 pounds (3.37 kg)
• Length: 20.62 inches (524 mm)
• Width: 9.78 inches (249 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)
• Height (overall): 10.05 inches (255 mm)
• Wheelbase: 12.28 inches (312 mm)
• Center Ground Clearance: 3.14 inches (80 mm)
• Driveline: Shaft-driven 4WD
• Transmission: 2-speed high/low, remote shifting
• Gear Pitch: 32 pitch
• Steering Servo: 2075X metal gear, digital high-torque waterproof
• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
• Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm
• Motor:
  • Name: Titan® 21T Reverse Rotation
  • Type: High-torque brushed motor
  • Weight: 8.47 ounces (240 g)
  • Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
  • Diameter: 1.53 inches (39 mm)
  • Shaft Size: 3 mm
  • Connector Type: Bullet
• ESC:
  • Name: XL-5™ HV
  • Type: Brushed
  • Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
  • Weight: 2.60 ounces (74 g)
  • Motor Connectors: Bullet
  • Battery Connectors: Traxxas High-Current Connector
  • Power Wire: 14 gauge

INCLUDES:

• TRX-4 Scale and Trail crawler
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High quality maintenance tools

Needed to complete:

• Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries
• Charger: The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
