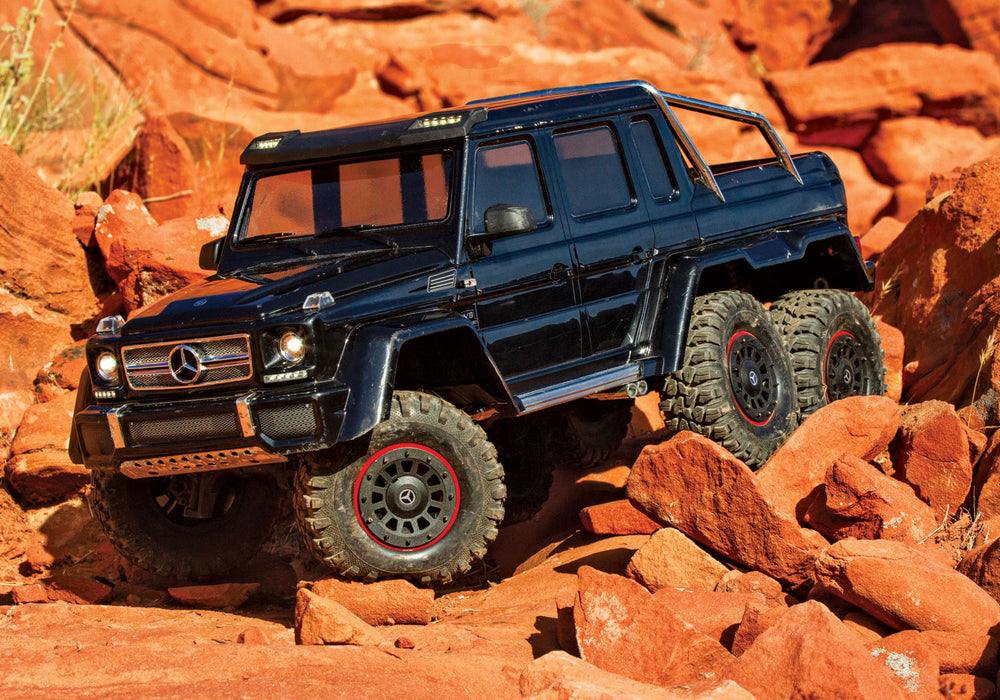

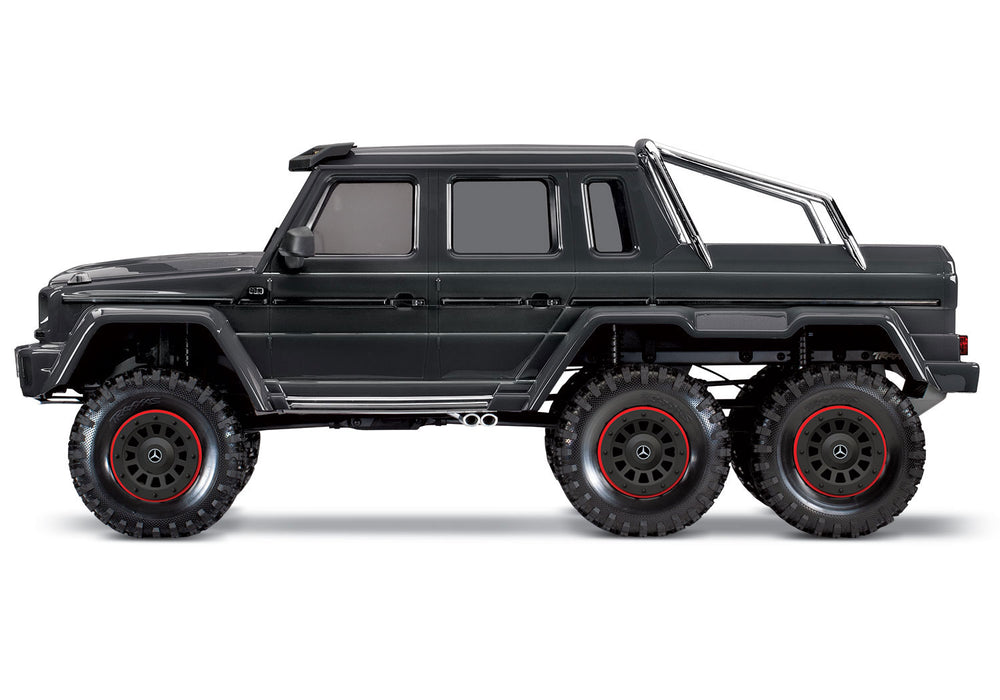

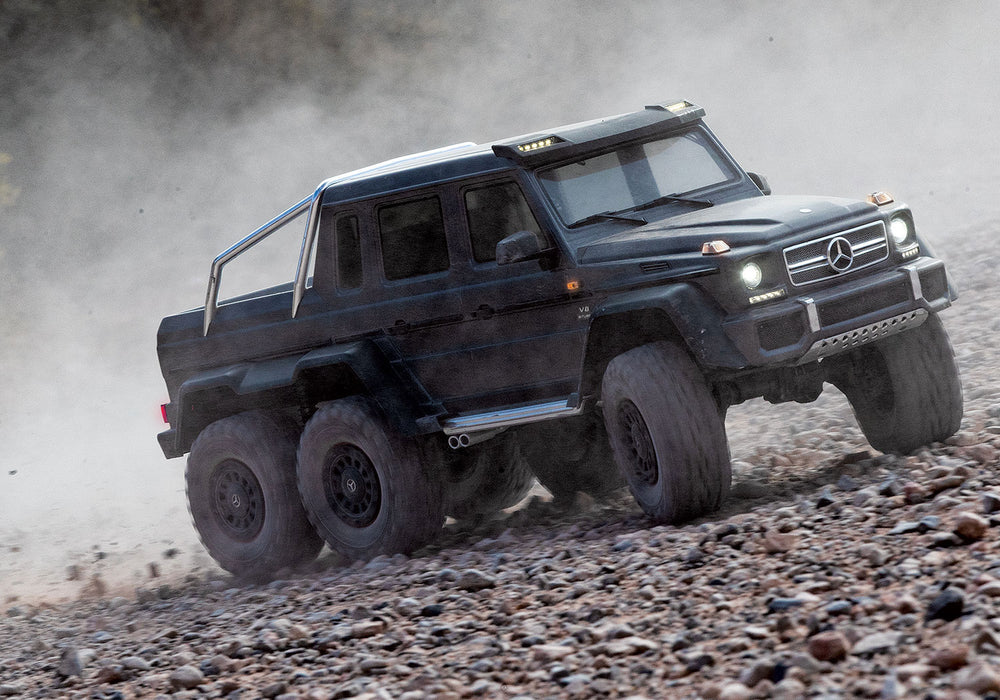

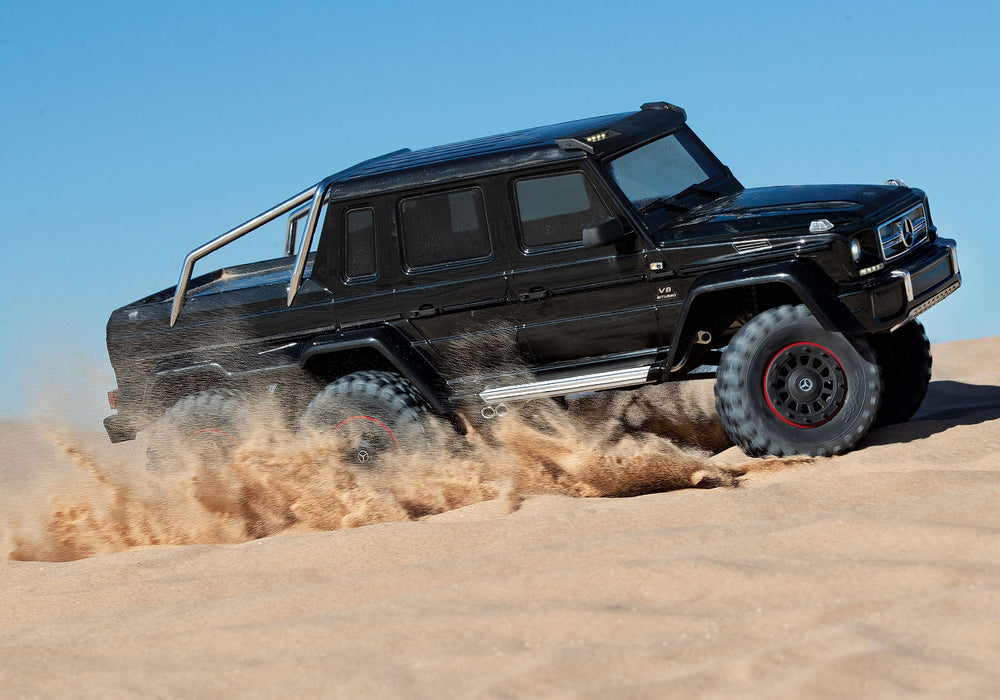

Traxxas 88296-4 Black RTR TRX-6 6x6 Mercedes-Benz G 63
The Mercedes-Benz G 63 AMG 6x6 represents a singular vision to create the boldest and toughest all-terrain vehicle ever. Traxxas captures the spirit and no-compromise approach of the Mercedes-Benz® G 63 AMG 6x6 with an officially licensed detailed scale replica built on the new TRX-6® platform. Six drive wheels, three T-Lock™ remote-locking differentials, portal axles, high/low transmission, 6 aluminum long-travel shocks, and a stunningly accurate body with brilliant LED lighting make this the most advanced and capable RC crawler ever to hit the trail.

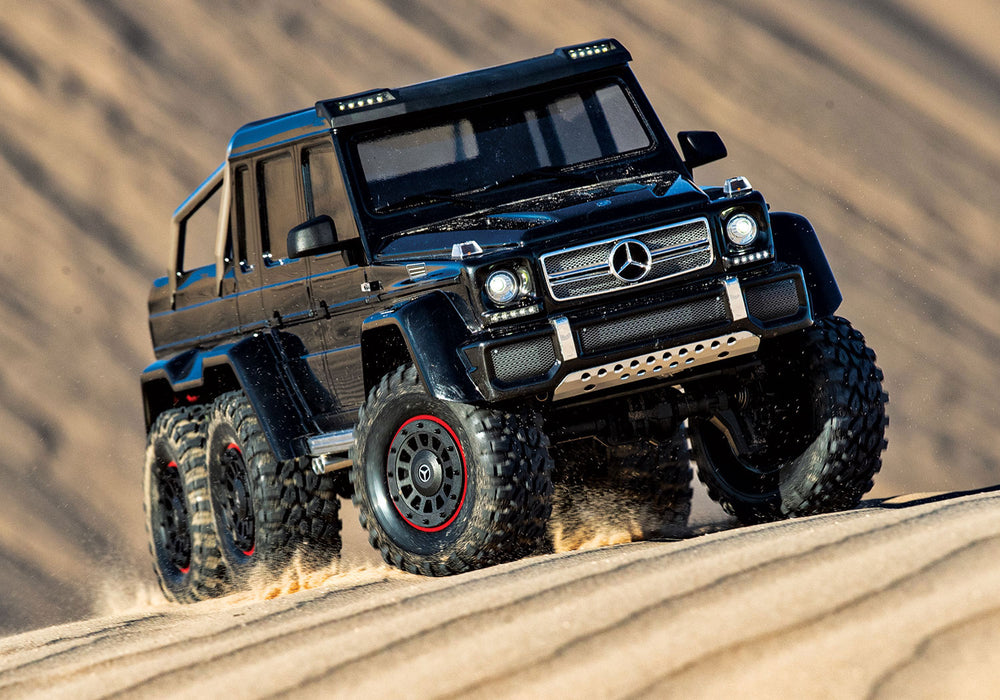

A fully independent intermediate axle puts an extra set of driving wheels where you need them most to power over obstacles that would otherwise be impossible. 6-wheel drive also allows greater traction to attack steeper inclines and more grip over loose and rocky surfaces.

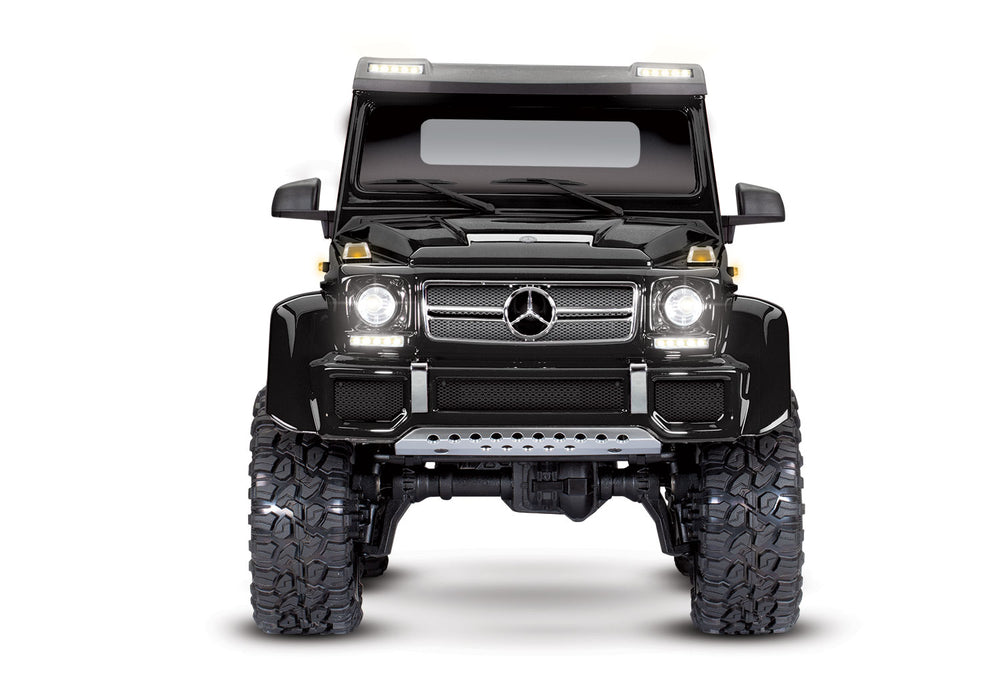

The TRX-6 Mercedes-Benz G 63 AMG 6x6 faithfully reproduces one of the most exclusive and recognizable all-terrain vehicles ever created. Chrome accents, molded trim, and finely detailed lighting elements highlight the rich metallic paint. Traxxas’ uncompromising attention to detail elevates the TRX-6 to the ultimate expression of beauty and brawn.

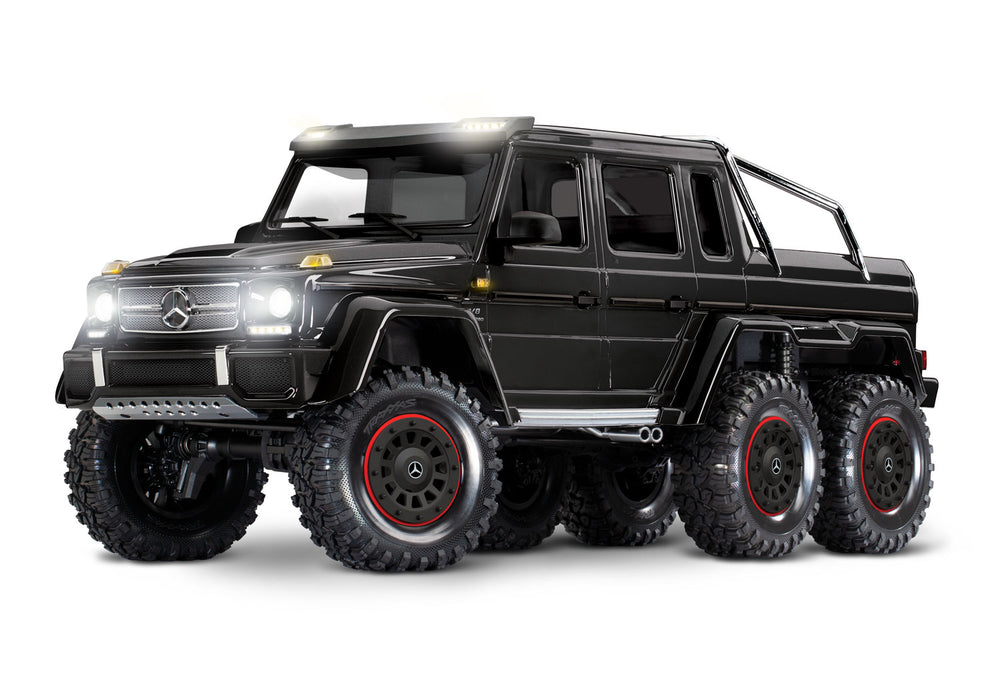

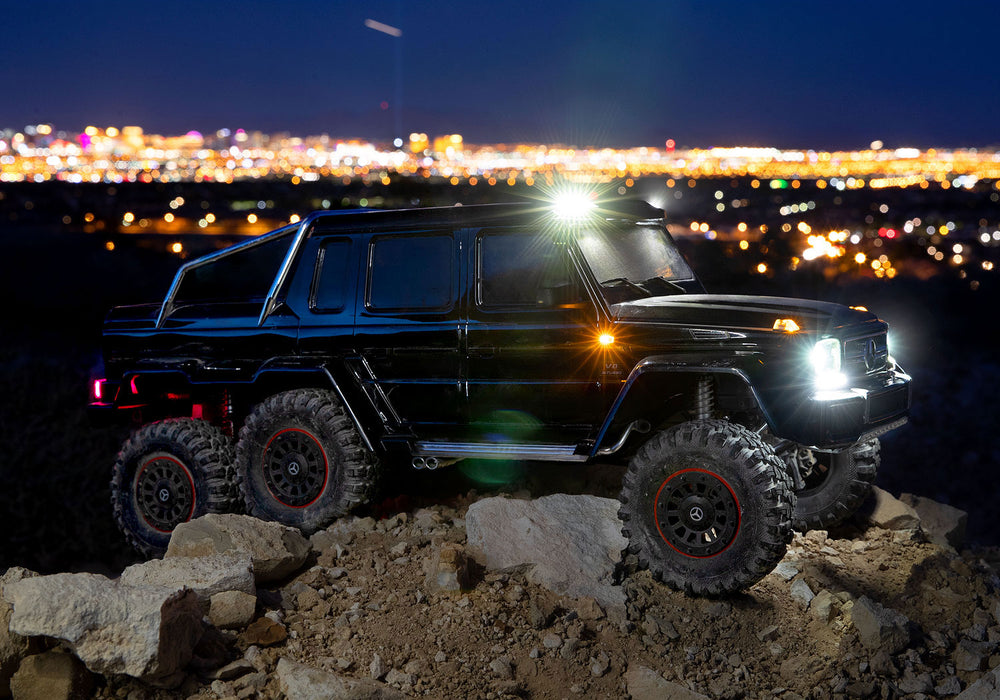

Rugged and fully-waterproof, the preinstalled LED lighting blazes a path through the darkest night. Accurate scale details abound in the finely crafted headlights, taillights, and side marker lights. Even the roof visor is fitted with brilliant LED lighting. A dedicated power supply regulates the voltage for bright, consistent, and efficient lighting.
FEATURES:
- Officially Licensed Mercedes-Benz® G 63® AMG 6x6 Body
- Scale details: chrome grille, chrome running boards, side mirrors, side trim, windshield visor, door handles, wipers, and dual side exhaust
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Chrome roll bars
- Chrome front and rear skid plates
- Installed LED Light Kit
- Includes headlights, tail lights, roof lights, and side markers
- Sealed waterproof design
- Color-coded power distribution block for easy and secure connections
- Traxxas LED lighting module
- Regulated to provide consistent and reliable power output
- Eliminates overheating, glitching, and other electronics issues
- Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH and 2–3s LiPo
- Two stage low voltage protection
- Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precise, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

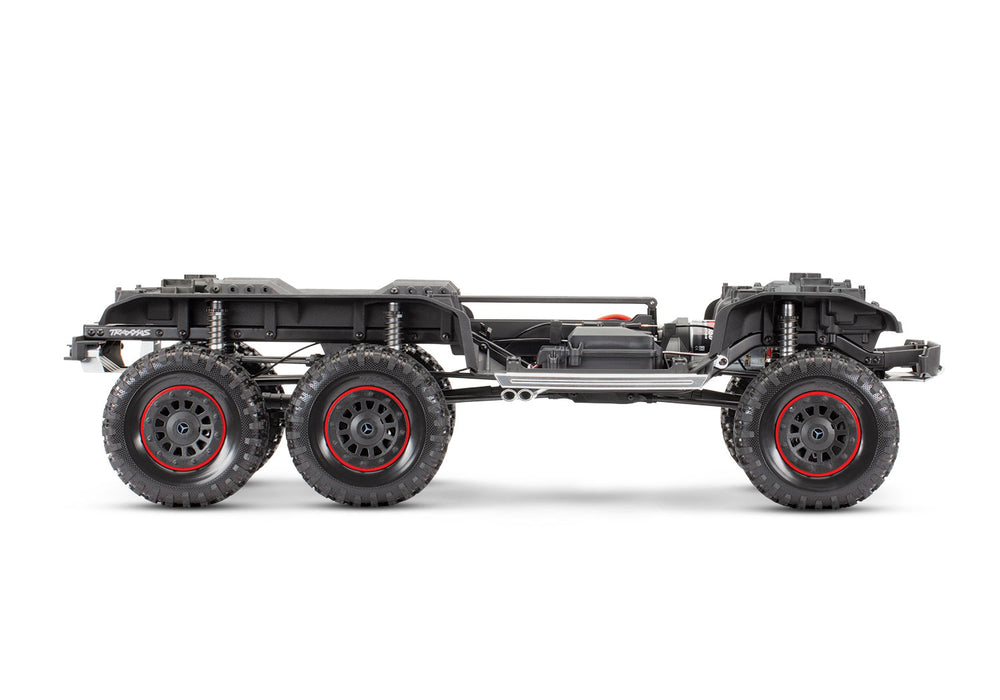

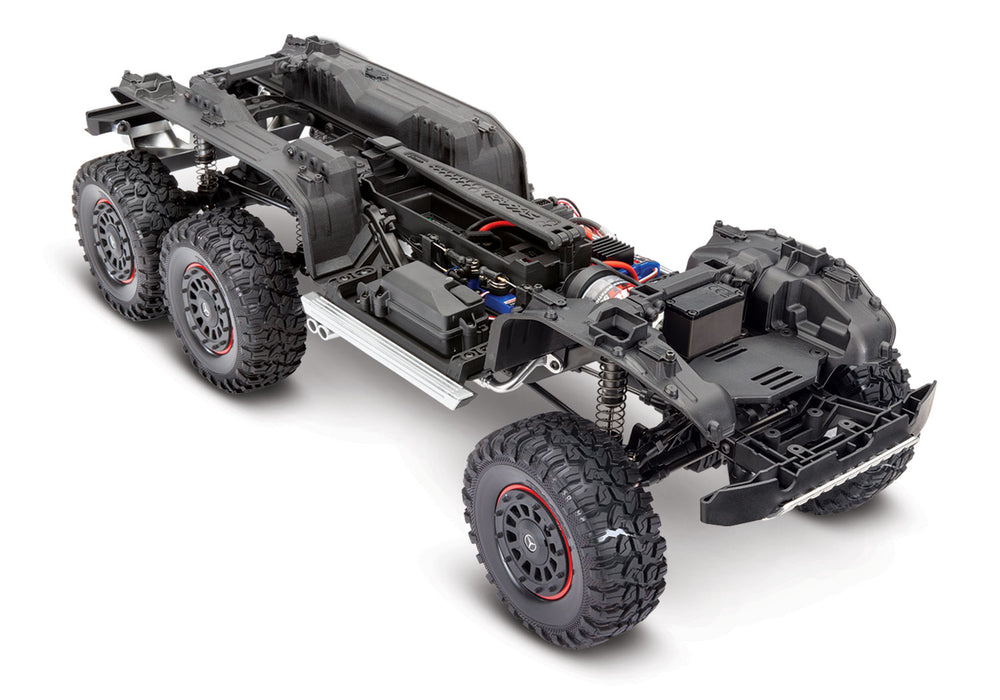

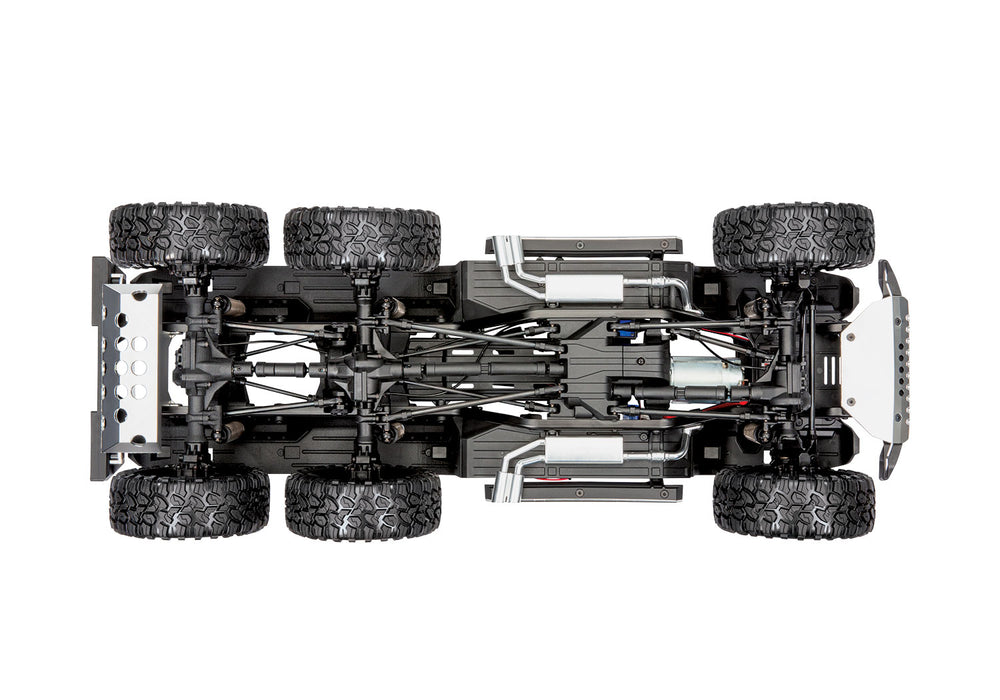

- Innovative Chassis Design
- 1.5 mm thick steel frame rails increase torsional rigidity
- Extended wheelbase for added stability on inclines
- Intermediate drive axle to reduce high-centering
- Tough reinforced bumpers with integrated skid plates
- Chrome running boards adjust for width
- Wire routing clips integrated into frame rails
- Driveline
- Full-time shaft driven 6-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel-gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Transmission
- Two-speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Dual triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter lower steel link rods with 4 mm threaded ends
- Wheels and Tires
- 2.2" Beadlock-style wheels with hub inserts
- Unique 2.2" all-terrain tires with trail-tuned foam inserts
- Trail-tuned S1 rubber compound
- 12 mm steel hex
- Transmitter
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready 6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
SPECIFICATIONS:
- Type: Trail / Crawler
- Skill Level: 1
- Scale: 1/10
- Length: 25.61 inches (651 mm)
- Track / Width: 9.78 inches (249 mm)
- Height: 10.78 inches (274 mm)
- Weight: 8.8 pounds (3.99 kg)
- Wheelbase: 17.9 inches (454 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Transmission: 2-speed high/low, remote shifting
- Center Ground Clearance: 3.14 inches (80 mm)
- Gear Pitch: 32
- Driveline: Shaft-driven 6WD
- Differential Type: 4-gear, remote locking
- Steering Servo: 2075X metal gear
- Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
- Battery Tray: 159 mm L x 47 mm W x 23/26 mm H
- Motor:
- Name: Titan® 550 21T Reverse Rotation
- Type: High-torque brushed motor
- Weight: 13.76 ounces (390 g)
- Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
- Diameter: 1.53 inches (39 mm)
- Shaft Size: 3 mm
- Connector Type: Bullet
- ESC:
- Name: XL-5™ HV
- Type: Brushed
- Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
- Motor Connectors: Bullet
- Battery Connectors: Traxxas High-Current Connector
- Power Wire: 14 gauge
INCLUDES:
- TRX-6 trail truck
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
Needed to complete:
- Batteries: TRX-6 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries
- Charger: The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance
- AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
