Traxxas 82216-4 TRX-4 Chassis Kit with Clipless Body Mount

TRX-4® set the standard for off-road versatility with its radical design and rugged durability. The TRX-4 chassis kit combines the same innovative features as the RTR vehicle with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remotely locking differentials. All the parts are organized neatly in labeled bags with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

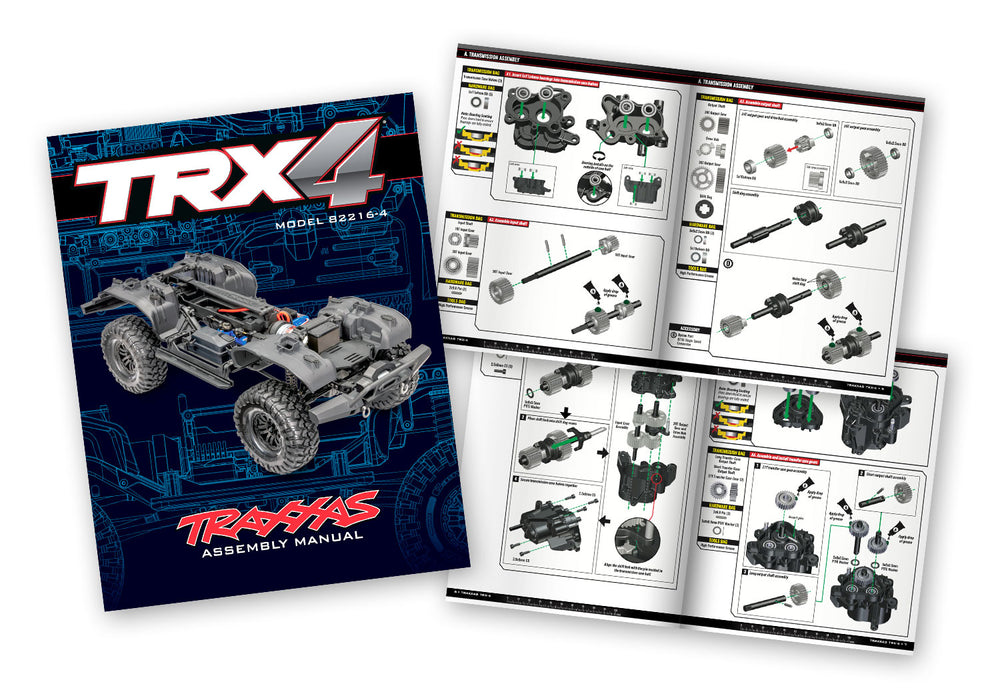

The TRX-4 Chassis Kit includes a full-color instruction book that’s easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears.

The TRX-4 Chassis Kit arrives ready to assemble with a full-color instruction guide, TQi™ 4-channel 2.4 GHz radio system, and complete waterproof electronics including servos, XL-5™ HV ESC, and Titan® 21T motor. Key parts like shocks and suspension links come pre-assembled to make building easy and fun.

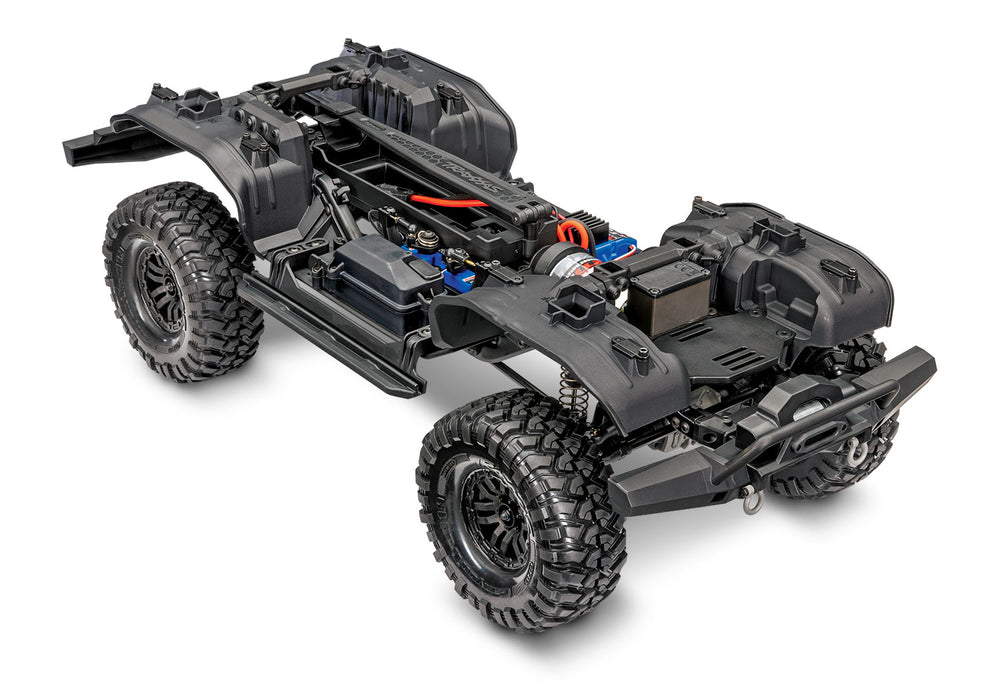

Clipless body mounting makes it easy to customize your TRX-4 kit with any accessory Traxxas 312 mm wheelbase body (sold separately). The hidden latching system provides clean, flowing lines for maximum scale realism. On the trail the clipless body holds tight when you need it, but releases in just seconds to access the chassis.

FEATURES:

• Easy to follow full-color assembly manual
  • True-to-scale part illustrations and ruler charts
  • Helpful assembly tips and clear illustrations
• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
  • Traxxas EZ-Set® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
  • Two stage low voltage protection (LVD)
• Powerful Titan™ 21T reverse rotation motor
  • Internal cooling fan
  • Precise, preset gear mesh adjustments
  • Motor retention separate from gear mesh

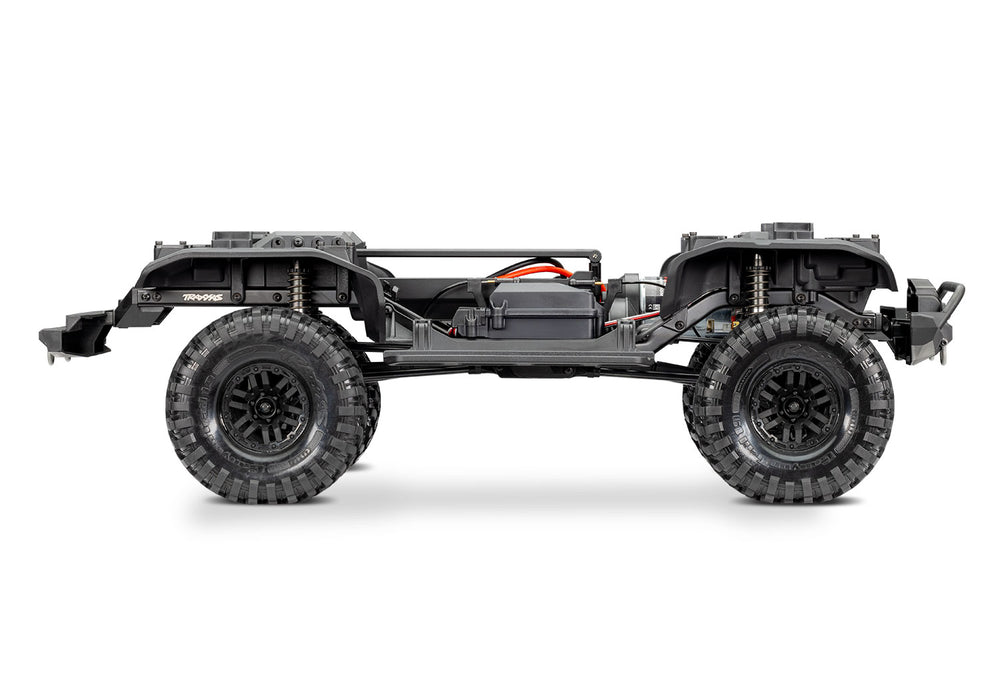

• Rigid Steel Frame
  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
  • Adjustable rear shock tower positions
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer

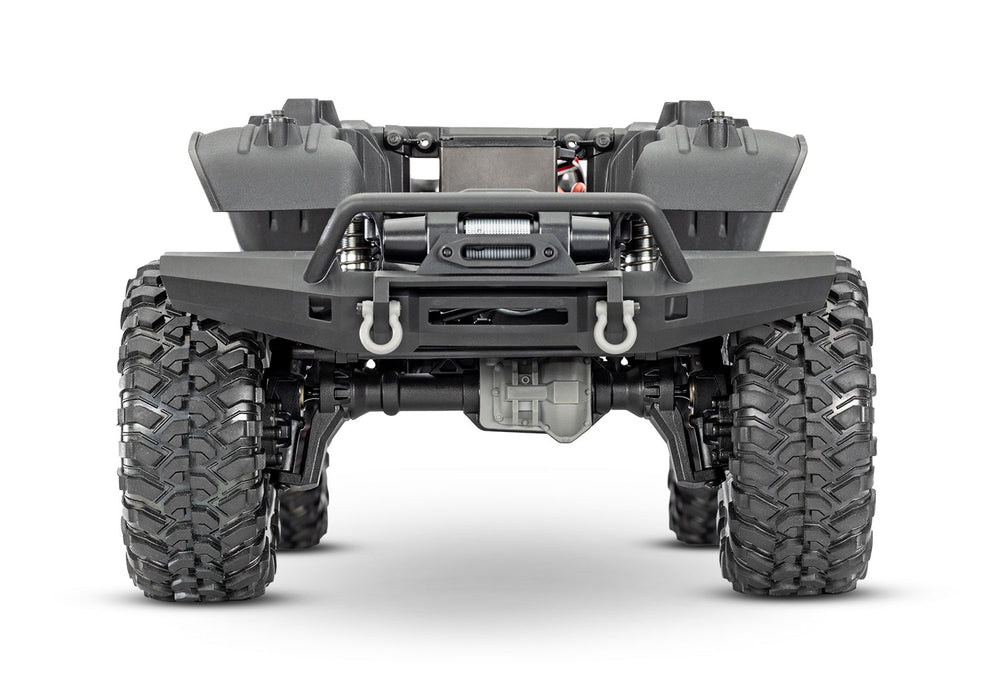

• Portal Axles
  • Increase ground clearance (3.14″)
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts
• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case

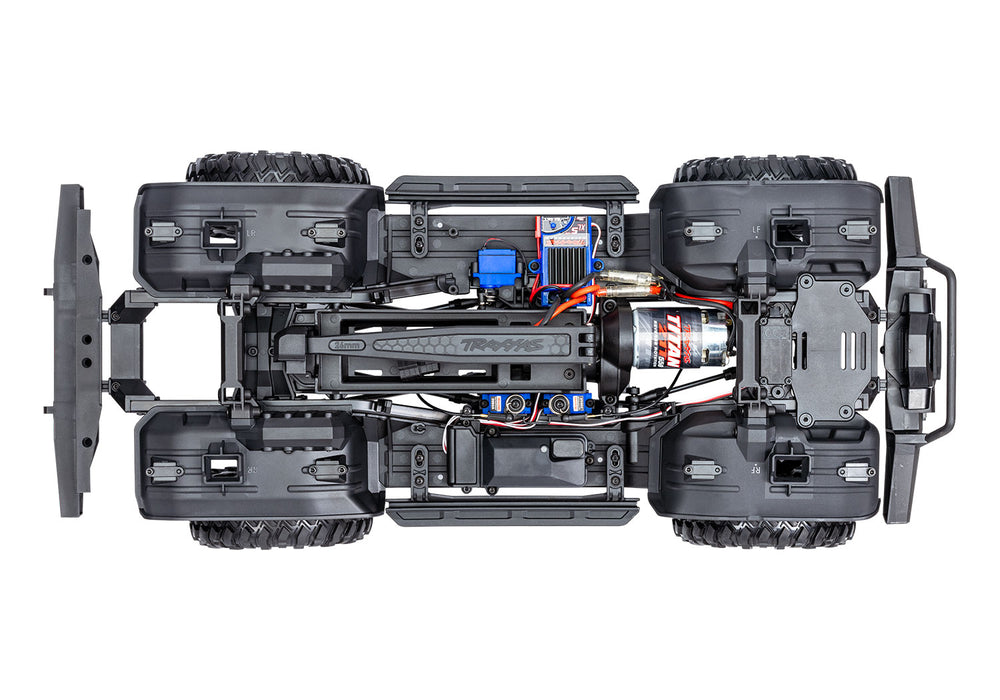

• Innovative Battery Compartments
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary battery mount over front axle for forward weight bias
• Two speed high/low range transmission with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Pre-assembled aluminum GTS Shocks
  • Coilover GTS shocks exclusive to TRX-4 chassis
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
  • Shock oil included in kit
• Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Pre-assembled heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Wheels and Tires
  • 1.9″ Canyon Trail tires with trail-tuned foam inserts
  • Tough black scale wheels
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
  • Tire glue required
• TQi™ 2.4 GHz 4-channel transmitter
  • Traxxas Link™ enabled
  • Telemetry ready 6533 5-channel micro receiver with failsafe
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • High 13 ms frame rate and near-zero latency for responsive control
• Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
• Sealed ball bearings
• Hex hardware with rust-resistant black oxide coating

SPECIFICATIONS:

• Length: 20.57 inches (523 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)
• Ground Clearance: 3.14 inches (80 mm)
• Weight: 102.72 ounces (2.91 kg)
• Height: 10.47 inches (266 mm)
• Wheelbase: 12.28 inches (312 mm)
• Shock Length (front): 3.54 inches (90 mm)
• Shock Length (rear): 3.54 inches (90 mm)
• Approach Angle: 63.82°
• Departure Angle: 43.22°
• Breakover Angle: 59°
• Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)
• Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)
• Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
• Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
• Wheel Hex: 12 mm
• Speed Control: XL-5™ HV ESC
• Motor (electric): Titan® 21T reverse rotation
• Differential Type: 4 gear, remote locking
• Transmission: 2-speed high/low, remote shifting
• Gear Pitch: 32
• Chassis Structure/Material: Steel ladder frame with Nylon composite cross members
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft-driven 4WD
• Steering: Chassis mounted 2075X metal gear servo
• Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
• Skill Level: 2
• Battery Tray (L/W/H): 159 mm (6.26″) x 47 mm (1.85″) x 23/26 mm (0.91″/1.02″)
• Motor Specs:
  • Type: High-torque brushed motor
  • Size: 550
  • Weight: 13.76 ounces (390 g)
  • Length: 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (39 mm diameter)
  • Turns: 21T reverse rotation
  • Voltage: 16.8 volts
• ESC Specs:
  • Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
  • Case Size: 1.23″ W x 2.18″ D x 1.04″ H
  • Weight: 2.6 ounces (74 g)
  • Motor Limit: 21-turns (550 size)
  • On Resistance Forward: 0.004 ohms
  • On Resistance Reverse: 0.004 ohms
  • Peak Current - Forward: 100 amps
  • Peak Current - Reverse: 100 amps
  • Braking Current: 60 amps
  • Continuous Current: 18 amps
  • BEC Voltage: 6.0 volts
  • BEC Current: 1 amp
  • Power Wire: 14 gauge / 5″
  • Input Harness Wire: 26 gauge / 14.5″
  • Transistor Type: MOSFET
  • PWM Frequency: 1700 Hz
  • Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
  • Thermal Protection: Thermal shutdown
  • Profile selection:
    • Sport Mode: 100% FWD, 100% brakes, 100% REV
    • Race Mode: 100% FWD, 100% brakes, no REV
    • Training Mode: 50% FWD, 100% brakes, 50% REV (Patented)
    • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
    • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
  • Single-button setup: Traxxas EZ-Set®

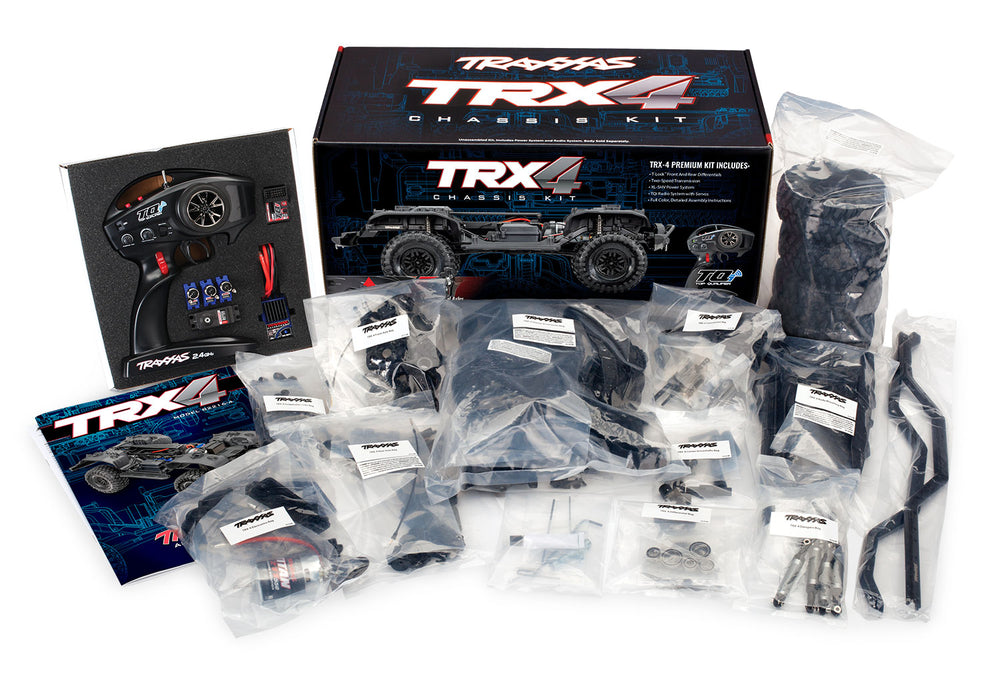

INCLUDES:

• T-Lock Front And Rear Differentials
• Two-Speed Transmission
• XL-5 HV Power System
• TQi Radio System with Servos
• Full Color, Detailed Assembly Instructions

Needed to complete:

• Batteries: TRX-4 accepts a wide variety of NiMH and LiPo batteries
• Charger: Traxxas EZ-Peak® charger is recommended for easy and fast charging performance (model 2971)
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
