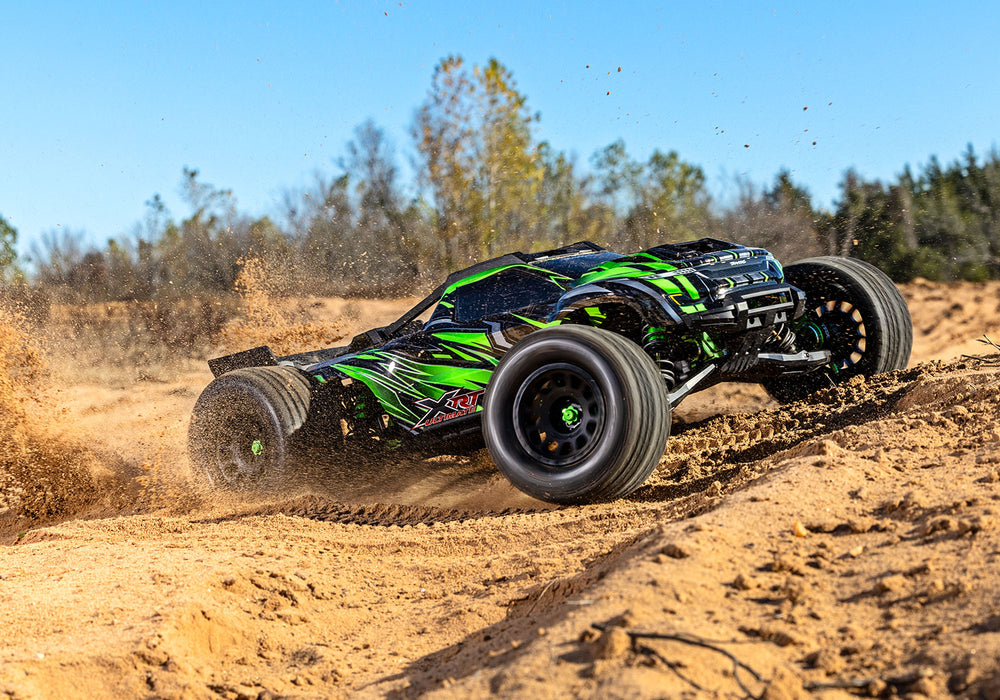

Traxxas 78097-4 Green XRT® Ultimate Race Truck

XRT® revolutionized the 8s experience by combining X-Maxx strength with race truck handling. XRT Ultimate takes it over the top with a full complement of high-strength aluminum upgrades in key performance areas. Outfitted with all-new belted Gravix™ tires, no other truck combines XRT Ultimate’s brutal 8s power and handling precision in a package this fun. Quantities of this very special XRT are extremely limited.

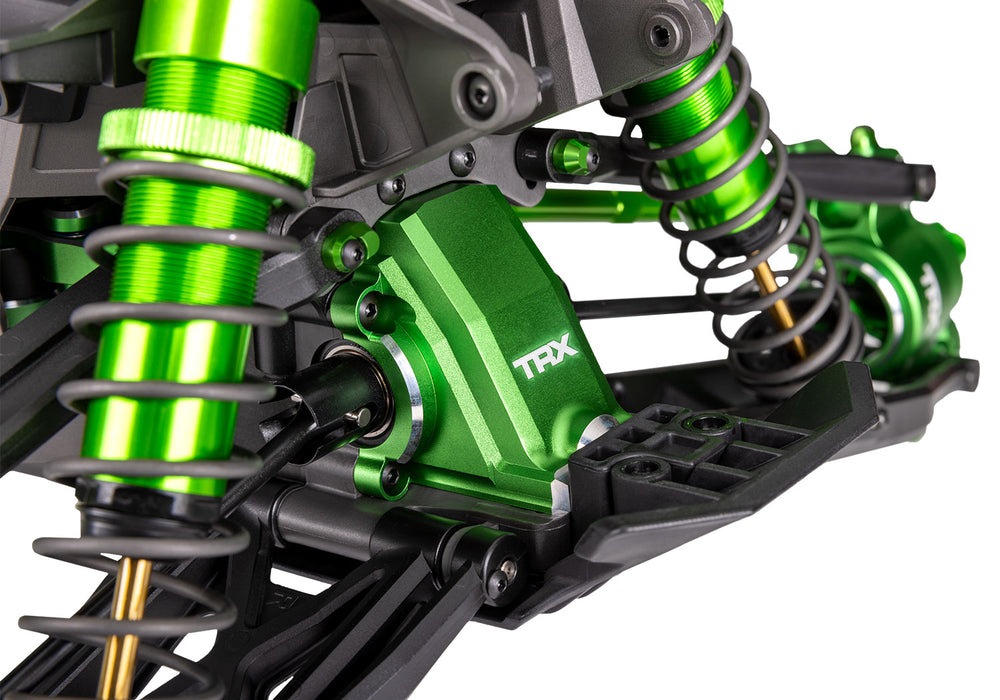

XRT receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of X-Truck™ strength and durability. XRT’s aluminum upgrades improve high-speed stability and precision while creating the toughest truck ever to wear the Traxxas name.

A Traxxas Link™ Wireless Module comes standard on XRT Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.

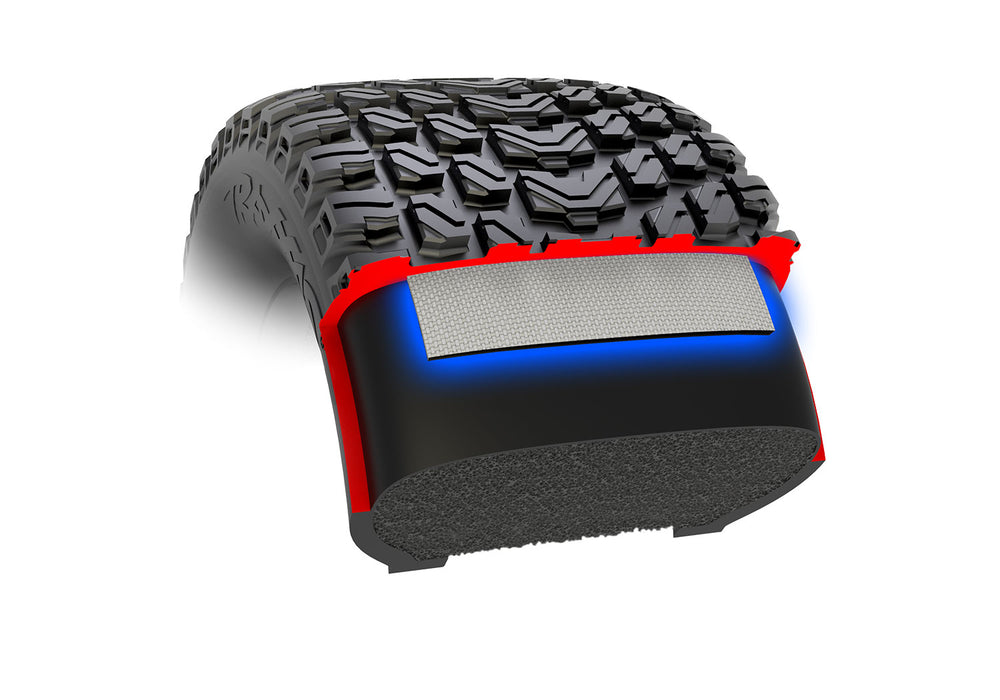

XRT Ultimate’s belted Gravix™ tires deliver game-changing performance on the track or in the wild. The directional tread pattern provides excellent traction and runs quieter than typical off-road tires. Lightweight belting in the carcass maintains the tire's shape for a larger contact patch, more grip, and responsive handling at any speed.

FEATURES:

• High-Performance Aluminum Upgrades
• 6061-T6 aluminum C-hubs
• 6061-T6 aluminum steering blocks
• 6061-T6 aluminum rear hub carriers
• 6061-T6 aluminum differential housings
• 6061-T6 aluminum motor mounts
• 6061-T6 aluminum wheelie bar wheels
• Aluminum motor washers
• VXL-8s™ Waterproof Electronic Speed Control
• Aggressive tuning for more power at any RPM
• Built-in cooling fan
• Machined heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Velineon® 1200XL Brushless Motor
• “Big Block” brushless motor
• 4-pole 1275 kV
• 5 mm output shaft
• Oversize aluminum heatsink for improved cooling
• Dual cooling fans
• Up to 60+ mph with Two 4s LiPo Batteries and Optional Overdrive Gears (sold separately)
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz 2-Channel Radio System with Factory-Installed Wireless Module
• Factory-installed telemetry sensors
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• X-Maxx-Spec® 8s Drivetrain
• Full-time shaft-driven 4-wheel drive
• Machined, hardened steel pinion and spur gear
• Heavy-duty steel CV driveshafts & axles
• Splined aluminum center driveshaft
• Fully machined aluminum stub axles
• Transmission
• Mod-1 steel pinion and spur gears
• Torque-Biasing Center Drive
• Maxx-Spec 8s Differentials
• Heavy-duty sealed 4-gear design
• Large scale steel ring and pinion gears
• Splined outdrives attached with external thru-bolt method
• Reinforced bulkhead and covers increase bearing support
• Rock-Solid Motor Mounting System
• Rigid aluminum motor mounts
• Precise preset gear mesh adjustments
• 4 keyed pins lock the motor in place
• Motor retention separate from gear mesh
• GTX Aluminum Race Shocks
• Machined aluminum threaded body
• Extra-large bore and capacity
• Ultra-smooth TiN-coated 5.2 mm damper shafts
• Lower seal cartridge includes integrated wiper seal combination
• Aluminum upper spring retainers
• Aluminum shock caps with pivot balls
• Lower spring perches bolted on
• WideMaxx® Suspension
• Extra-wide suspension arms
• Made from heavy-duty cold-weather composite
• Double-shear connections
• High-strength steel suspension pins with aluminum retainers
• 4 mm machined pivot balls
• TUBES 7075-T6 Aluminum front toe links
• Oversized wheel bearings

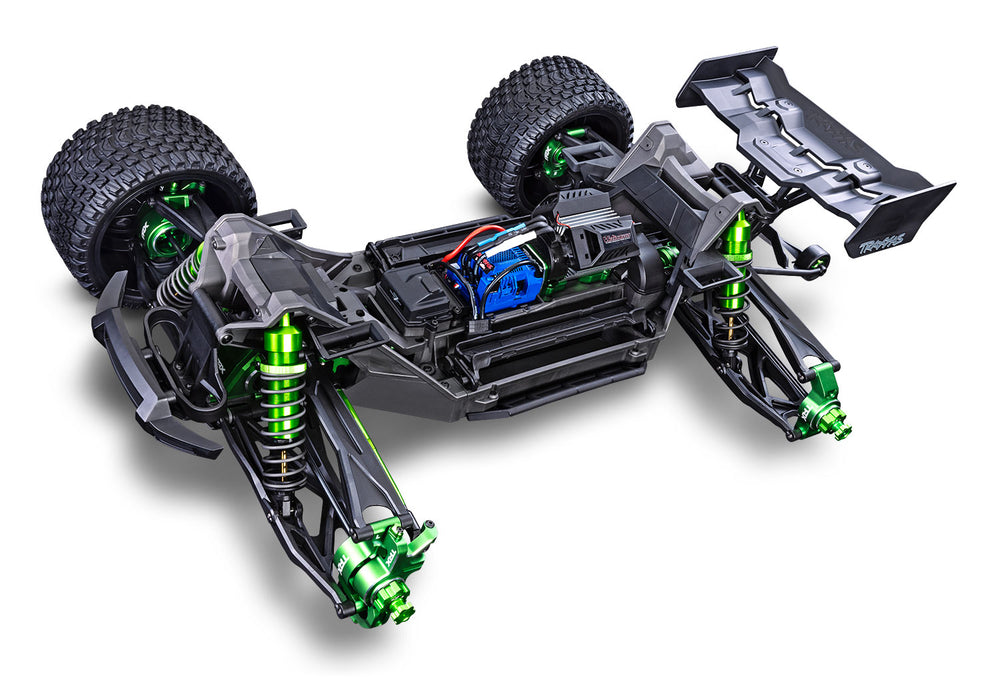

• Low-CG Chassis Design
• Modular chassis with interlocking bulkheads
• Low center of gravity for improved handling
• Flat bottom design
• Heavy-duty interlocking skid plates
• High strength buttressing on shock towers
• Dual snap-lock battery compartments
• Protects batteries from side impacts
• Allows secondary battery clip security
• Interlocking components for tight tolerances
• ProGraphix® Clipless Body
• Snaps in place in just seconds
• Secure body latches are easy to use
• Rigid internal frame
• Dual cold-air intakes
• Molded body reinforcements for tear-through protection
• Protective top skids
• Rugged high-downforce rear wing
• Heavy-Duty Bumpers
• Reinforced front bumper and rear wing support
• Absorbs impact forces while retaining shape
• Nerf bars for side impact resistance
• Heavy-duty wheelie bar with carry handle
• Wheels and Tires
• 7.4″ Gravix™ belted race tires
• Belted carcass virtually eliminates ballooning at high speed
• Low sidewall for sharp turn-in response
• Runs quieter than traditional off-road tires
• 4.0″ matte black XRT race wheels
• High-strength glue and bead design
• Huge 24 mm splined wheel hubs
• Steering
• 6061-T6 aluminum steering bellcranks
• Powerful 450 oz-in metal-gear steering servo
• Double-shear aluminum servo horn
• Heavy-duty servo saver spring
• Dirt evacuation channels

SPECIFICATIONS:

• Length (including wing): 31.41 inches (798 mm)
• Front Track: 23.43 inches (595 mm)
• Rear Track: 23.43 inches (595 mm)
• Ground Clearance: 1.93 inches (49 mm)
• Weight:
• 21.55 pounds (9.79 kg) - with body
• 24.39 pounds (11.09 kg) - with body & two 4s 6700 mAh LiPos
• Height:
• 10.15 inches (258 mm) - ride height
• 12.12 inches (308 mm) - full droop
• Wheelbase: 18.9 inches (480 mm)
• Shock Length (front): 6.79 inches (173 mm)
• Shock Length (rear): 6.79 inches (173 mm)
• Tires (Pre-Glued): Gravix™ Belted 7.4″ x 4.0″ (188 mm x 102 mm)
• Wheels: 4.3″ x 5.7″ (110 mm x 147 mm)
• Speed Control: Velineon® VXL-8s™
• Motor (electric): Velineon 1200XL Brushless
• with heat sink and dual fan shrouds
• Overall Drive Ratio: 20.6:1 (20/50 motor pinion and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch (Spur and Pinion): Module 1.0
• Chassis Structure/Material: Composite nylon tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Aluminum bellcrank
• Radio System: TQi™ 2.4 GHz 2-channel transmitter
• with factory-installed wireless module
• Servo: Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts)
• Top Speed: 60+ mph with two 4s LiPo batteries and optional overdrive gearing (sold separately)
• Skill Level: 5
• Battery Tray: 186 mm x 51 mm x 44 mm
• Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery (x2)
• MOTOR SPECS:
• Type: 1275 kV sensorless brushless
• Weight: 23.44 ounces (665 g)
• Length: 4.32 inches (110 mm)
• Diameter: 1.88 inches (48 mm)
• Connector Type: Traxxas 6.5 mm bullet connectors
• ESC SPECS:
• Input Voltage: 8s LiPo (max 33.6 volts)
• Case Size: 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm)
• Weight: 7.60 ounces (215.5 g)
• BEC Voltage: 6.0 volts
• BEC Current Continuous: 10 amps
• BEC Current Peak: 20 amps
• Motor Connectors: Traxxas 6.5 mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors
• Power Wire: 10-gauge Maxx Cable
• Ports: RX input, auxiliary fan, accessory port

INCLUDES:

• XRT Ultimate, Ready-To-Race® model with Traxxas Big Block™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• LiPo Batteries - Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997).
• LiPo Balance Charger with iD® - Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.
