Traxxas 77136-4 50th Anniversary Bigfoot X-Monster

X-Monster™ BIGFOOT® 50th Anniversary Commemorative Edition honors the rich history of Bob Chandler’s original monster truck with a unique gold & black clipless body and gold-anodized accessories. Each truck includes laser-etched aluminum number plates on the chassis and the body, along with a matching aluminum certificate of authenticity. Limited to only 1,975 numbered trucks, this legendary monster truck won’t last long.

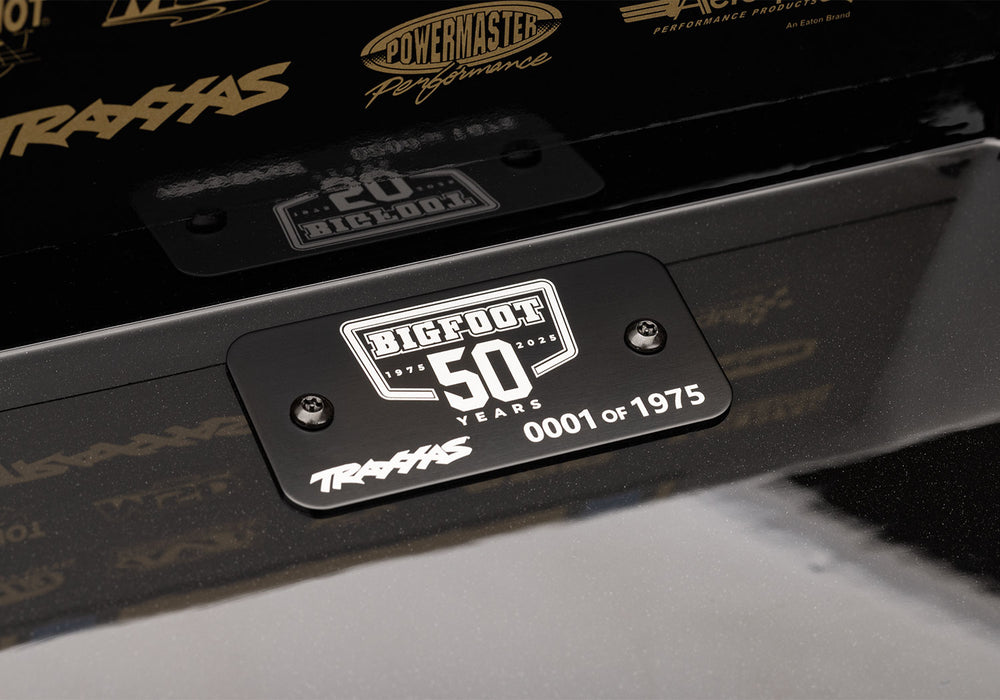

Traxxas commemorates the 50-year history of BIGFOOT with 1,975 numbered trucks, each with its own laser-etched aluminum plaque showing the serial number along with matching aluminum badges on the body and chassis. Commemorative bodies and gold accessories will not be sold separately.

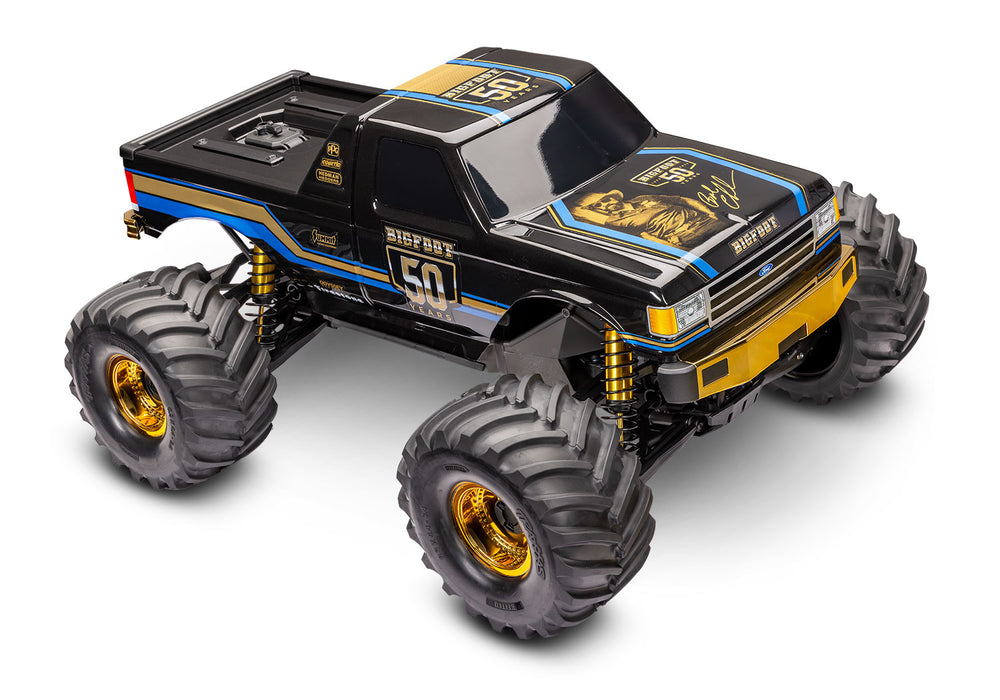

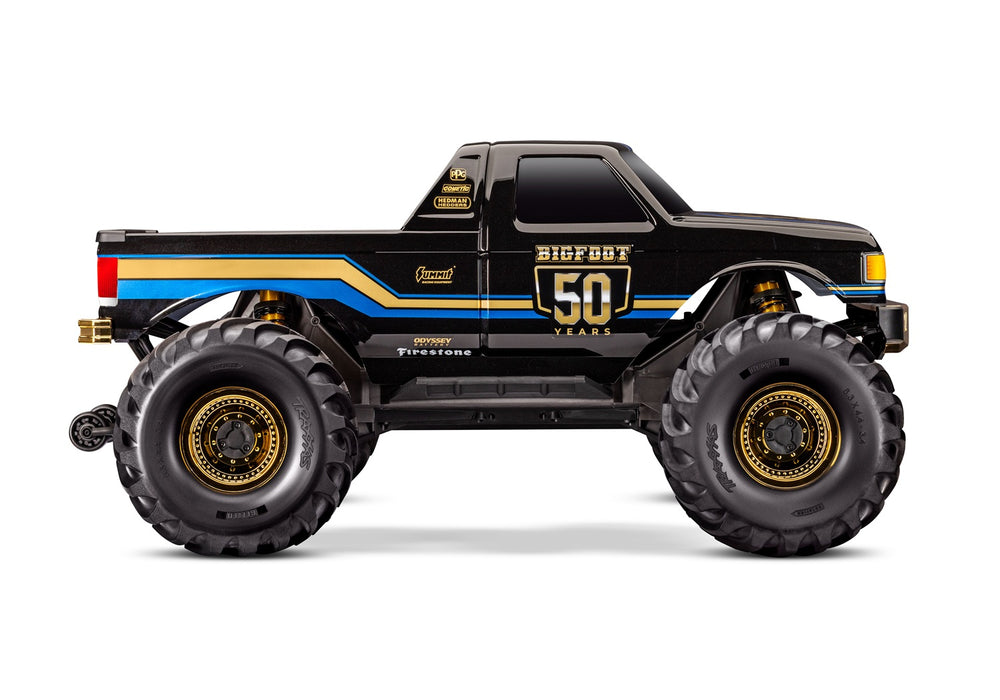

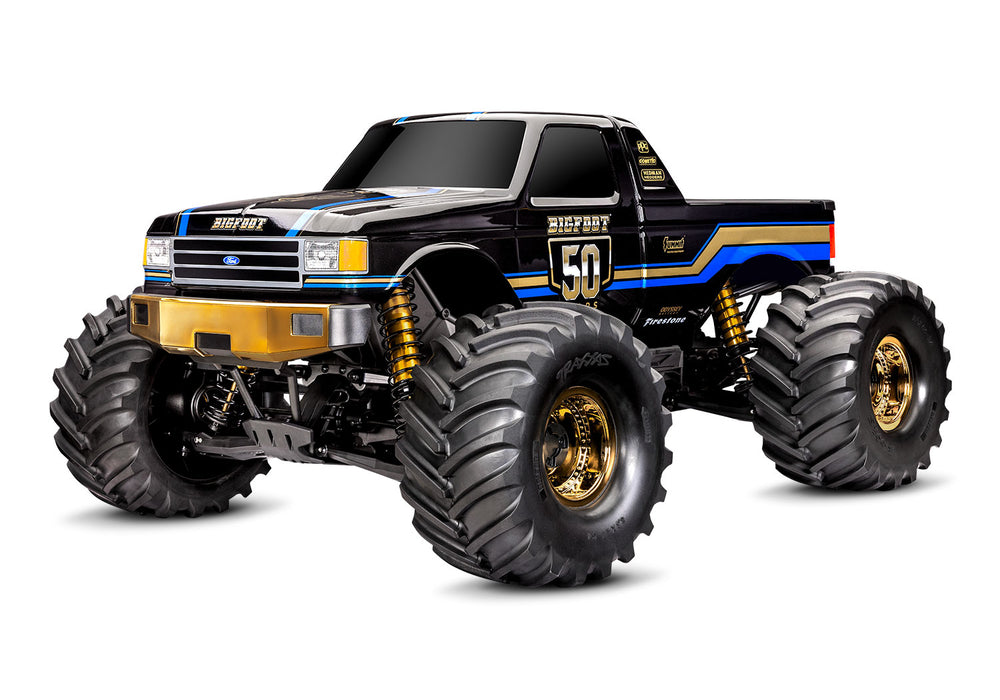

BIGFOOT 50th comes Ready-To-Race® with a commemorative 50th anniversary heavy-duty clipless body made from extra-thick 2 mm polycarbonate. Gold bumpers and wheels stand out against the brilliant black paint with a hidden latching system for clean lines and a secure hold.

BIGFOOT 50th includes exclusive gold-anodized shocks, axles, and motor heat sink. The bumpers and wheels also receive a matching gold finish for a unique look. Even the Velineon VXL-8s ESC is molded in black plastic to match the motor. These limited-edition parts come only on BIGFOOT 50th and will not be available separately.

Like “The Original Monster Truck,”® BIGFOOT 50th is Traxxas tough to its core. Based on the legendary X-Maxx, BIGFOOT 50th elevates strength and durability to the extreme with all the latest and greatest upgrades from the X-Monster Chassis. When toughness counts, nothing comes close to X-Monster.

FEATURES:

• Commemorative BIGFOOT 50th Anniversary Clipless Body
• Limited to 1975 units
• Unique black & gold paint
• Includes numbered commemorative plaque with matching body and chassis badges
• Heavy-duty 2 mm polycarbonate body
• Quick one-hand installation and removal
• Pivoting rear latch mechanism
• Reinforced for extra protection
• VXL-8s™ Waterproof Electronic Speed Control
• Unique all-black housing
• Built-in cooling fan
• Machined-aluminum heat sinks
• 10-gauge silicone wire
• Integrated protection circuits
• LED status lights
• Velineon® 1200XL Brushless Motor
• 4-pole 1275 Kv
• 5 mm output shaft
• Gold anodized-aluminum heat sink
• Dual motor cooling fans
• 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
• Traxxas Stability Management® (TSM)
• Helps prevents spinouts and loss of control
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
• Traxxas Link™ enabled
• 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity
• BEC Voltage and Motor Temperature Sensor installed
• 8s Driveline
• Steel pinion and spur gear
• Full-time shaft-driven 4-wheel drive
• Heavy-duty steel CV driveshafts
• Beefed-up steel differential output cups
• Splined aluminum center driveshaft
• Machined aluminum stub axles
• Torque-Biasing Center Drive™ absorbs shocks and distributes power to all four wheels
• Gold-anodized aluminum 24 mm splined wheel hexes
• Sealed, silicone fluid-filled diffs with large module ring and pinion gears
• Fixed Motor Mounting System
• Preset gear mesh adjustments
• No manual adjustments required
• Motor retention separate from gear mesh

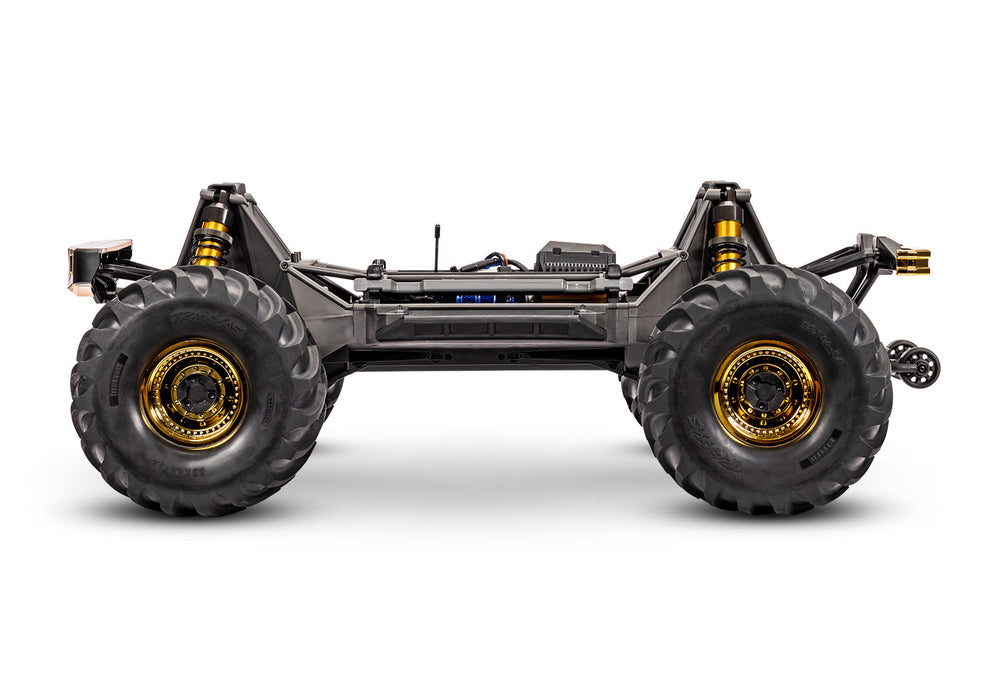

• Heavy-Duty Modular Composite Chassis
• Interlocking front and rear bulkheads
• Motor mounts to rear bulkhead to eliminate gear crunching flex
• Easy to service and access components
• Driveline is sealed in the chassis to keep out dirt and grit
• Snap-Lock Battery Retention System
• No body clips or hook and loop straps
• Battery hold-downs pivot for easy access
• Adjustable for battery size
• More secure than conventional retention systems
• Integrated into chassis top brace for improved battery tray and chassis stiffness

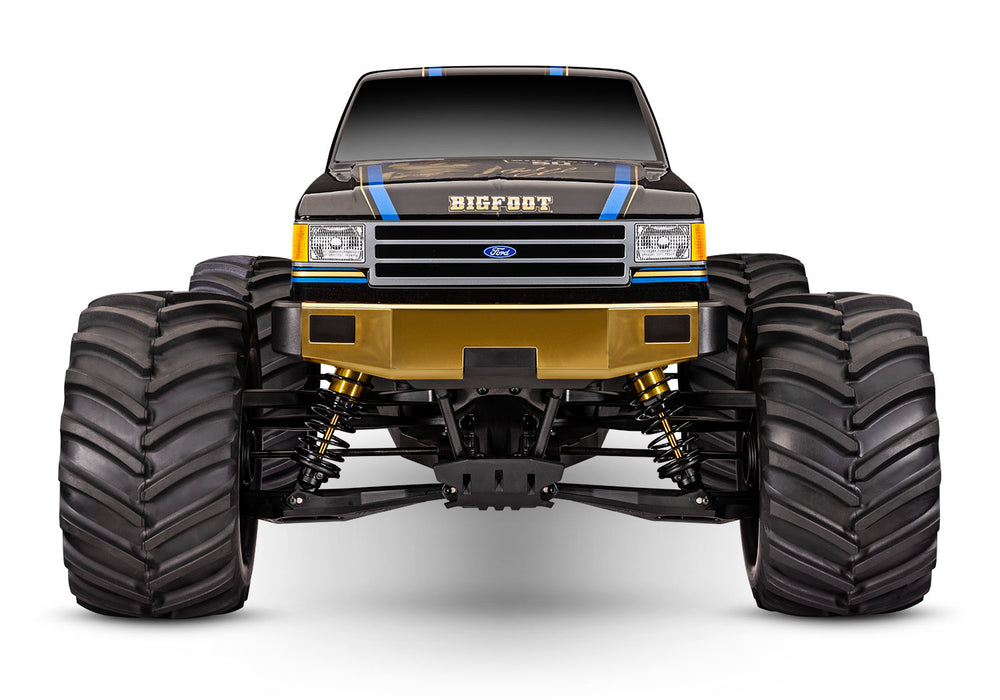

• Unique gold front and rear bumpers
• Front energy absorbing rubber impact cushion
• Lower front and rear skids for impact and abrasion resistance
• Integrated nerf bars for side impact resistance
• Steering
• 2085XL high-output metal-gear steering servo
• 450 oz-in torque
• Aluminum cooling fins
• Fully-supported case mounting
• Double-shear, bearing supported servo horn
• Suspension
• Heavy-duty suspension arms with double-shear connections
• High strength steel suspension pins used throughout
• Captured outer lower suspension pins with locknuts
• C-hub and steering block geometry maximizes steering angle
• Adjustable roll center
• Steel upper and lower tie bars
• Full contact sealed bearings used in exposed locations
• Gold-Anodized Aluminum GTX™ Shocks
• Dark PTFE-coated aluminum shock caps
• Dark PTFE-coated aluminum spring retainers
• 5.2 mm TiN-coated shock shafts
• Powder-coated springs
• Lower seal cartridge includes integrated wiper seal combination
• Adjustable upper spring retainer
• Lower spring perches bolted on
• Wheels & Tires
• Unique gold dual-profile monster truck wheels
• Replica military-style axle hubs
• Huge 8.6" belted chevron-pattern Terra Groove tires
• Super-soft rubber compound for exceptional grip
• Internal belting virtually eliminates ballooning

SPECIFICATIONS:

• Top Speed: 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
• Skill Level: 6
• Scale: X-Truck®
• Weight: 24.0 pounds (10.89 kg)
• Length: 30.67 inches (779 mm)
• Width: 21.3 inches (540 mm)
• Track: 21.3 inches (540 mm)
• Height: 13.99 inches (355 mm)
• Wheelbase: 18.92 inches (480 mm)
• Center Ground Clearance: 4.2 inches (107 mm)
• Driveline: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 metric pitch (Mod 1)
• Steering Servo: 2085XL metal gear ultra-high-torque waterproof
• Radio System: TQi™ 2.4 GHz 2-channel transmitter
• Battery Compartment Specs: 197 mm X 52 mm X 44 mm
• MOTOR SPECS:
  • Name: Velineon 1200XL
  • Type: 1275 Kv sensorless brushless
  • Weight: 23.44 ounces (665 g)
  • Length: 4.32 inches (110 mm)
  • Diameter: 1.88 inches (48 mm)
  • Shaft Size: 5 mm
  • Connector Type: 6.5 mm bullet connectors
• ESC SPECS:
  • Name: Velineon VXL-8s
  • Type: Brushless
  • Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81
  • inches (46 mm)
  • Weight: 7.60 ounces (215.5 g)
  • Motor Connectors: 6.5 mm bullet connectors
  • Battery Connectors: Traxxas High-Current Connectors
  • Power Wire: 10 gauge Maxx® Cable

INCLUDES:

• X-Monster with exclusive BIGFOOT 50th anniversary body
• Velineon VXL-8s waterproof electronic speed control with Big Block brushless motor
• Commemorative BIGFOOT 50th anniversary plaque with matching body and chassis badges
• TQi 2.4 GHz radio system
• High quality maintenance tools

Needed to complete:

• Batteries: IMPORTANT: X-Maxx BIGFOOT 50th requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance (part 2890X)
• Charger: EZ Peak Live Dual 4s LiPo Charger with iD
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
