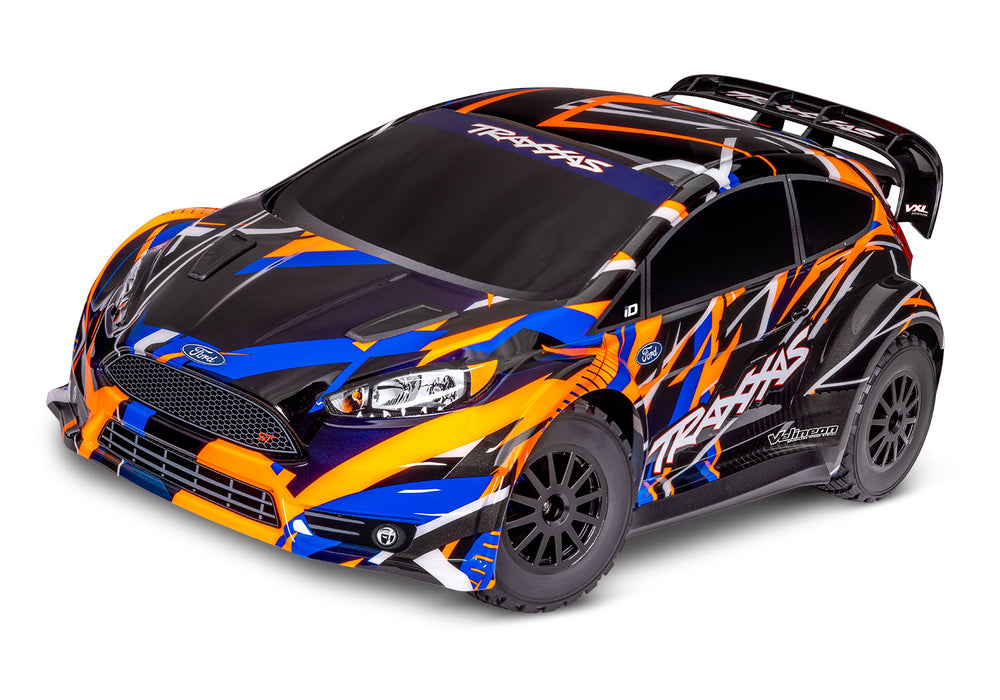

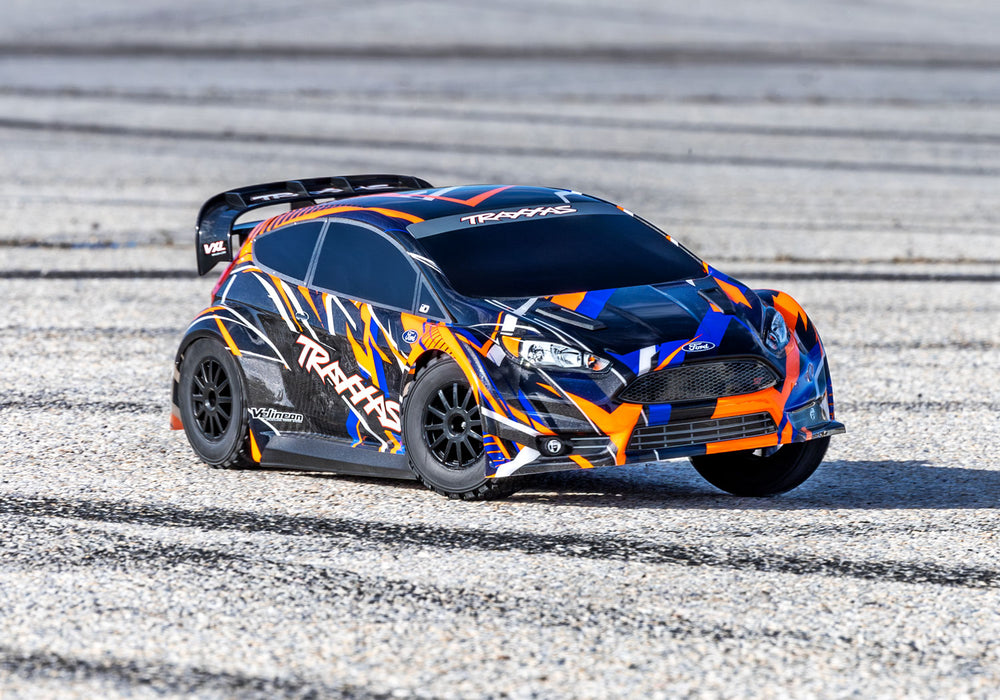

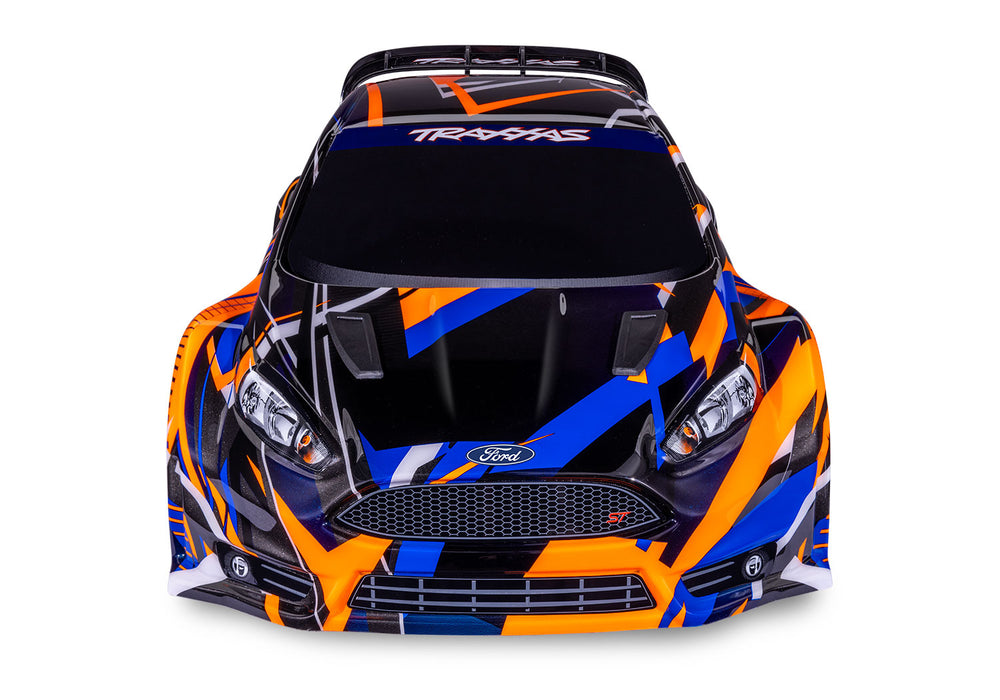

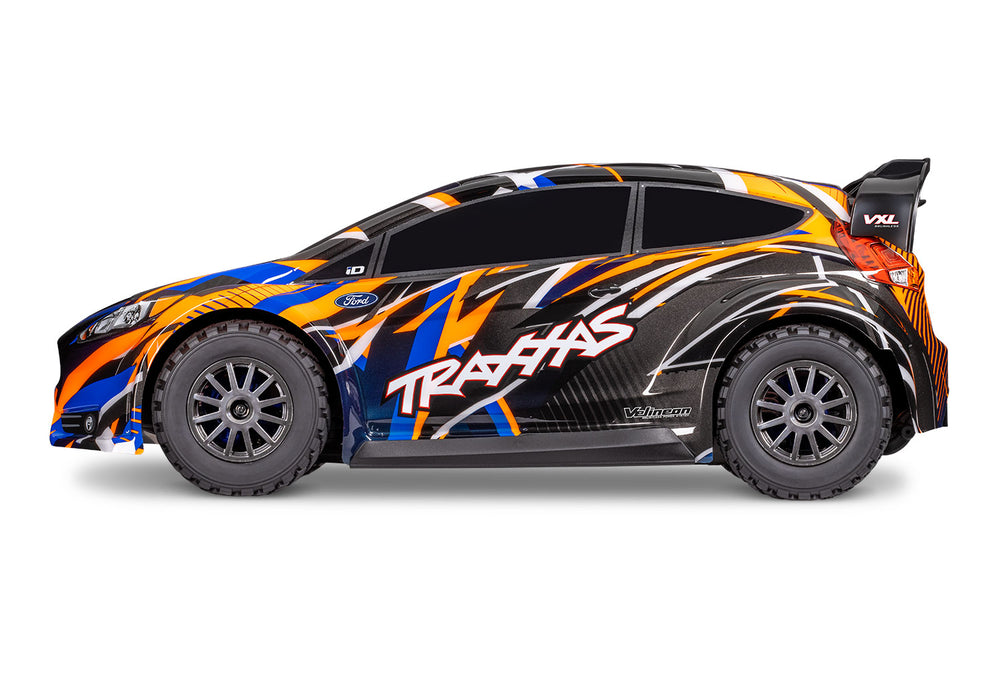

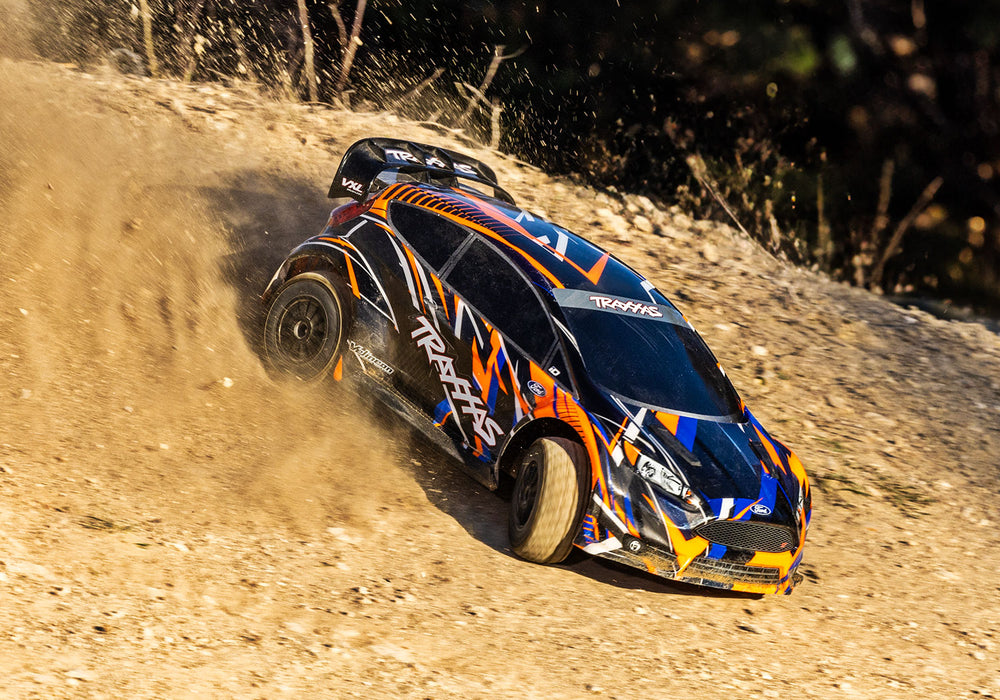

Traxxas 74276-4 Orange 4x4 Ford Fiesta RTR 1/10 VXL Brushless Rally Car

The Traxxas Ford® Fiesta® ST Rally VXL dominates the track with agile handling, AWD traction, and the 60+ mph speed of the legendary Velineon® brushless power system. Rally’s officially licensed clipless body and high-grip gravel tires offer the full rally racing experience. Additionally, Fiesta ST Rally now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit for game-changing strength and durability.

Fiesta ST Rally VXL's Velineon 3s brushless power system delivers the ultimate in efficiency, speed, and run-time with precise and responsive throttle control. Rally VXL transforms 3s LiPo power into lightning-fast speed and tire-melting acceleration. This is brushless performance done the Traxxas way: brutally fast and easy to use.

Rally’s factory-installed Extreme Heavy Duty Upgrade parts replace key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD shock towers to the steel wheel hubs, this is the strongest driveline ever offered in a Rally.

Rally’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, release the side tabs and lift up to access the chassis in just seconds.

FEATURES:

• Clipless Body
• Officially licensed Ford® Fiesta® ST body
• Pre-painted with applied decals
• Tough composite rear wing
• High approach angle front bumper
• Internal reinforcement with integrated nerf bars
• Holds tight for intense action
• Quick and easy removal
• Extreme Heavy Duty Upgrade parts Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• Extreme heavy duty driveshafts
• Oversize diameter
• 6 mm axles
• TQi™ 2.4 GHz High Output Radio System
• TQi 2-channel transmitter
• Programmable multi-function knob
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• 5-channel receiver (6533) with fail-safe security
• Waterproof receiver box with easy-access plug
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the model
• Adjusts from off to 100% assistance from the transmitter
• VXL-3s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-8 cells (7.2 to 9.6 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Velineon® 3500 kV Brushless Motor
• Ultra high-temperature sintered Neodymium magnets
• Low-maintenance design
• Efficient high-speed ball bearings
• Precision-balanced rotor
• 3500 kV
• Brilliant blue-anodized finish
• Steering
• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

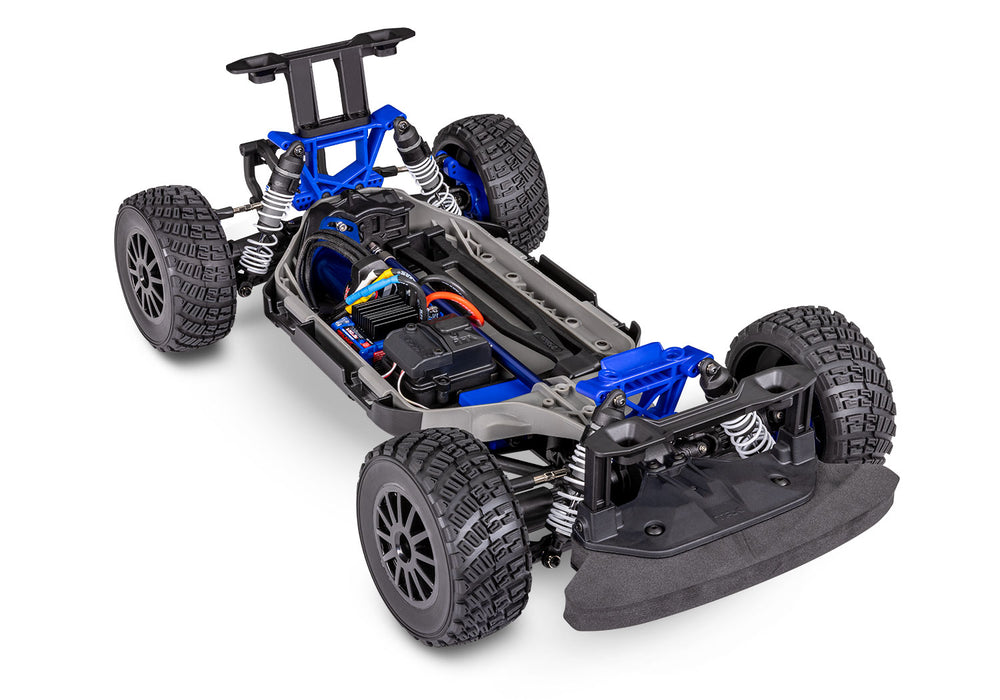

• Chassis
• High approach angle front bumper
• Modular chassis makes maintenance quick and easy
• Batteries and electronics held low for improved handling
• Low-CG design dramatically increases corner speed
• Easy motor access with single-screw motor plate attachment
• Suspension
• Oil-filled Ultra Shocks™
• White powder-coated springs
• Drivetrain
• Heavy Duty slipper clutch with aluminum pads
• Full-time shaft-driven 4-wheel drive
• Oil-filled steel gear front and rear differentials
• Large 32-pitch spur gear
• Wheels and Tires
• 2.2″ outer, 3″ inner diameter dual-profile 12-spoke rally wheels
• Pre-glued all-terrain rally tires with performance foam inserts
• Steel wheel hexes
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 21.00 inches (535 mm)
• Front Track: 11.00 inches (281 mm)
• Rear Track: 11.00 inches (281 mm)
• Ground Clearance: 0.80 inches (21 mm)
• Weight (no battery): 5.8 pounds (2.63 kg)
• Height (overall): 8.10 inches (206 mm)
• Wheelbase: 12.8 inches (324 mm)
• Shock Length (front): 3.45 inches (88 mm) - Long
• Shock Length (rear): 3.98 inches (101 mm) - XX-long
• Speed Control: Velineon® VXL-3s™ electronic speed control
• Motor (electric): Velineon 4-pole 3500 kV sensorless brushless
• Overall Drive Ratio: 11.82:1
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32 pitch
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Tires: Gravel pattern directional with foam inserts
• Tire Diameter: 3.0 inches (76 mm) (front and rear)
• Wheels (front/rear): 12-spoke rally wheels
• Wheel Diameter: 2.2″ (56 mm) (outer), 3.0″ (76 mm) (inner)
• Radio System: TQi™ 2.4 GHz (2-channel)
• Servo: Waterproof digital 2075 servo (125 oz-in torque)
• Skill Level: 2
• Battery Compartment (L/W/H): 165 x 50 x 23/26 mm
• Required Batteries: 4 “AA” (transmitter), Vehicle
• MOTOR SPECS:
• Type: Velineon 3500 kV sensorless brushless
• Weight: 9.24 ounces (262 g)
• Length: 2.20 inches (56 mm)
• Diameter: 1.41 inches (36 mm)
• Connector Type: 3.5 mm bullet
• ESC SPECS:
• Input Voltage (cells): 7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
• Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33mm)
• Weight: 3.84 ounces (109 g)
• BEC Voltage: 6.0 volts
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

INCLUDES:

• Fiesta ST Rally with VXL-3s ESC and 3500 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools
• Optional speed gear

Needed to complete:

• Batteries - Rally requires a single NiMH or LiPo battery. See full list of batteries
• Charger - Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter
