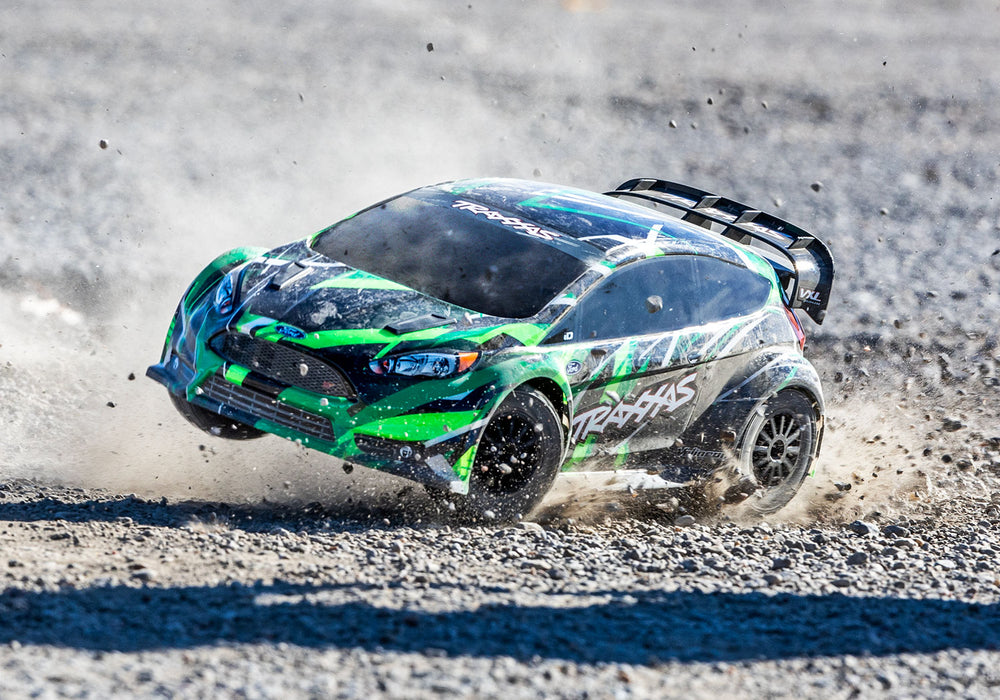

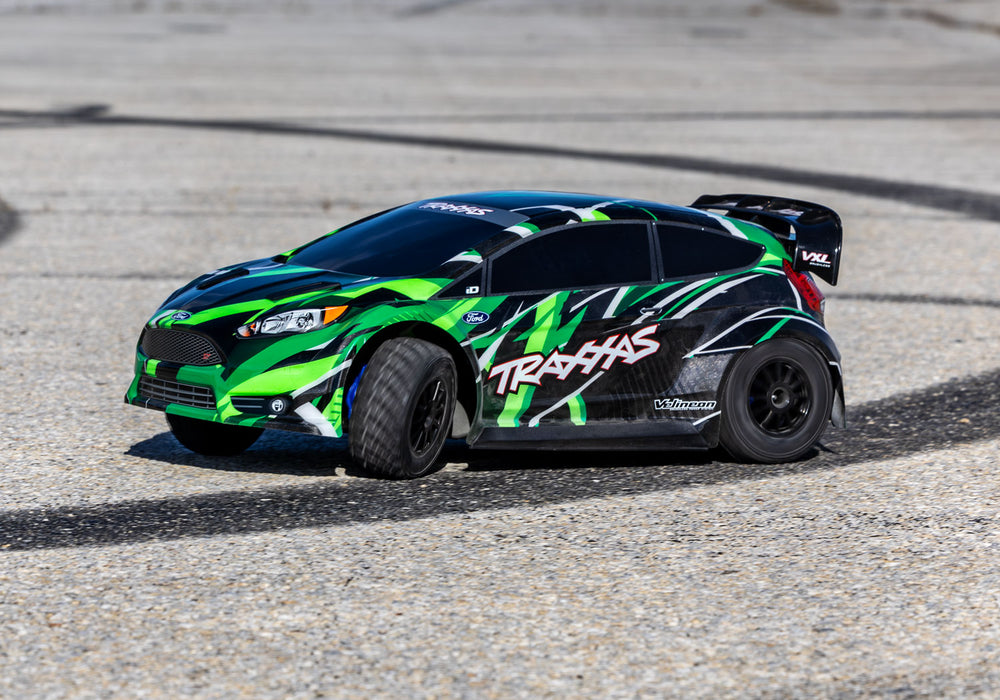

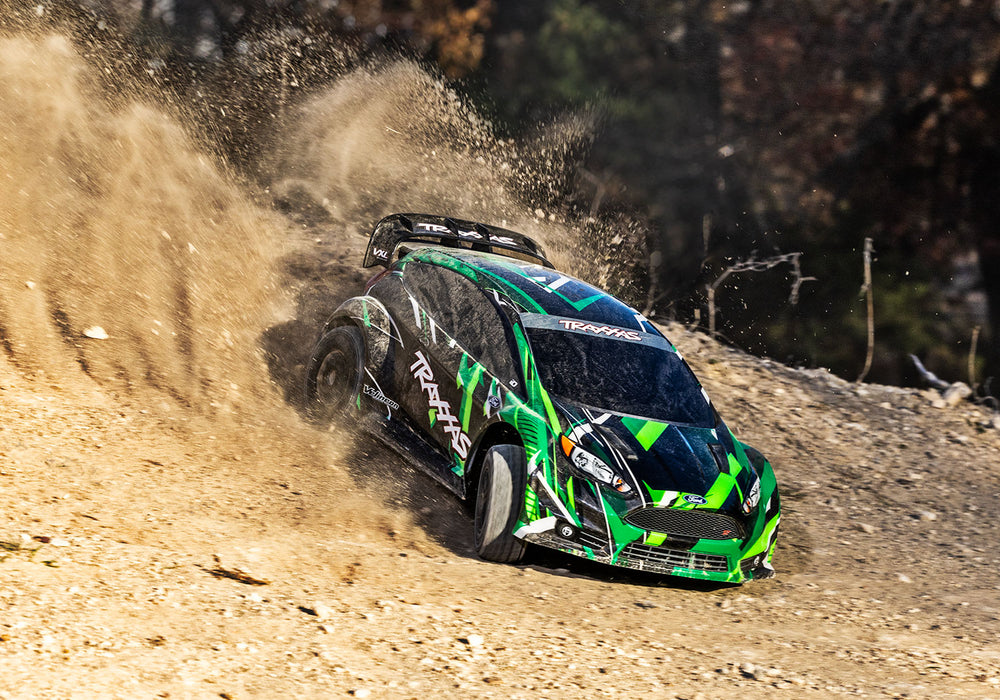

Traxxas 74276-4 Green 4x4 Ford Fiesta RTR 1/10 VXL Brushless Rally Car
The Traxxas Ford® Fiesta® ST Rally VXL dominates the track with agile handling, AWD traction, and the 60+ mph speed of the legendary Velineon® brushless power system. Rally’s officially licensed clipless body and high-grip gravel tires offer the full rally racing experience. Additionally, Fiesta ST Rally now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit for game-changing strength and durability.
Fiesta ST Rally VXL's Velineon 3s brushless power system delivers the ultimate in efficiency, speed, and run-time with precise and responsive throttle control. Rally VXL transforms 3s LiPo power into lightning-fast speed and tire-melting acceleration. This is brushless performance done the Traxxas way: brutally fast and easy to use.
Rally’s factory-installed Extreme Heavy Duty Upgrade parts replace key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD shock towers to the steel wheel hubs, this is the strongest driveline ever offered in a Rally.
Rally’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, release the side tabs and lift up to access the chassis in just seconds.
FEATURES:
- Clipless Body
- Officially licensed Ford® Fiesta® ST body
- Pre-painted with applied decals
- Tough composite rear wing
- High approach angle front bumper
- Internal reinforcement with integrated nerf bars
- Holds tight for intense action
- Quick and easy removal
- Extreme Heavy Duty Upgrade parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
- Oversize diameter
- 6 mm axles
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- Programmable multi-function knob
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- 5-channel receiver (6533) with fail-safe security
- Waterproof receiver box with easy-access plug
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the model
- Adjusts from off to 100% assistance from the transmitter
- VXL-3s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-8 cells (7.2 to 9.6 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Velineon® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver

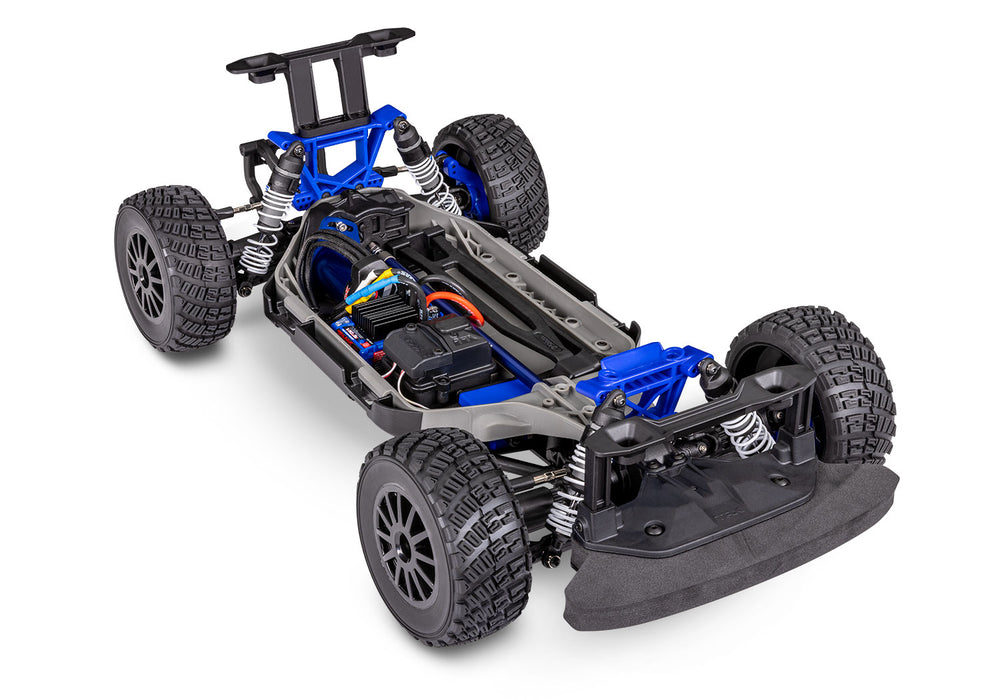

- Chassis
- High approach angle front bumper
- Modular chassis makes maintenance quick and easy
- Batteries and electronics held low for improved handling
- Low-CG design dramatically increases corner speed
- Easy motor access with single-screw motor plate attachment
- Suspension
- Oil-filled Ultra Shocks™
- White powder-coated springs
- Drivetrain
- Heavy Duty slipper clutch with aluminum pads
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch spur gear
- Wheels and Tires
- 2.2″ outer, 3″ inner diameter dual-profile 12-spoke rally wheels
- Pre-glued all-terrain rally tires with performance foam inserts
- Steel wheel hexes
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
SPECIFICATIONS:
- Length: 21.00 inches (535 mm)
- Front Track: 11.00 inches (281 mm)
- Rear Track: 11.00 inches (281 mm)
- Ground Clearance: 0.80 inches (21 mm)
- Weight (no battery): 5.8 pounds (2.63 kg)
- Height (overall): 8.10 inches (206 mm)
- Wheelbase: 12.8 inches (324 mm)
- Shock Length (front): 3.45 inches (88 mm) - Long
- Shock Length (rear): 3.98 inches (101 mm) - XX-long
- Speed Control: Velineon® VXL-3s™ electronic speed control
- Motor (electric): Velineon 4-pole 3500 kV sensorless brushless
- Overall Drive Ratio: 11.82:1
- Differential Type: Hardened steel bevel, sealed, limited slip
- Gear Pitch: 32 pitch
- Chassis Structure/Material: Composite tub
- Drive System: Shaft-driven 4WD
- Steering: Dual-bellcrank with integrated servo saver
- Tires: Gravel pattern directional with foam inserts
- Tire Diameter: 3.0 inches (76 mm) (front and rear)
- Wheels (front/rear): 12-spoke rally wheels
- Wheel Diameter: 2.2″ (56 mm) (outer), 3.0″ (76 mm) (inner)
- Radio System: TQi™ 2.4 GHz (2-channel)
- Servo: Waterproof digital 2075 servo (125 oz-in torque)
- Skill Level: 2
- Battery Compartment (L/W/H): 165 x 50 x 23/26 mm
- Required Batteries: 4 “AA” (transmitter), Vehicle
- MOTOR SPECS:
- Type: Velineon 3500 kV sensorless brushless
- Weight: 9.24 ounces (262 g)
- Length: 2.20 inches (56 mm)
- Diameter: 1.41 inches (36 mm)
- Connector Type: 3.5 mm bullet
- ESC SPECS:
- Input Voltage (cells): 7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
- Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33mm)
- Weight: 3.84 ounces (109 g)
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
INCLUDES:
- Fiesta ST Rally with VXL-3s ESC and 3500 kV motor
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Optional speed gear
Needed to complete:
- Batteries - Rally requires a single NiMH or LiPo battery. See full list of batteries
- Charger - Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
- AA Alkaline Batteries - Four AA alkaline batteries for the transmitter
