Traxxas 67376-4 Red Rustler 4X4 VXL 1/10 Scale Stadium Truck

Rustler® 4X4 VXL is a hard-charging wheelie machine that captures the speed and style of a stadium truck and injects it with a massive dose of strength and power. Beneath Rustler’s clipless body, the extreme Velineon® brushless power system feeds power through the factory-installed Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

Rustler 4X4 VXL’s factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Rustler.

Rustler 4X4 VXL uses Traxxas’ patented self-righting feature to keep the fun going, even when you get carried away with the wheelies or land that big trick upside down. Simply press a button on the TQi™ transmitter and, in most circumstances*(*3s power recommended for optimal performance), Rustler 4X4 VXL will be back on its wheels in just seconds and ready for more action!

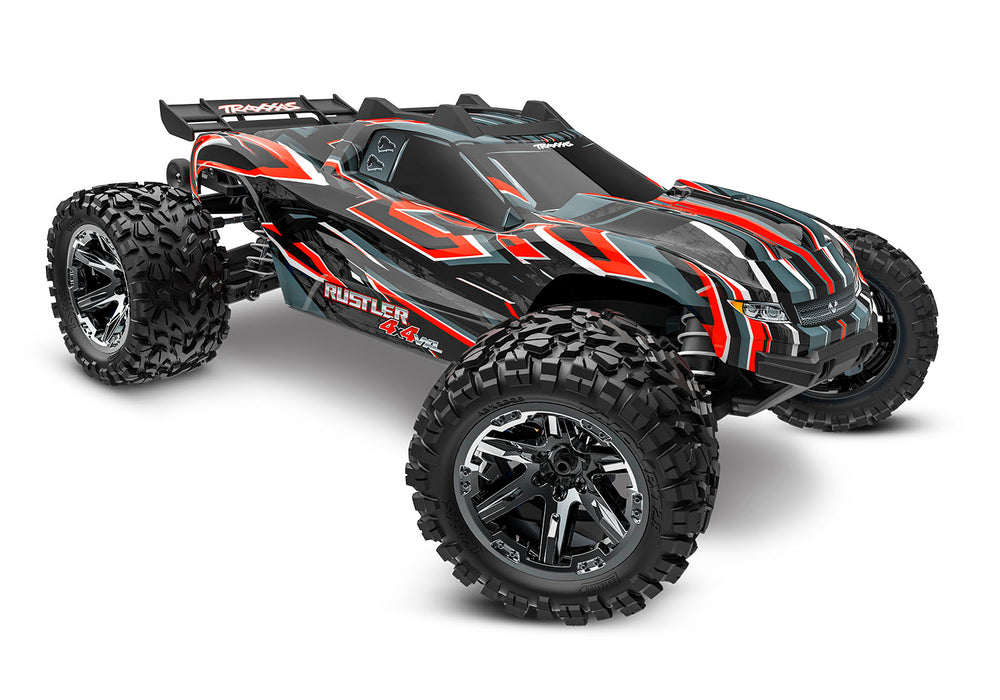

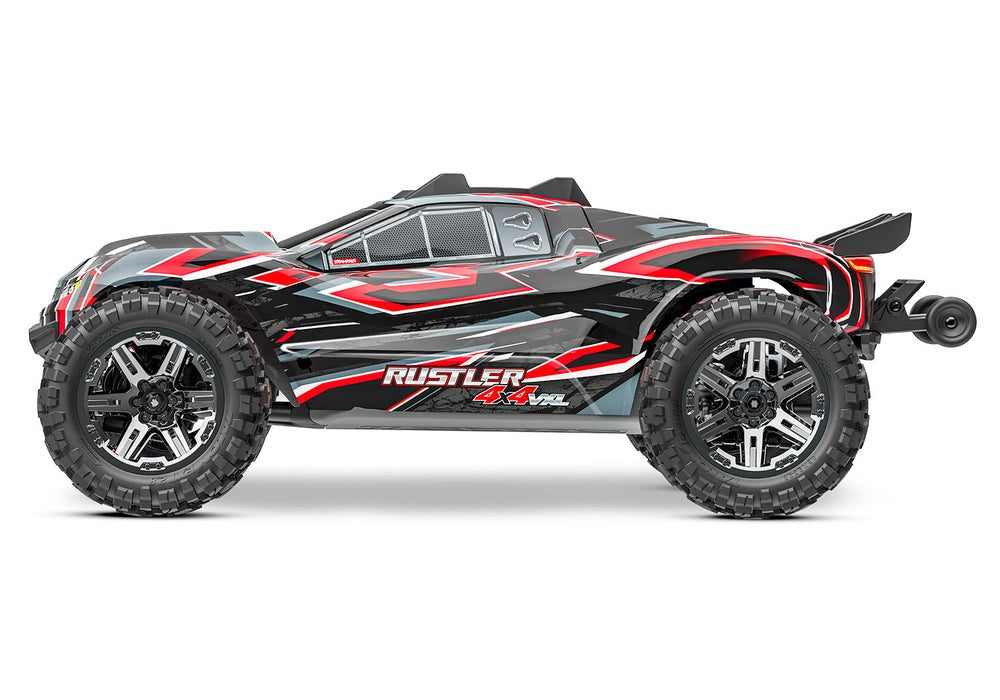

Rustler 4X4 VXL uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-Tough™ durability.

FEATURES:

• Clipless ProGraphix® Body
• Easy one-handed removal
• Reinforced inner cage
• Strong oversized latch
• Rugged roof rollover protector
• Molded composite plastic wing
• Extreme Heavy Duty Upgrade Kit Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• Maxx duty driveshafts
• Oversize diameter
• 6 mm axles
• Steel wheel hexes
• Up to 65+ mph with 3s LiPo battery
• TQi™ 2.4 GHz High Output Radio System
• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• VXL-3s™ Waterproof Electronic Speed Control
• Three Programmable Drive Profiles:
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Large heat sink
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Velineon® 3500 kV Brushless Motor
• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• 3500 kV
• Brilliant blue-anodized finish
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

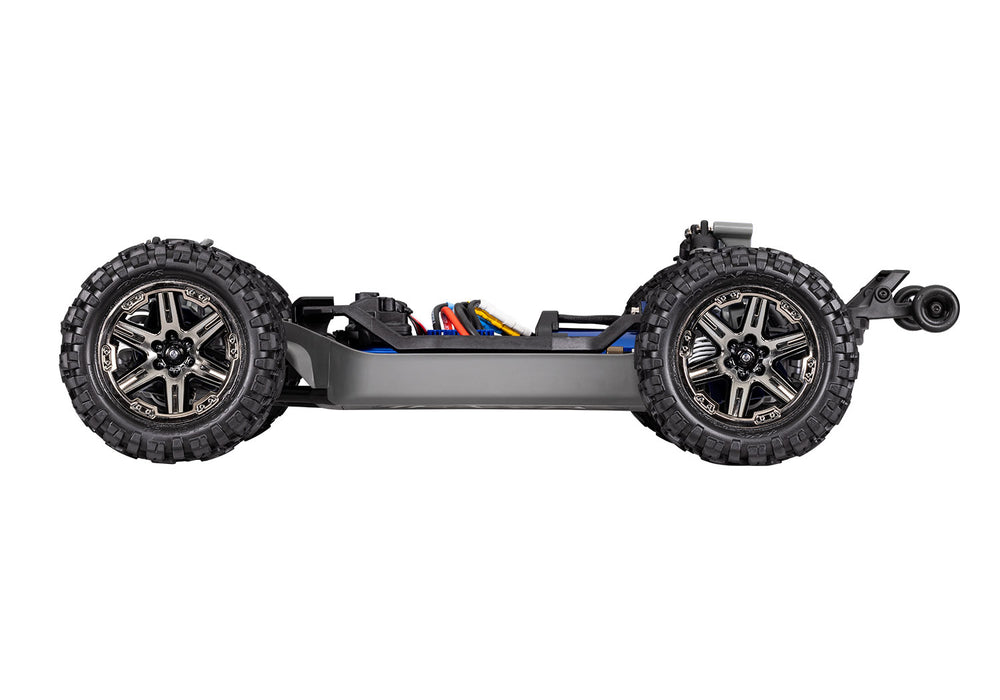

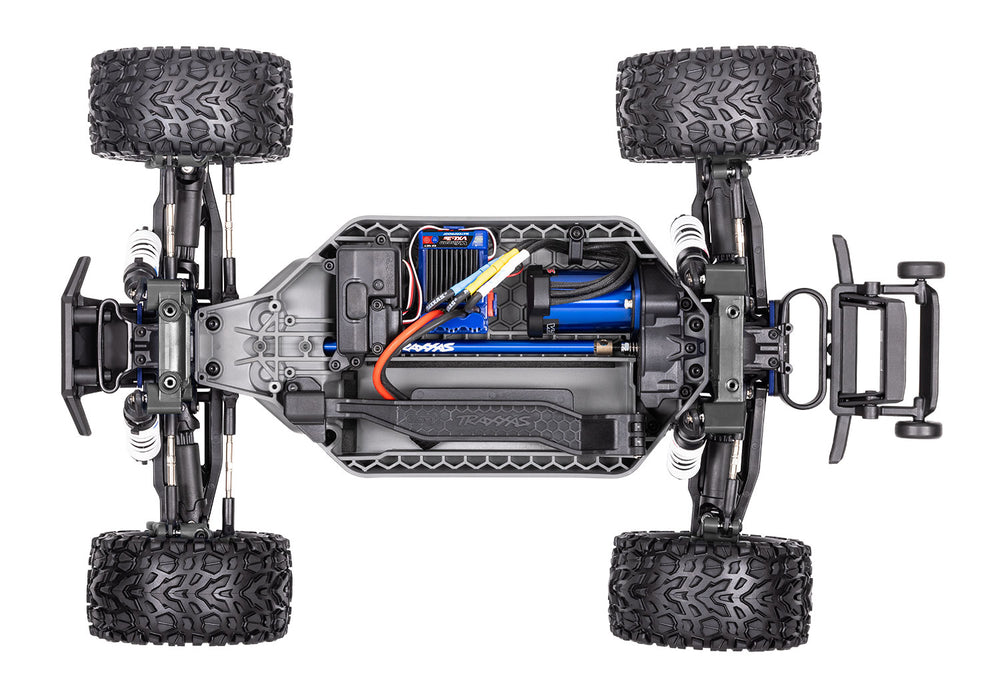

• Chassis
• Low-CG design for responsive handling
• Modular composite tub design
• Latching battery hold-down
• Reinforced integrated wheelie bar
• High-approach front bumper to climb curbs
• Drivetrain
• Maxx-duty driveshafts
• Sealed steel gear front and rear differentials
• Large 32-pitch gearing
• Heavy-duty slipper clutch with aluminum pads
• Anodized-aluminum center driveshaft
• Steering
• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver
• Suspension
• Adjustable toe and camber links
• Impact-resistant suspension arm composite
• Oil-filled Ultra Shocks
• Rugged front and rear shock towers
• White powder-coated progressive springs
• Wheels and Tires
• Large 2.8″ black chrome wheels
• 2.8″ Talon™ EXT tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

SPECIFICATIONS:

• Length: 18.78 inches (477 mm)
• Width: 12.94 inches (329 mm)
• Ground Clearance: 1.1 inches (27 mm)
• Weight: 5.12 pounds (2.32 kg)
• Height: 6.35 inches (161 mm)
• Wheelbase: 11.62 inches (295 mm)
• Front Shock Length: Long
• Rear Shock Length: XX-long
• Tires (pre-glued): 4.5″ x 2.3″ (114 mm x 58 mm) Talon™ EXT
• Wheels: 2.8 inches (71 mm) black chrome
• Speed Control: VXL-3s™
• Motor (electric): Velineon® 3500 brushless
• Transmission: Single speed
• Overall Drive Ratio: 13.97:1
• Differentials: Sealed, 2-gear
• Chassis Structure / Material: Composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Bellcrank with integrated servo saver
• Radio System: TQi™ 2.4 GHz 2-ch transmitter with 6533 TSM receiver
• Servo: Waterproof 2075
• Top Speed (optional gearing): 65+ mph with 3-cell LiPo and 20/54 gearing
• Skill Level: 1
• Battery Compartment:
• 162 mm x 50mm x 25 mm
• MOTOR SPECS:
• Type: Velineon 3500 kV sensorless brushless
• Weight: 9.24 ounces (262 g)
• Length: 2.20 inches (56 mm)
• Diameter: 1.41 inches (36 mm)
• Connector Type: 3.5 mm bullet
• ESC SPECS:
• Input Voltage (cells): 7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
• Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm)
• Weight: 3.84 ounces (109 g)
• BEC Voltage: 6.0 volts
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

INCLUDES:

• Rustler 4X4 VXL with Velineon VXL-3s and 3500 kV motor
• Quick Start Guide
• TQi 2.4 GHz radio system
• High quality maintenance tools
• Includes speed pinion

What You’ll Need:

• Batteries - Rustler 4X4 VXL requires a single NiMH or LiPo battery.
• Charger - Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries - Four AA alkaline batteries for the transmitter
