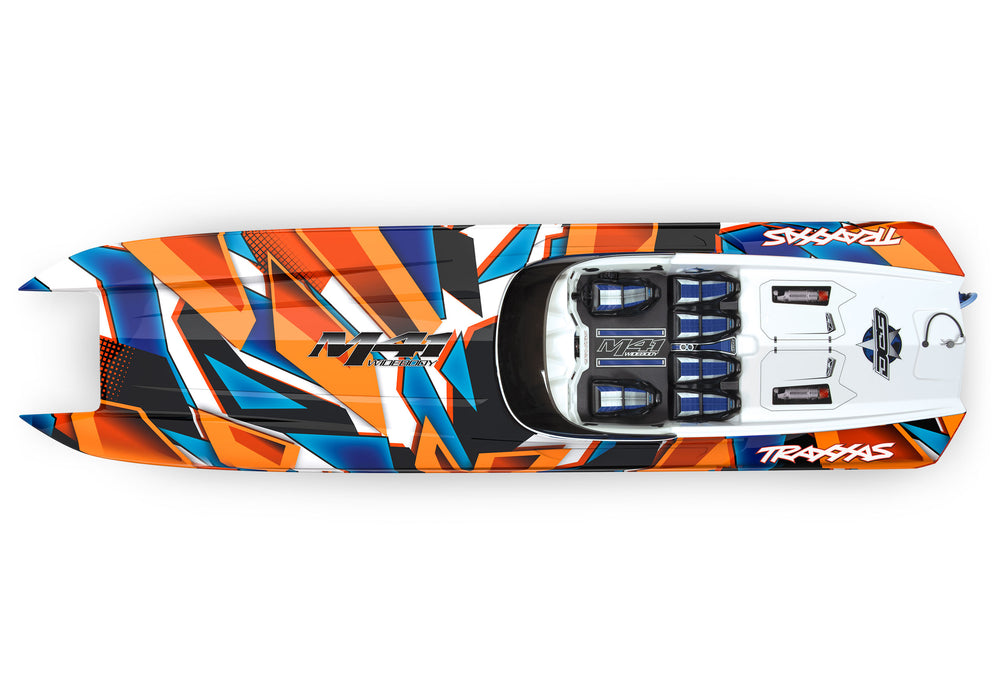

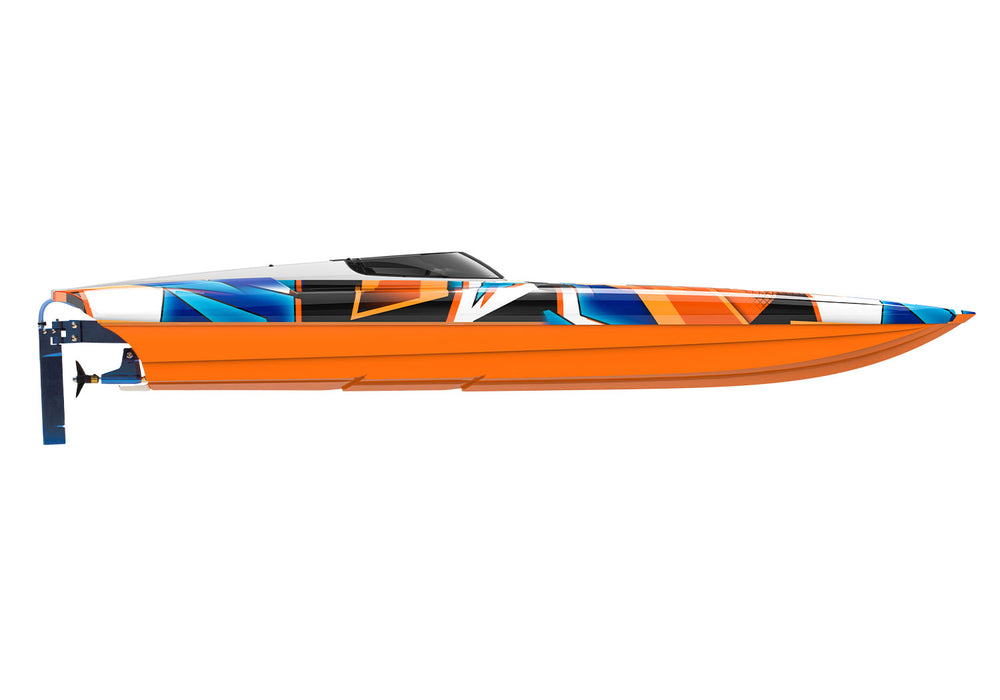

Traxxas 57046-4 DCB M41 Widebody Catamaran Electric Boat Orange 2022
Start your summer off right with the Traxxas DCB M41 replica catamaran, now available in four bold new looks. Supercharge your on-the-water adventures with the extreme Velineon brushless power system and over 22 Volts of LiPo power. With a top speed over 50 mph and razor-sharp handling that defies its 40" hull size, M41 delivers summer fun the Traxxas way!
The DCB M41 Widebody catamaran, designed by DCB (Dave’s Custom Boats) founder Dave Hemmingson, is one of the largest models offered in the DCB M-Series. With its precision sculpted design and a pair of Mercury Racing 1350 engines, it speeds across the water at 175mph! Traxxas faithfully captured the incredible looks and performance of the DCB M41 in a detailed scale replica that is versatile, fun, and fast. The catamaran hull delivers the speed, stability and confidence for which the full-size M41 is famous, allowing you to have fun wherever your marine adventures take you. The M41 replica is equally at home blasting across the waves at the lake on a fun run or exploiting its 50+mph speed on a favorite stretch of smooth water. The razor sharp handling lets you carve turns with authority and precision and yet, offers easy control while cruising by the shore.
40" Widebody Catamaran Hull
Based on the full-size M41 Widebody designed and built by Dave’s Custom Boats, the Traxxas M41 gets its unique, aggressive appearance thanks to its use of a catamaran hull design. Instead of using a monohull with a V-shape design, the catamaran uses two parallel hulls of equal size. This hull design offers more than a different visual presentation; the catamaran offers a wider stance on the water for increased stability and less hydrodynamic resistance. This also lets the M41 use less energy to propel itself across the water making it incredibly fast. The M41 gets on plane almost immediately, letting you get to the fun faster—to the tune of 50+ mph on 6S LiPo power.
Big Boat, Big Fun
The M41 is a water-roosting speed demon that’s also a work of art. At just over 40 inches (1 meter) long, the M41 has a commanding presence just floating in the water. Crack open the throttle and the fun begins! The M41’s size and design give it the versatility to work well in a wide range of conditions. The M41 is stable and easy to control whether blasting across the waves in a big lake, cruising past the shoreline, or testing it’s 50mph top speed on a smooth pond.
Rigid Internal Structure
A unique feature of the M41 is its rigid internal structure with removable electronics tray and motor mount. The VXL-6s electronic speed control, waterproof receiver box, and powerful 2056 high-torque steering servo are all bolted securely to the tray. The motor is attached independently to a motor mount that increases the rigidity of the hull. In just a few quick minutes, the electronics can be removed for maintenance. The internal structure includes an integrated reinforced transom to provide a solid mounting surface for the control and drive systems. In all the M41 delivers the ruggedness and reliability needed for all-day fun, run after run.
Flex Cable Drive System
The M41 features an efficient and reliable flex cable drive system that is securely mounted to the internal structure. This unique installation provides easy access to the various driveline components for quick maintenance or upgrades.
High-Performance Prop
The M41 is equipped with a surface-piercing prop that has been optimized to get the hull on plane as quickly as possible without cavitation. The prop is made of a molded composite construction that is lightweight and tough, with no balancing or sharpening needed.
High-Strength Aluminum Hardware
For efficient power transfer and razor-sharp handling, the M41 is equipped with rigid drive hardware and a flex-free transom. These components allow you to experience every ounce of extreme brushless horsepower and performance. The rudder, rudder support, and drive strut are extruded and machined from rugged 6000-series aluminum alloy for maximum strength. The pieces are polished and anodized a vivid blue. The rudder also incorporates a pickup that feeds water through the cooling system.
Factory-Applied Graphics
The M41 makes a big visual statement with its bold graphics as it blasts across the water. No painting or decaling is required; the graphics are pre-painted so you can get from the box to the water quickly.
FEATURES:
- 50+mph on 6S LiPo! (batteries sold separately)
- 40" widebody catamaran hull for incredible high-speed performance
- Water-cooled, waterproof VXL-6s Marine speed control
- 6S LiPo compatible with built-in Low-Voltage Detection
- Traxxas High-Current Connectors (patented)
- Velineon 540 XL high-output brushless motor with highflow water-cooling jacket
- Quick-release Power Module integrates power system, waterproof electronics, and stuffing tube
- Adjustable battery trays with hook-and-loop straps
- Blue-anodized aluminum rudder support, rudder, and drive strut
- Stainless steel trim tabs and hardware
- Traxxas Stability Management®
- TQi 2.4GHz transmitter
- Compatible with optional Traxxas Link Wireless Module (#6511) for full Traxxas Link App capability with Apple iPad, iPhone or iPod touch (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13 ms frame rate and near-zero latency for responsive control
- TQi 2.4GHz 5-channel micro receiver (#6533) with Traxxas Stability Management, fail-safe security and integrated telemetry ports
- Waterproof high-torque steering servo
- Sleek design with factory-applied graphics
- Ready-To-Race®
- Traxxas factory support
SPECIFICATIONS:
- Hull Type: Vacu-formed ABS, catamaran, shoebox style
- Hull Length: 39.5 inches (1003 mm)
- Overall Length 40.6 inches (1030 mm)
- Beam 10.5 inches (267 mm)
- Height 5.95 inches (151 mm)
- Deadrise & Transom 14.5 degrees
- Weight: 86.7 ounces (2.46 kg)
- Speed Control Type: Traxxas Velineon® VXL-6s, water-cooled
- Input Voltage: 2-6 LiPo cells (14.8-22.2 volts DC)
- BEC Voltage: 6.0 VDC
- BEC Current: 3A
- Thermal Protection: Thermal shutdown
- Low Voltage Detection: Yes (user enabled)
- Motor (electric): Traxxas Velineon® 540XL Brushless, water-cooled
- Drive System: Direct drive, 0.15 inch flex cable
- Outdrive: Adjustable aluminum
- Prop: 2-blade composite, 42x59 mm
- Transmitter: TQi 2.4GHz (2-channel)
- Receiver: 6533 2.4GHz Traxxas Stability Management® 5-channel
- Servo: 2056 High-torque waterproof
- Skill Level: 2
