Traxxas 36034-8 BIGFOOT Classic 2WD RTR 1/10 XL-5 Monster Truck with Battery and USB-C Charger

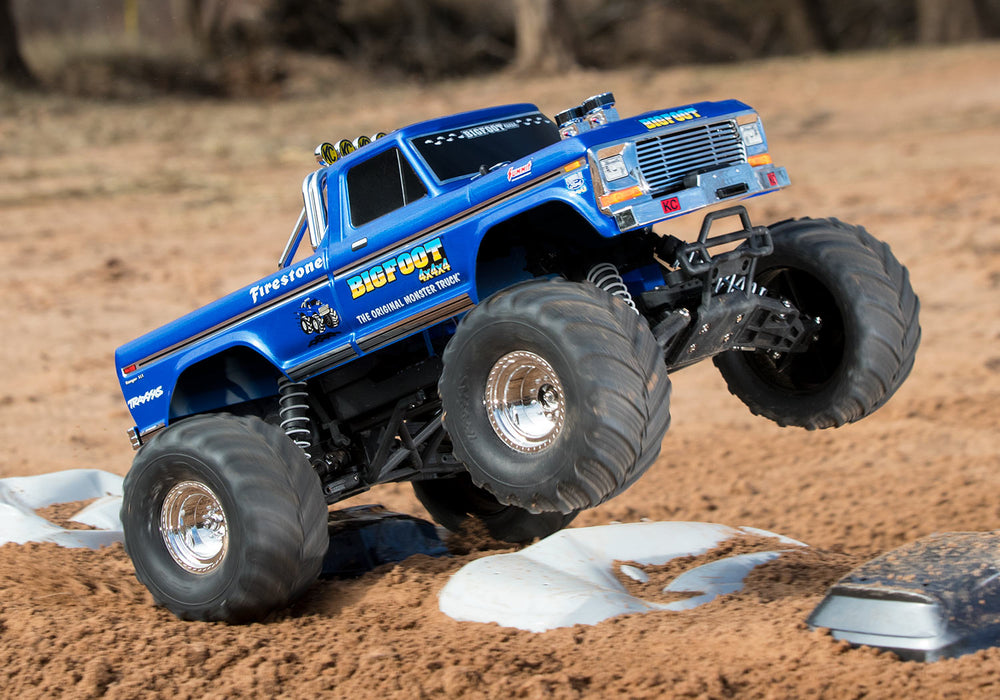

BIGFOOT® is “The Original Monster Truck”. This is the truck that started the monster truck phenomenon and brought car-crushing fun and excitement to fairgrounds and arenas everywhere. Traxxas faithfully captures the spirit and classic look of BIGFOOT No. 1 in amazing detail with this fully licensed replica. Relive the thrill of your first monster truck event with this classic powerhouse. Hammer the throttle for non-stop wheelies and crush the competition underneath its towering stance. Built Traxxas Tough™ for all-day fun, BIGFOOT comes out of the box fully assembled, waterproof, and Ready-To-Race®.
BIGFOOT No. 1 includes a powerful 8.4 volt 3000 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.
FEATURES:

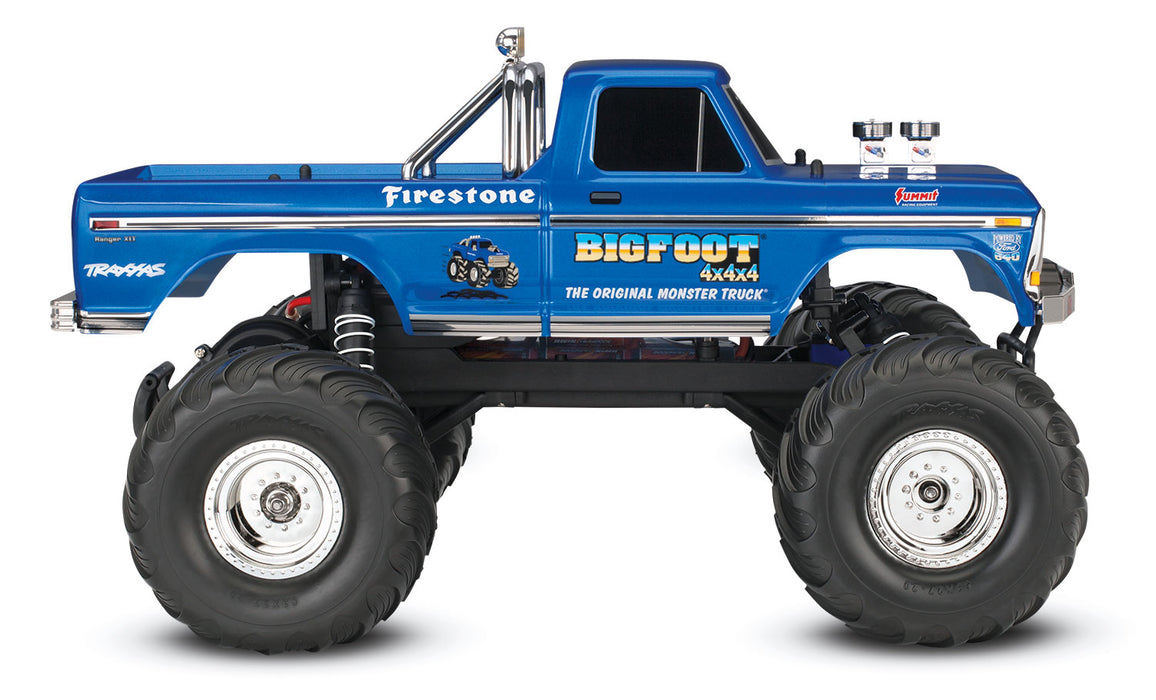

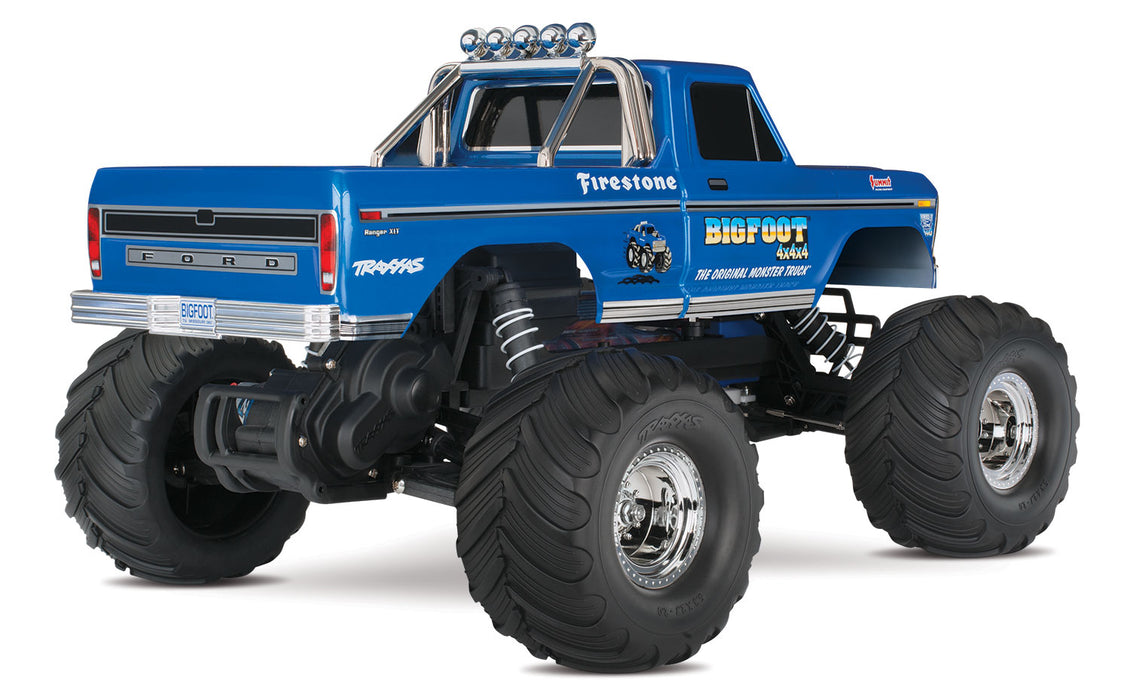

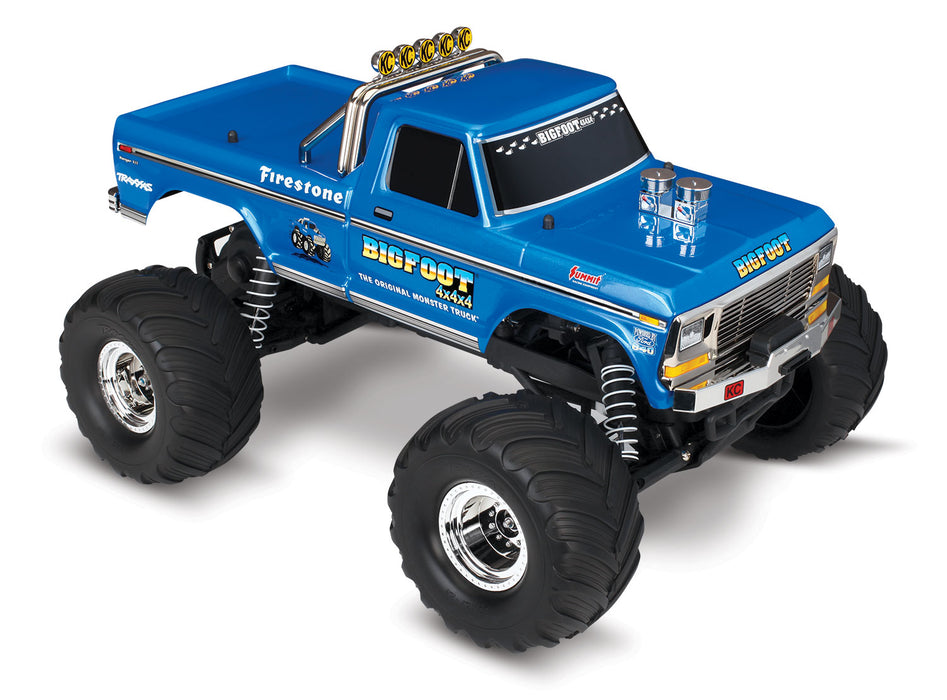

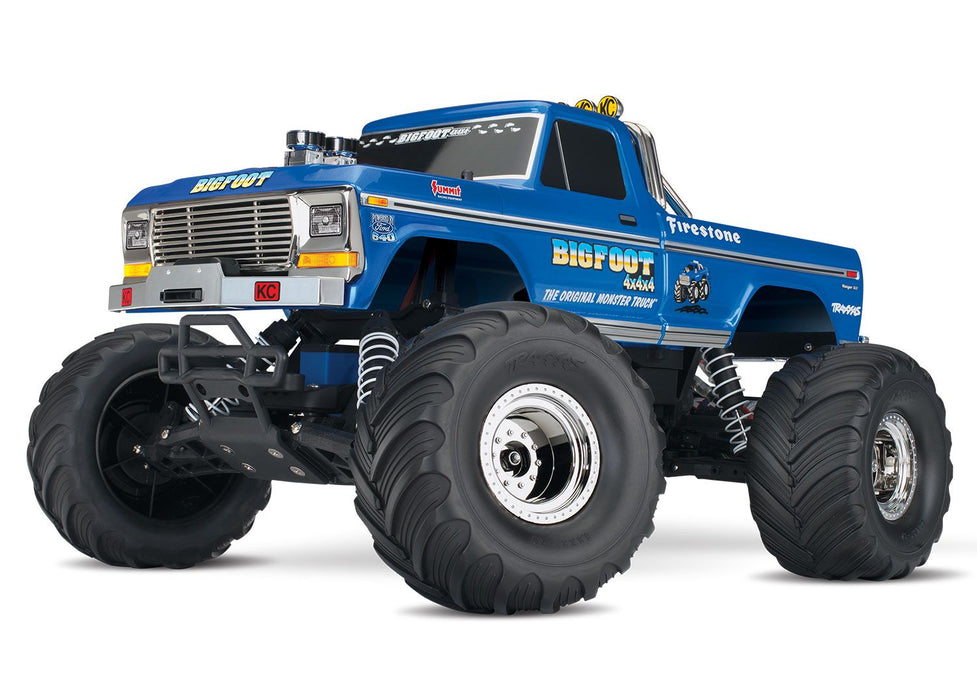

- Scale replica body of the BIGFOOT® No. 1 truck
- 4-amp USB-C fast charger
- Traxxas 7-cell NiMH battery with iD®
- Traxxas TQ™ 2.4 GHz radio system

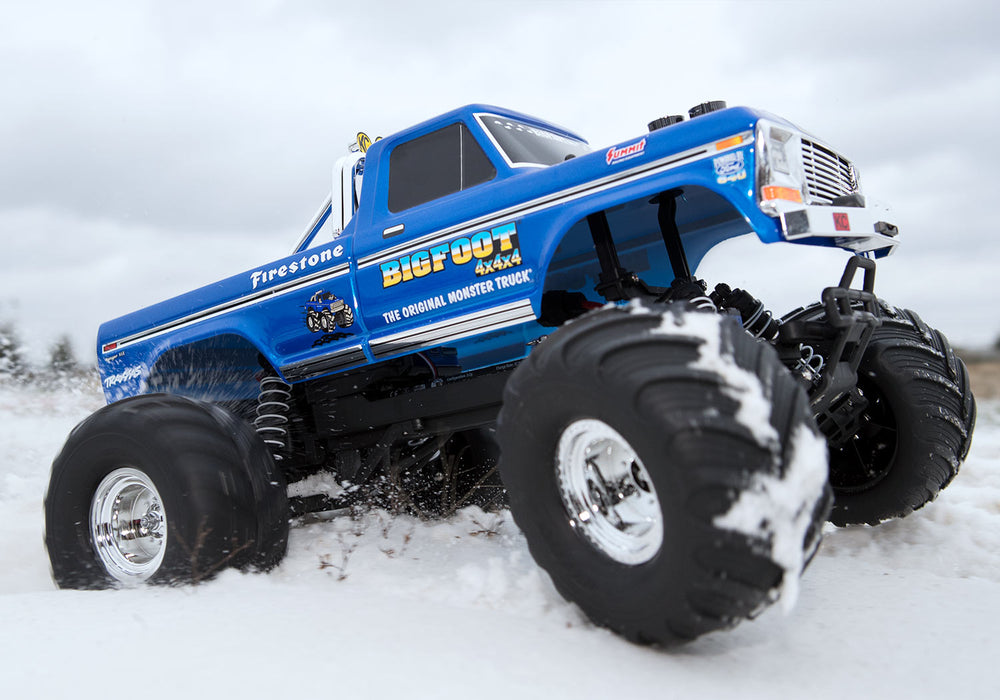

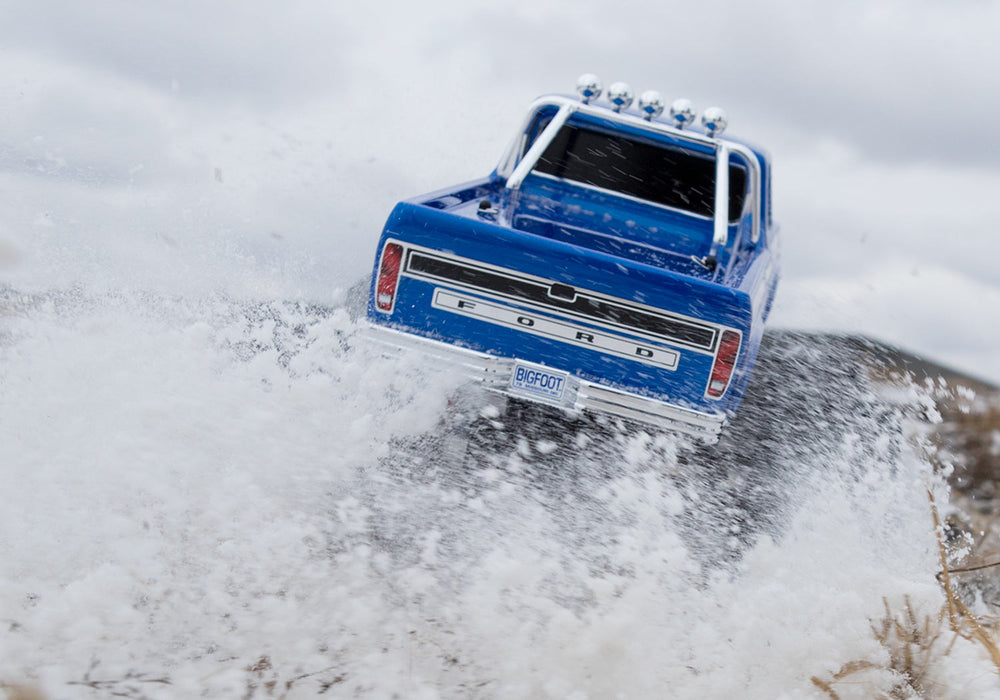

- Waterproof electronics permit driving in water, mud and snow
- Traxxas 6519 3-channel micro receiver
- Waterproof receiver box
- High-torque waterproof Traxxas 2056 steering servo
- Monstrous 4 inches of center ground clearance
- The included optional 19-tooth pinion gear pushes BIGFOOT to speeds over 30 mph (With 7-cell battery and included optional 19-tooth pinion gear)
- Powerful Titan® 12T 550 motor with internal cooling fan
- High-performance waterproof XL-5™ electronic speed control
- Innovative watersealed design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- 12-turn motor limit for 550 size motors
- 15-turn motor limit for 540 size motors
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Efficient Magnum 272™ three-gear transmission with ball bearings
- Sealed gearbox protects the transmission with beefed-up motor
- guard for extra protection
- Torque-Control™ slipper clutch system
- External gear cover with easy slipper access
- Reliable planetary gear differential
- Efficient telescoping U-joint driveshafts

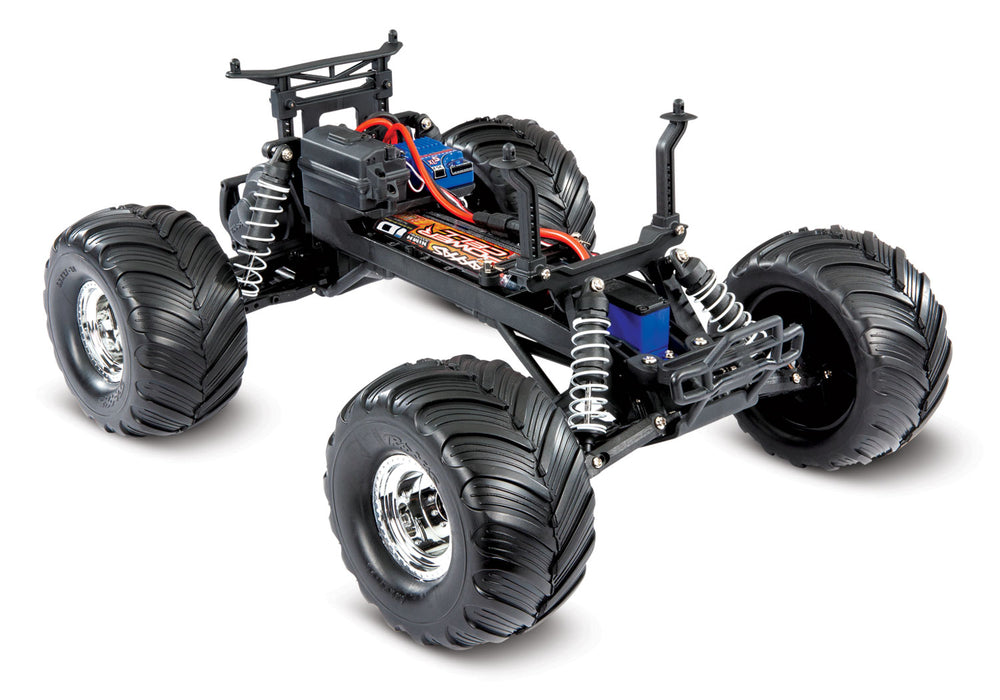

- Fiber-composite monocoque chassis

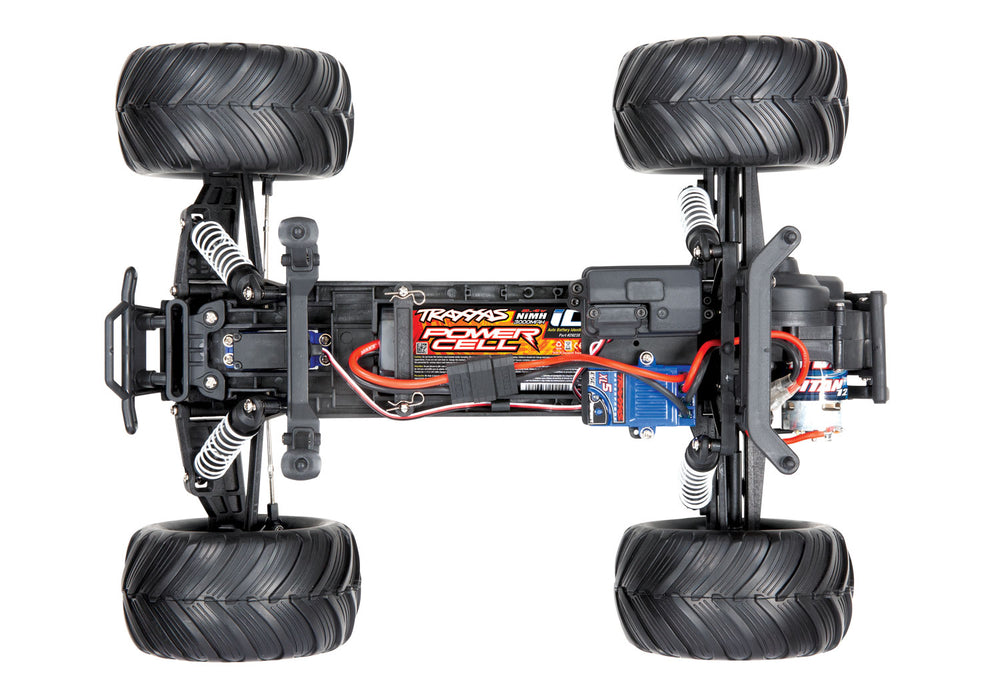

- Easy access battery compartment
- Fully adjustable Ultra Shocks™ with X-ring technology
- Powder-coated shock springs feature a new responsive spring rate
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off for superior durability
- Bright chrome dual-profile dish wheels
- Pre-glued Terra-Groove 2.2″ tires
SPECIFICATIONS:
- Length: 18.1 inches (459 mm)
- Front Track: 12.75 inches (324 mm)
- Rear Track: 12.75 inches (324 mm)
- Weight: 65.3 ounces (1.85 kg)
- Height (overall): 9.5 inches (241 mm)
- Wheelbase: 10.6 inches (270 mm)
- Front Shock Length: Long
- Rear Shock Length: XX-long
- Front Tires: Terra-Groove 2.2″
- Rear Tires: Terra-Groove 2.2″
- Front Wheels: Bright chrome dish (dual profile)
- Rear Wheels: Bright chrome dish (dual profile)
- Electronic Speed Control: XL-5™ electronic speed control
- Motor (electric): Titan® 12T 550 (12-turn)
- Steering Servo: 2056 high torque waterproof
- Transmitter: TQ 2.4 GHz radio
- Receiver: 6519 3-channel micro
- Gear Ratio (internal): 2.72 (final drive: 12.34)
- Differential Type: Planetary
- Gear Pitch: 48 pitch
- Transmission: Magnum 272™
- Steering: Single point
- Chassis Type: Modified tub
- Chassis Material: Composite Nylon
- Top Speed: 30+mph (With 7-cell battery and included optional 19-tooth pinion gear)
- Skill Level: 1
- Battery Tray Dimensions: 164 mm x 46 mm x 26 mm (Battery expansion kit available)
- Included Charger: 4-amp USB-C fast charger
- Included Batteries: Traxxas 7-cell NiMH battery with iD®
- Required Batteries: 4 "AA" (transmitter)
- XL-5™ (WATERPROOF) ESC SPECIFICATIONS
- Input voltage: 7.2 - 8.4 V (NiMH), 7.4 V (LiPo)
- Case Size: 31 mm x 55 mm x 15.5 mm
- Weight: 2.44 ounces
- Motor Limit:
- 15-turns (540 Size) Properly Geared
- 12-turns (550 Size) Properly Geared
- On Resistance Forward: 0.007 ohms
- On Resistance Reverse: 0.014 ohms
- BEC Voltage: 6.0 volts
- BEC Current: 1 amp
- Power Wire: 14 gauge / 5 inches
- Input Harness Wire: 26 gauge / 9 inches
- PWM Frequency: 1600 Hz
- Low Voltage Detection (LVD): 2-stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode: 50% FWD, 100% brakes, 50% REV (Patented)
- Single-button setup: Traxxas EZ-Set®
