Traxxas 3440 Velineon VXL-4S Waterproof ESC Motor Combo
$229.95 - $229.95
$229.95
$229.95 - $229.95
$229.95
by Traxxas

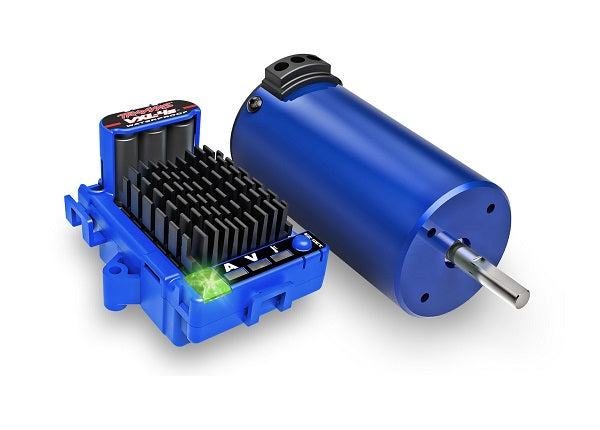

Traxxas 3440 Velineon VXL-4S Waterproof ESC Motor Combo

The Velineon® 4s brushless power system takes your RC experience to the extreme with the monstrous torque of the Velineon 540XL brushless motor and innovative VXL-4s™ ESC. New High-Resolution Linear Braking provides the most intuitive and precise braking ever offered by Traxxas. Outfitted with built-in telemetry and a selectable 6.0 or 7.4-volt BEC, the VXL-4s transforms 14.8 volts of LiPo power into staggering performance. An extra large heat sink allows the ESC to run cooler for extended run times.

The Velineon VXL-4s features a high-voltage BEC with a 6.0 volt setting for standard servos and powerful 7.4 volt setting for high-performance servos like the Traxxas 2280, 2255, and 2250. Powerful brushless servos like the High-Torque 600 gain over 20% more torque at 7.4 volts with faster transit times. Selecting a voltage is quick and easy using the Traxxas Link app.

Velineon VXL-4s High-Resolution Linear Braking is a patent-pending Traxxas innovation that delivers next-level smoothness and precision. The High-Resolution communication loop allows instant response to the driver’s input for powerful and intuitive linear braking feel. From feather touch speed correction to full-power late braking to overtake on the inside line of a corner, the driver stays fully connected and in control for a competitive edge on the track. The optional Traxxas Link app adds easy control over brake force to tune for different needs and conditions.

FEATURES:

  • VXL-4s Electronic Speed Control
    • 2s–4s LiPo compatible
    • Real-time telemetry via Traxxas Link™
    • Selectable 7.4-volt high-voltage BEC
    • High-Resolution Linear Braking
      • More precise than conventional systems
      • Superior brake modulation on the track
    • Large heat sink accepts accessory cooling fan (3340)
    • Three programmable drive profiles
      • Sport Mode - Forward / Brake / Reverse
      • Race Mode - Forward / Brake
      • Training Mode™ - 50% Forward / Brake / 50% Reverse
    • Traxxas EZ-Set® one-button setup
    • Integrated protection circuits
    • LED status lights
  • Velineon 540XL Brushless Motor
    • Long format brushless motor
    • 4-pole 2400 Kv
    • 5 mm output shaft
    • Low-maintenance design

SPECIFICATIONS:

  • VXL-4s Waterproof ESC
    • Input Voltage: 2s-4s LiPo (7.4 V - 16.8 V)
    • Case Size: 2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
    • Weight: 4.20 ounces (119 g)
    • BEC Voltage: Selectable 6.0 or 7.4 volts
    • Motor Connectors: Traxxas 6.5 mm bullet connectors
    • Battery Connectors: Traxxas High-Current Connectors
    • Thermal Protection: Two-stage thermal shutdown
    • Ports: RX input, auxiliary fan connector
  • Velineon 540XL
    • Motor Type: 2400 Kv sensorless brushless
    • Weight: 11.18 ounces (317 g)
    • Length: 3.58 inches (91 mm)
    • Diameter: 1.41 inches (36 mm)
    • Connector Type: 6.5 mm bullet connectors
