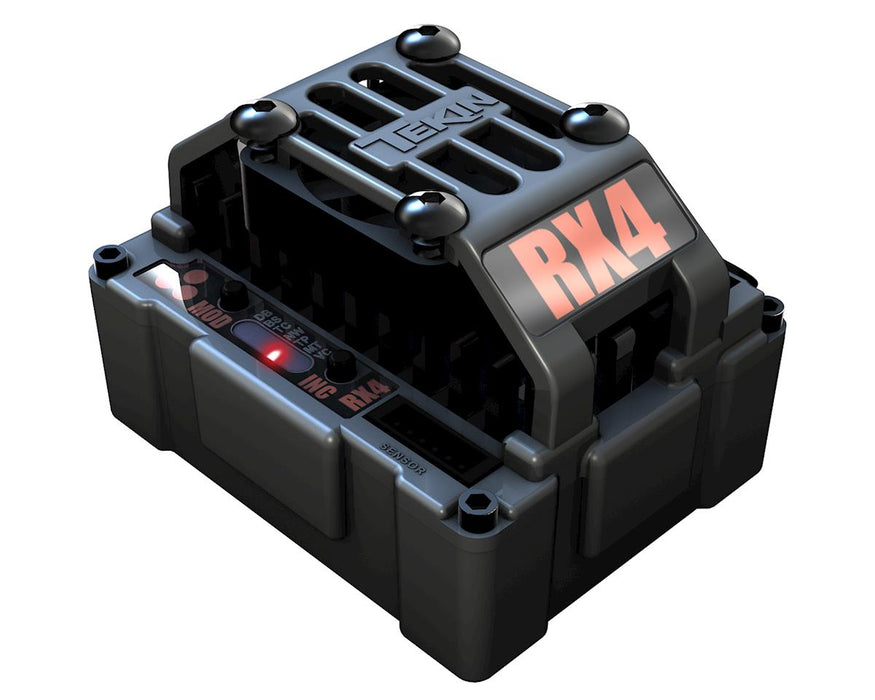

Tekin TT2000 RX4 Waterproof Element Proof Brushless Sensored Crawler ESC

Tekin’s RX4 is a versatile ESC designed for sensored, sensorless, brushed and brushless motor setups. With massive power handling capabilities, a waterproof design and all the customization features you’d expect from a Tekin ESC, the RX4 has you covered no matter the situation.

Not only reliable, this ESC has a host of built in features like a High Voltage BEC, Drag Brake, Data logging and the ability to run either Brushed or Brushless motors. Not to mention the RX4 housing is a thick-walled, reinforced Hardbox design able to withstand the elements and rough environments that come with true Offroad adventuring.

Designed to run Tekin ROC 412 and ROC 412HD motors:

• 2S Lipo up to 4400kV
• 3S Lipo up to 3100kV
• 4S Lipo up to 2300kV


Features:

• Easily Access Programming, Anywhere, Anytime

• QuickTune One-Touch Programming

• HotWire Compatible

• D2: Dual Drive Mode Technology

• On-Board Temperature Indicator

• HDAC: High Density Copper FET Boards

• Solder Posts for Easy Wiring

• Heatsink and Fan w/ Auto-on-Temp Sensing

• One-Touch Radio Calibration

• High Voltage BEC

• DATA Logging

• Waterproof hardbox design


Programmable Features:

• DB: Drag Brake (13 steps)

• BS: Brake / Reverse Strength (13 steps)

• LM: Torque Limiter (7 steps)

• NW: Neutral Width (13 steps)

• TP: Timing Profiles 5 Presets - 2 Custom

• MT: Brushless Modes: Fwd/Brk, Fwd/Rev, Rev Delay; Brushed: Fwd/Brk, Fwd/Rev, Fwd/Rev Delay

• VC: Voltage Cutoffs: 2S, 3S, 4S and Custom

• Extensive Tuning via Tekin HotWire (sold separately; TEKTT1451)

• Custom Throttle Profiles

• Adjustable Throttle and Brake Minimums

• Adjustable Throttle and Brake Frequencies


Specifications:

• Controls: Forward/Brake/Reverse

• Input Voltage: 2S to 4S Lipo

• Continuous Current: 240 Amps *per phase

• BEC: HV 6.0V-7.4V / 8 Amp Switching

• Motor Type: Brushed/Brushless, Sensored/Sensorless; 2Pole or 4Pole Motors

• Motor Limit Brushless/Brushed Mode: No Limit

• Dimensions: 1.6 x 2.0 x 1.4” / 40.6 x 50.8 x 35.5mm

• Weight Approx: 2.65oz / 75.5grams
