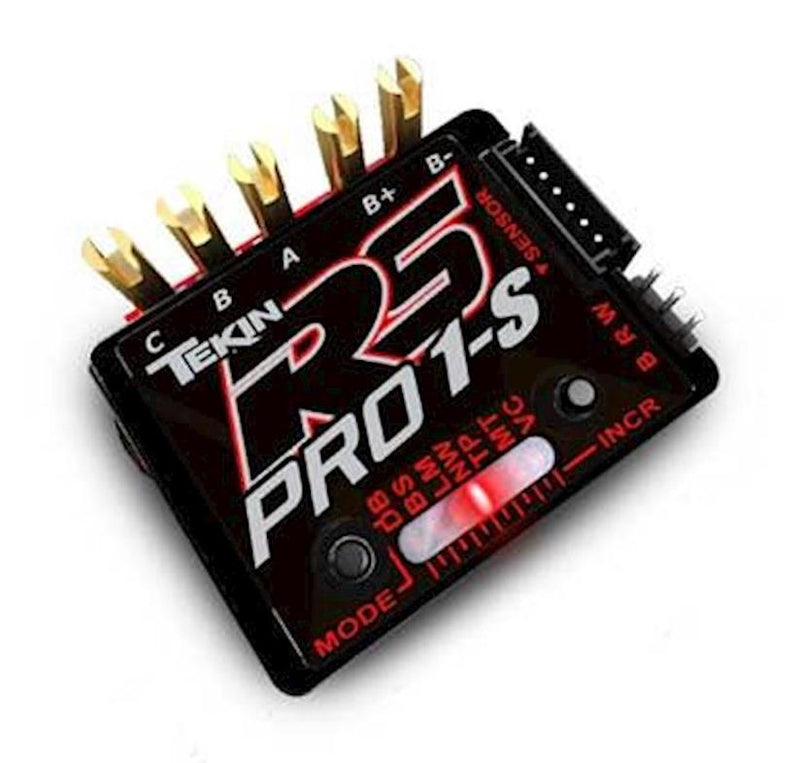

Tekin TT1161 RS Pro 1S Black Edition Brushless Sensored/Sensorless ESC

by Tekin
Save 34%
Original price $350.00
Current price $229.99

Tekin TT1161 RS Pro 1S Black Edition Brushless Sensored/Sensorless ESC

The Tekin RS PRO 1S Black Edition utilizes both hardware and software advances recently developed for Tekins latest ESC lineup. With its industry-leading Ultra Low Resistance you can be sure that your motor is getting all the power you can give it. More power, smooth control and reliability you can count on: the RS PRO Black Edition is engineered for performance.

The RS PRO Black Edition 1S was specifically designed for 1S 1/12 Scale Spec Classes to take full advantage of the ULR circuit design. ULR FlexWire is included with every Black Edition ESC. Pair the RS PROs with a SPEC-R motor for the ultimate Ultra Low Resistance system.

Features:

  • ULR: Ultra Low Resistance Design
  • Specifically Designed for Spec & Stock Racing
  • QuickTune™ One Touch Programming
  • Adjustable Throttle and Brake Frequencies *
  • High Voltage Programmable BEC *
  • HotWire™ Programming Port *
  • Data Logging Capability *
  • Sensor Checker
  • On-Board Temperature Indicator
  • ESC Self Diagnostics with Error Codes
  • Fully Proportional Forward/Brake/Reverse
  • Brushless and Brushed Motor Drive
  • Sensored or Sensorless Operation
  • LiPo Safe with Custom Voltage Cutoffs
  • Sensor Plug for Precise Commutation
  • Lightweight Chassis Design
  • HDAC: High Density Copper PCB's
  • Ultra-smooth and Precise Throttle and Braking Control

* requires HotWire™ sold separately.

Specifications:

  • Controls: Forward/Brake/Reverse
  • Input Voltage RS Pro 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
  • Motor Limit Brushless Mode 2S: 36mm Can - 2-Pole
  • Motor Limit Brushless Mode 3S: 36mm Can - 2-Pole
  • Motor Limit Brushed 2S: 36mm Can - 540 & 550
  • Motor Limit Brushed 3S: 36mm Can - 540 & 550
  • Amperage: 480Amps per phase*
  • ON Resistance: .000096ohm*
  • BEC: 6.0 / 7.4V @ 5.5amps
  • Weight: 1.23oz / 35g
  • Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
