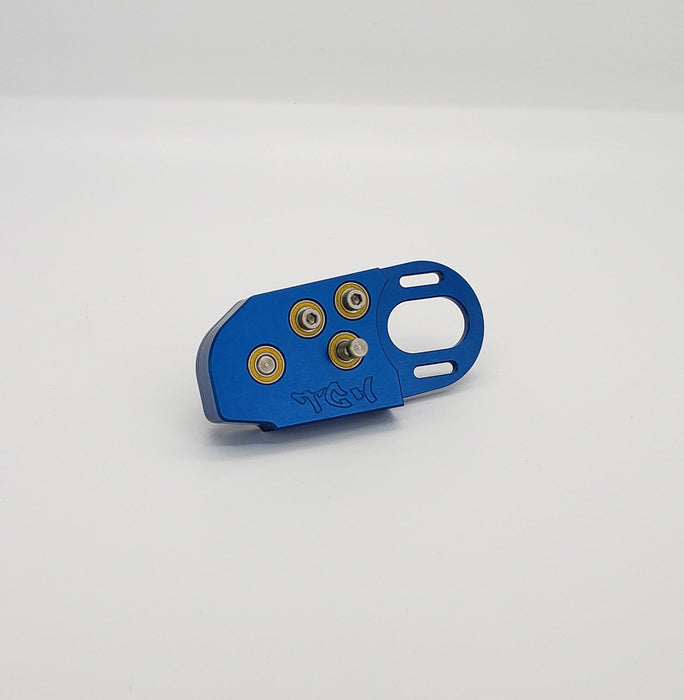

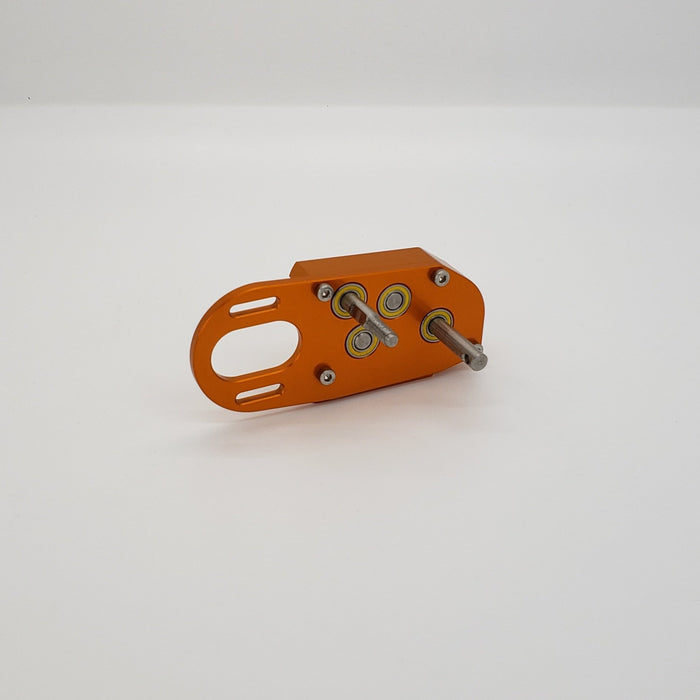

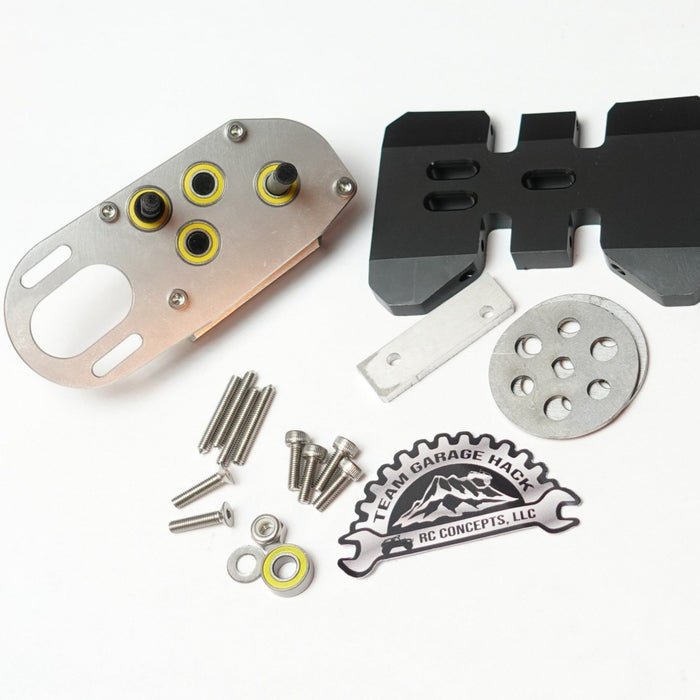

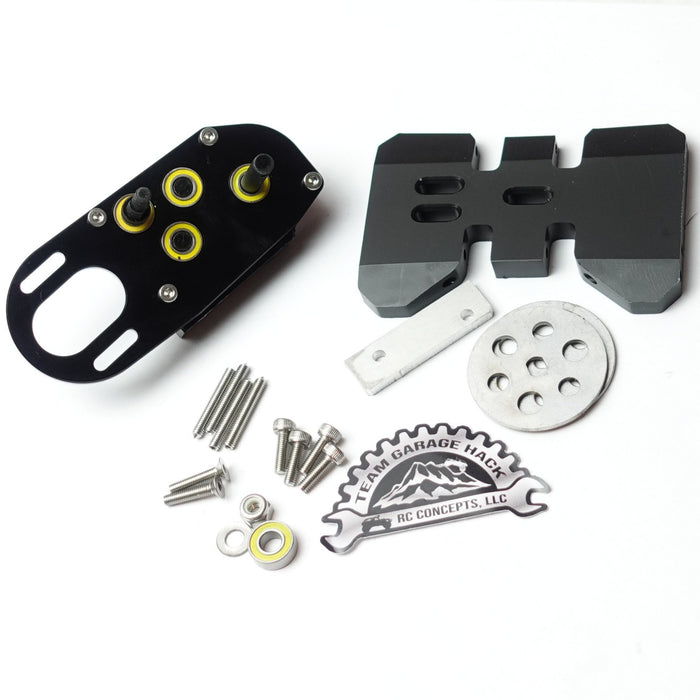

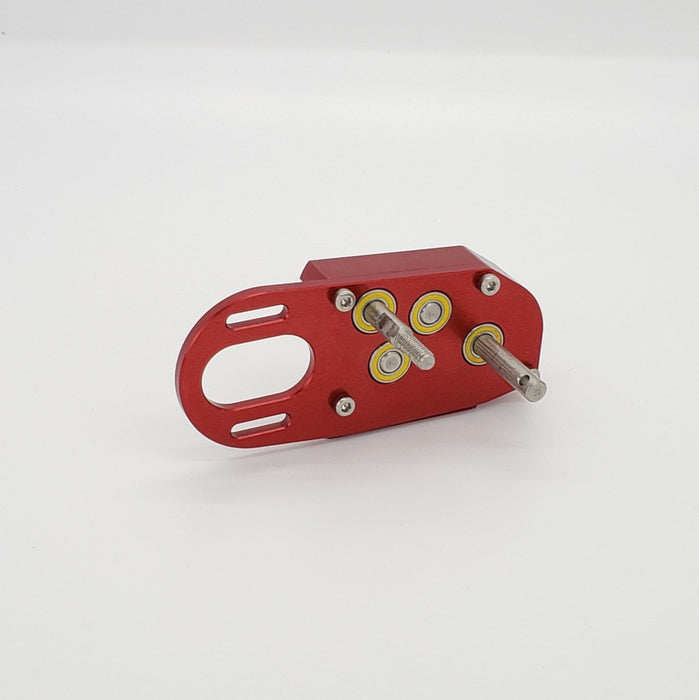

Team Garage Hack 2.Low E.B.R. Edition

FEATURES:

• E.B.R. = Elizabeth "BETSY" Ross
• Case and shafts PROUDLY MANUFACTURED in the U.S.A.
• Case is 13.5MM THIN x 36MM TALL w/out spur assembly
• Weight: 5.1 oz including hardware and skid
• Complete assembled transmission
• AVID RACING CONCEPTS bearings
• Pre-greased with COW RC UDDER BUTTER
• CNC 6061-T6 case and motor plate
• CNC Machined shafts
• CNC Machined case hardened gears
• APPROX. 30% Overdrive
• 1.94:1 Front transmission output
• 2.65.8:1 Rear transmission output
• TGH Slipper Plates included
• Spur Gear and Slipper Pads NOT INCLUDED
• Recommended for use with AX31027 56T 32P spur gear or similar
• Recommended for use with AX31068 Slipper Pads
• Recommended for use with RRP0100 10T motor pinion
• 10.9:1 front output with recommended pinion/spur
• 14.8:1 rear output with recommended pinion/spur
• TGH Slotted DELRIN Skid
• Standard SCX10/10II skid chassis mounting pattern
• 78MM wide
• Includes 3.2MM spacer to accommodate our thinner skids
• May require rear lower link length adjustment due to improved geometry. Recommend TRA5525 rod ends to lengthen links, can be trimmed as necessary.
• Skid mounting hardware

Team Garage Hack or affiliates, assumes no liability of damage caused from bashing, excessively heavy trucks, OR EXCESSIVE FUN!
