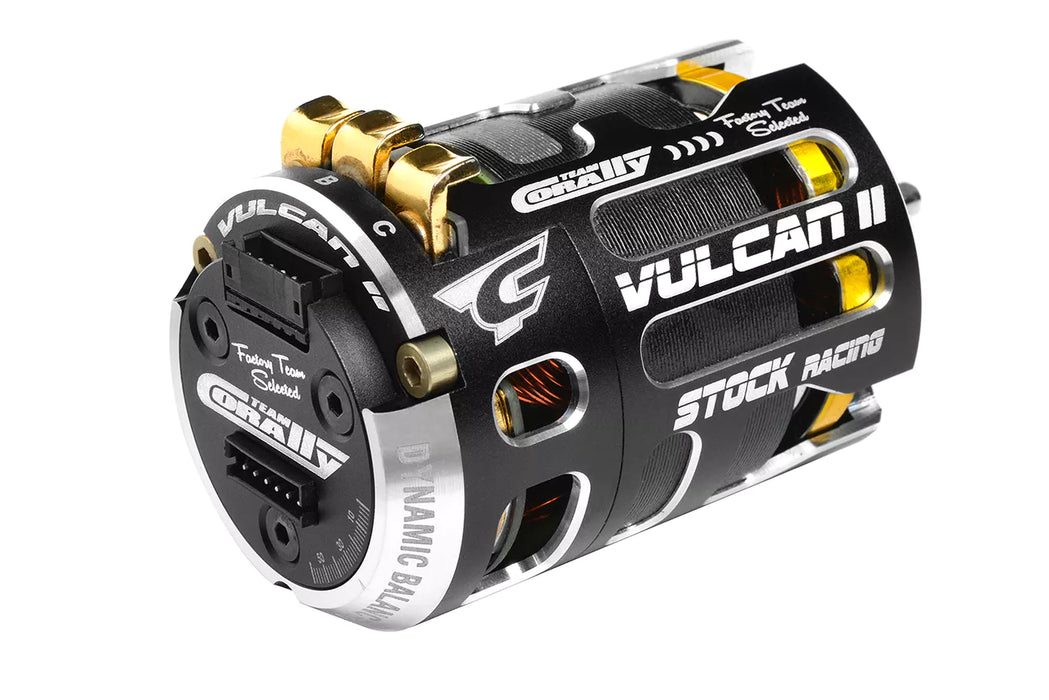

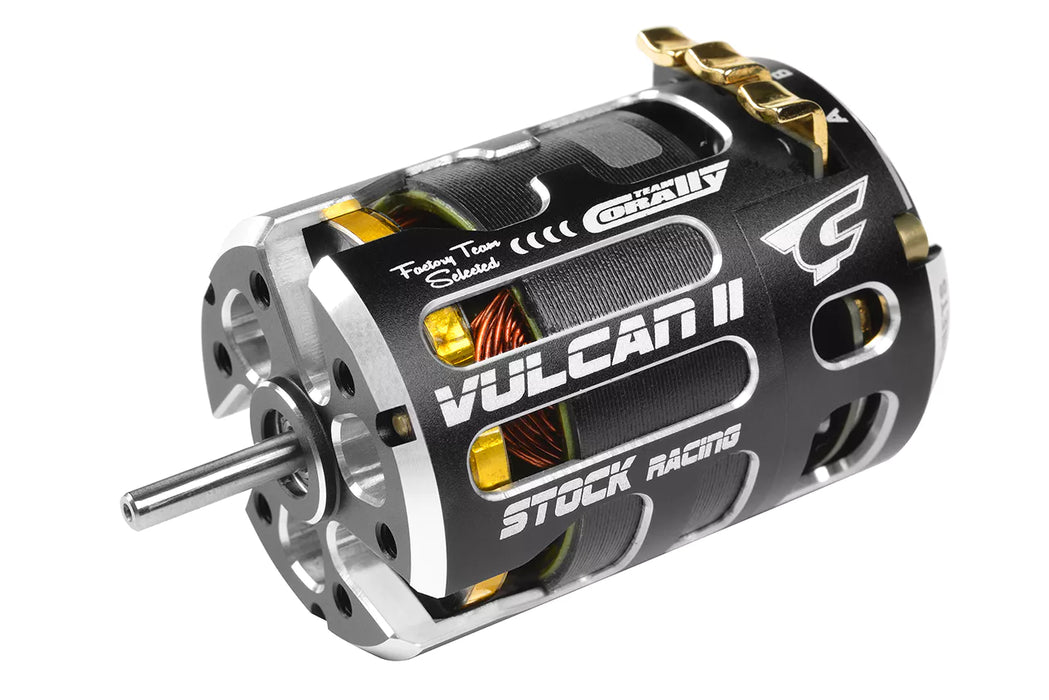

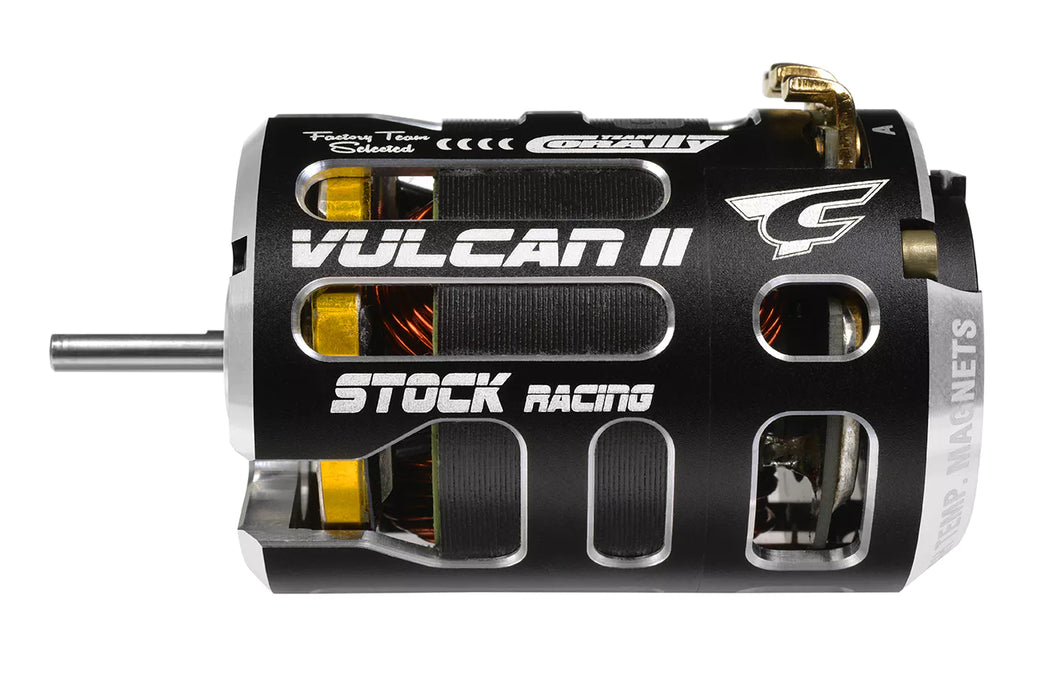

Team Corally C-61174 Vulcan II Stock 25.5T Brushless Sensored Motor

Vulcan II Stock 25.5T Brushless Sensored Motor

FEATURES:

• Motor - Input Voltage Range (V): 1S - 3S Li-Po
• Motor - IO (A): 0,8
• Motor - KV (Rpm/V): 1750
• Motor - Max. Amps: 26
• Motor - Poles: 2-Pole Rotor
• Motor - Resistance (Ohm): 0,1
• Motor - Rotor Size: OD 12.5mm x ID 7.2mm x L 25.2mm - C-16186
• Motor - Size ID: 540 Type
• Motor - Stator: 3-Slot Stator - 0.2 Steel Laminations
• Motor - Timing: Adjustable Timing
• Motor - Turns (T): 25,5
• Motor - Type: Brushless - Sensored
• Motor - Watts: 83

SPECIFICATIONS:

• Motor - Dia. ø (mm): 35,8
• Motor - Length (mm): 52
• Motor - Mounting Holes: M3 @ 25.4 mm
• Motor - Shaft Dia. ø (mm): 3.17 mm
• Motor - Shaft Length (mm): 13

APPLICATION:

• 1/10 Buggy 2WD
• 1/12 Pan Car
• 1/10 Pan Car
• 1/10 Touring
• 1/10 Buggy 4WD
