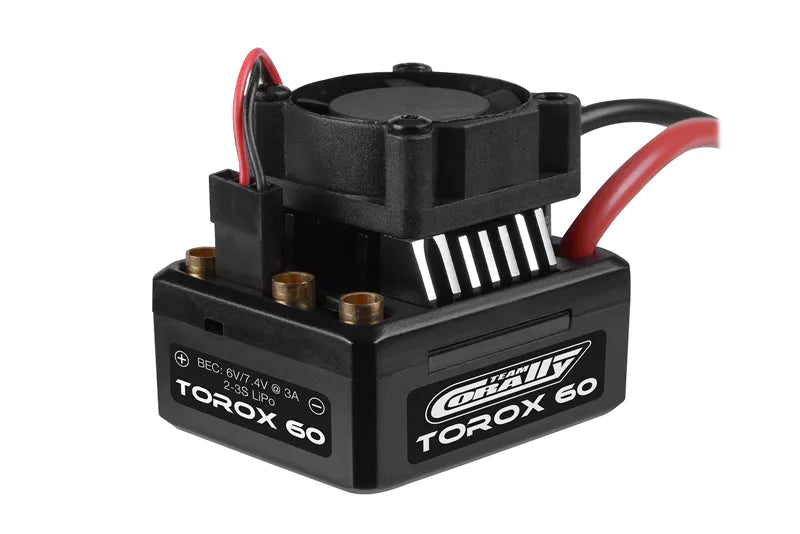

Team Corally C-54010 Torox 60-Brushless ESC 2-3S XP Versions

Torox 60-Brushless ESC 2-3S XP Versions

SPECIFICATIONS:

• Max. Cont. Current (A): 60 A
• Motor Limit: 2S LiPo = 6000 Kv (3652 size motor) 3S LiPo = 4000 Kv (3652 size motor)
• Input Voltage (V) min. - max.: 5-12.6 V
• Max. Current (A): 450 A
• Length (mm): 39.4 mm
• Nr of Li-xx Cells: 2-3S
• Width (mm): 32.8 mm
• Nr of Ni-xx Cells: 6-9 Cell NiMH
• Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
• Height (mm): 23.1 mm (w/O Fan)
• BEC Voltage (V): 6-7.4 V programmable
• BEC Current (A): 3 A
• Weight incl. wire (g): 72 g
• Programmable: Yes
• Programming Card: Hobbywing LED (optional)
• Throttle Mode: Forward / Reverse programmable Reverse lockout
• Drag Brake: 0-16% programmable
• Battery Mode: NiMH/LiPo programmable
• Lipo Cut off: programmable
• Thermal Protection Temperature: 105 Degrees C
• Water Protection: Yes
• Cooling Fan: 25x25x10 mm
• Connector (Motor): 3.5 mm female
• Connector (Battery): T-connector
• Battery wire size: 14 AWG
• Car Type Use: 1/10th scale
