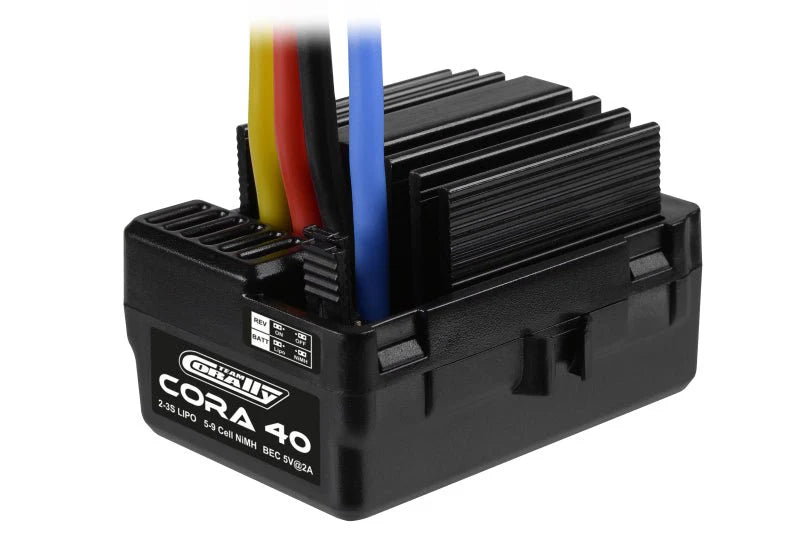

Team Corally C-54001 CORA 40amp Brushed ESC 2-3S fits SP Versions

CORA 40amp Brushed ESC 2-3S fits SP Versions

SPECIFICATIONS:

• Max. Cont. Current (A): Forward: 40 A / Reverse: 20 A
• Motor Limit: 2S = 12T 3S = 18T
• Input Voltage (V) min. - max.: 5-12.6 V
• Max. Current (A): Forward: 180 A / Reverse: 90 A
• Resistance: Forward: 0.002 Ohn / Reverse: 0.004 Ohm
• Length (mm): 46.5 mm
• Nr of Li-xx Cells: 2-3S
• Width (mm): 34 mm
• Nr of Ni-xx Cells: 5-9 Cell NiMH
• Motor Type: Brushed
• Height (mm): 28.5 mm
• BEC Voltage (V): 6 V
• BEC Current (A): 2 A
• Weight incl. wire (g): 65 g
• Programmable: Jumper
• Throttle Mode: Forward / Reverse programmable Reverse lockout
• Battery Mode: NiMH / LiPo
• Cut off voltage: NiMH mode = 4.5 V
• Lipo Cut off: 2S = 6.5 V 3S = 9.75 V
• Thermal Protection Temperature: 105 Degrees C
• Water Protection: Yes
• Connector (Motor): 4 mm
• Connector (Battery): Tamiya style
• Motor wire size: 16 AWG
• Battery wire size: 16 AWG
• Car Type Use: 1/10th scale
