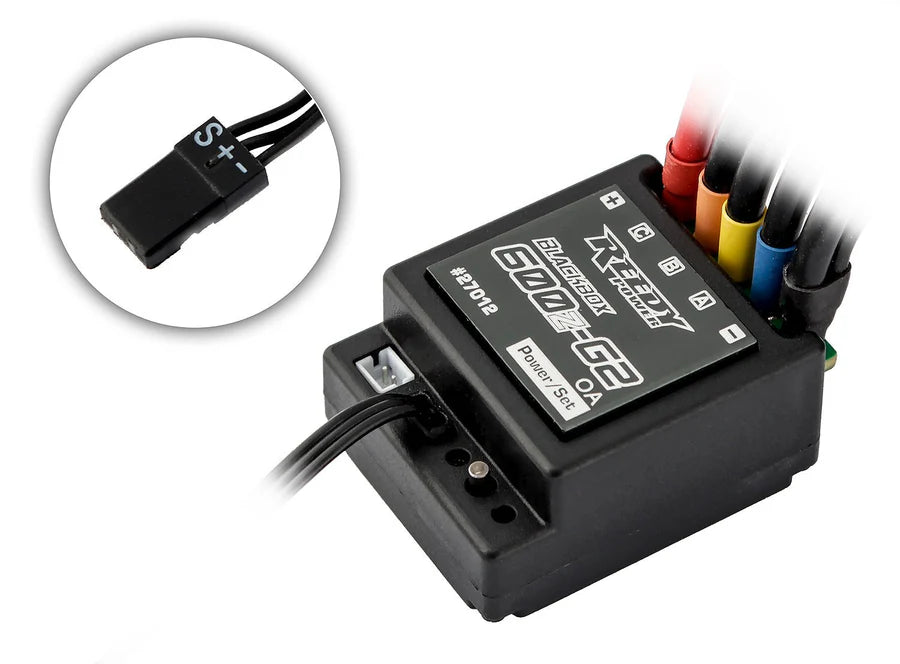

Team Associated 27012 Blackbox 600Z-G2 Zero-Timing Competition Brushless ESC

Reedy's Blackbox 600Z-G2 Zero-Timing Competition ESC is an excellent option for entry-level racers thanks to its economical price, versatility, race-proven performance, and improved durability. Excellent throttle and brake feel, a wide range of adjustability, and upgraded hardware make the Blackbox 600Z-G2 suitable for a variety of racing applications, including entry level and cost-controlled "spec" race programs that mandate a specific ESC.

When combined with Sonic 540-FT motors, the pairing also offers the perfect solution for clubs and tracks that are striving to improve entry-level participation or introduce cost-controlled classes for racers of all skill levels.

FEATURES:

• Lightweight plastic case with compact footprint
• Low-profile heat sink
• Fully adjustable brake and throttle functions
• On-board, single-button programming
• Optional Programmer2 programming
• Zero-timing R.O.A.R.-approved software (pending)
• Low-resistance circuitry
• Precision throttle and brake control
• Solder tabs for easy wire placement
• Silicone power wires
• Compact external capacitor

SPECIFICATIONS:

• Voltage Input: 2S LiPo
• On Resistance: 0.0018
• Continuous Current: 60A
• Dimensions: 40.2 x 31.0 x 18.8mm
• Weight w/o Wires: 37g
• Motor Limit: 13.5T

Adjustable Settings:

• Operation Mode: Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation
• Drag Brake: Adjust automatic braking strength when the throttle trigger is returned to neutral
• Power Profile: Increase or decreases punch
• Drive Frequency: Adjust to create a smoother or more aggressive throttle feel
• Brake Frequency: Adjust to create a smoother or more aggressive brake feel
• Restore Default: Restore the factory default settings
