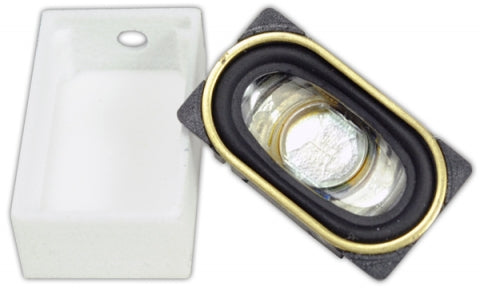

TCS 1710 UNIV-SH4-C Speaker Housing

Universal speaker housing for the TCS 25mm x 14mm speaker (included). This simple, closed design channels both the front and rear audio out the front of the speaker housing. These micro speakers do not work without being mounted to an enclosure (like this one) or to a piece of the locomotive shell.

SPECIFICATIONS:

• Dimensions: 1.06" x 0.63" x 0.35" or 27mm x 16mm x 9mm
• Sound Pressure Level: 81±3 Decibels
• Effective Frequency Band: 650Hz - 20000Hz
• Power Rating: 2W Nominal; 2.5W Peak
• DC Impedance: 8Ω±15Ω

INCLUDES:

• 1x UNIV-SH4-C Speaker Surround
• 1x 25mm x 14mm WOWSpeaker
