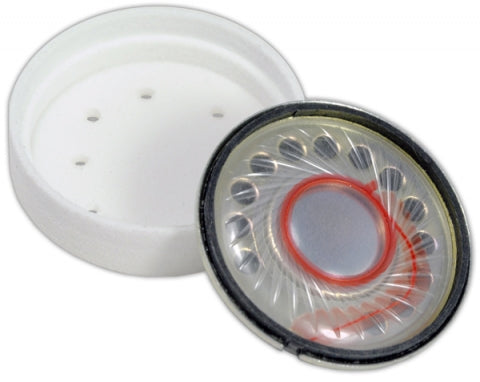

TCS 1706 UNIV-SH2-C 28mm Round 8 ohm Speaker

Universal speaker housing for the TCS 28mm round speaker (included). This simple, closed design channels both the front and rear audio out the front of the speaker housing. This housing should only be used in models with a closed upper shell, such as ones with solid fan housings, exhaust stacks, etc.

SPECIFICATIONS:

• Dimensions: 1.18" diameter x 0.28" or 30mm diameter x 7mm
• Sound Pressure Level: 92 ± 3.0 dB(A), at: 0.5 W, 10 cm, Average 800, 1,000, 1,200, and 1,500 (Hz)
• Effective Frequency Band: 550 Hz. to 5,000 Hz.
• Power Rating: 1.5W (Typical) 2.0W (Peak)
• DC Impedance: 8 Ω ± 15%, at 1.0 V 1,000 Hz.
