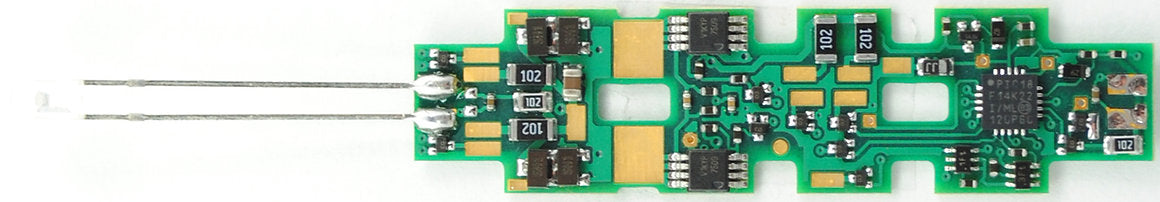

TCS 1481 N Scale K0D8-E 8 Function DCC Decoder for Kato N Scale PA-1 E8/9

The K0D8 is a N-scale drop-in decoder for Kato locomotives.

SPECIFICATIONS:

• Interface Type: Drop-In
• Dimensions (L x W x H): 2.139" x 0.538" x 0.068" or 54.32mm x 13.67mm x 1.73mm
• Scale: N Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 8
• Function Rating: 80 mA
• 12V Outputs: 6
• LED Outputs: 7
• Onboard LEDs: 1
