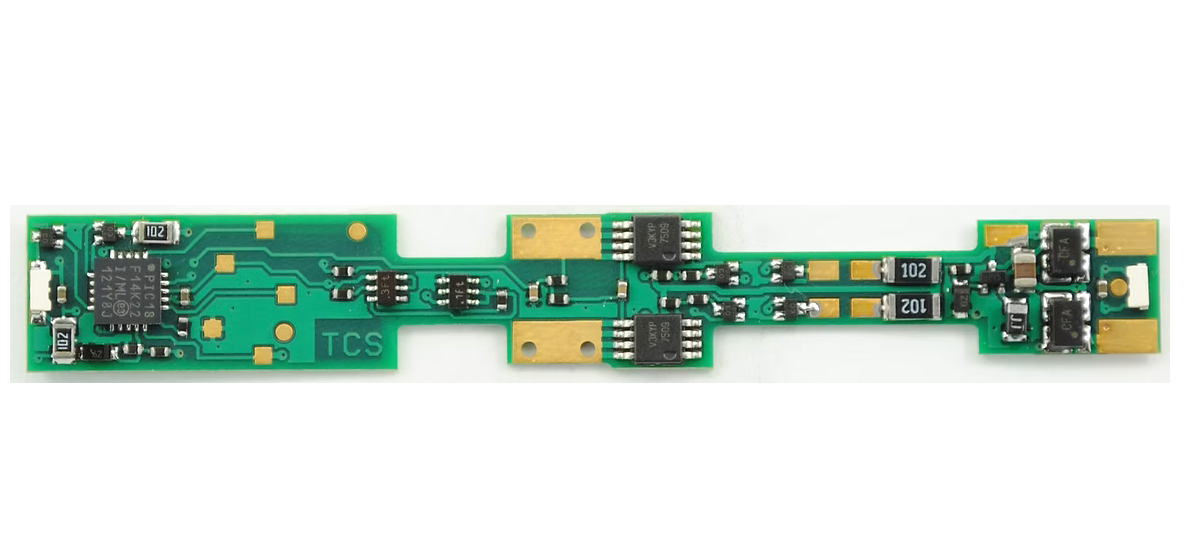

TCS 1318 N Scale K1D4-NC 4 Function DCC Decoder for Kato N Scale

SD70ACe, SD70M, SD40-2 & GG1 Electric

The K1D4 is a N-scale drop-in decoder designed for Kato and Athearn locomotives.

SPECIFICATIONS:

• Interface Type: Drop-In
• Dimensions (L x W x H): 2.705" x 0.38" x 0.059" or 68.7mm x 9.64mm x 1.5mm
• Scale: N Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 4
• Function Rating: 80 mA
• 12V Outputs: 2
• LED Outputs: 2
• Onboard LEDs: 2
