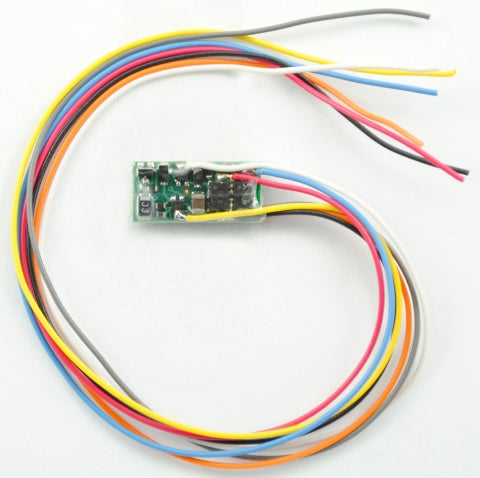

TCS 1296 Z2 2 Function DCC Decoder

Hardwire No Plug

This full featured 2 function BEMF decoder is designed specifically to meet the needs of Z and N-Scale modelers who are converting their Z and N-Scale locomotives to DCC. Included is our auto-adjusting BEMF for outstanding slow speed performance and hassle free set up. Also includes Quiet Drive for super quiet engine performance.

FEATURES:

• Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
• Quiet Drive: Super-quiet motor control for "buzz" free motor performance.
• DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• Variable Momentum: Allows you to make custom acceleration and deceleration curves.
• Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
• Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.
• Decoder Lock: Feature which prevents accidental/unwanted programming while activated.

SPECIFICATIONS:

• Dimensions (L x W x H): .51” x 0.27” x 0.11” or 12.95mm x 6.9mm x 2.79mm
• Scale: Z Scale
• Continuous/Peak: 1.0/2.0 Amp
• Total Functions: 2
• Function Rating: 60 mA
• 12V Outputs: 2
