Tamiya 58756 GF-02 Quirkhopper 1/10 Electric 4WD Monster Truck
Kit
This R/C kit depicts the Tamiya Quirkhopper, an original body design mated on the easy to build GF-02 chassis.

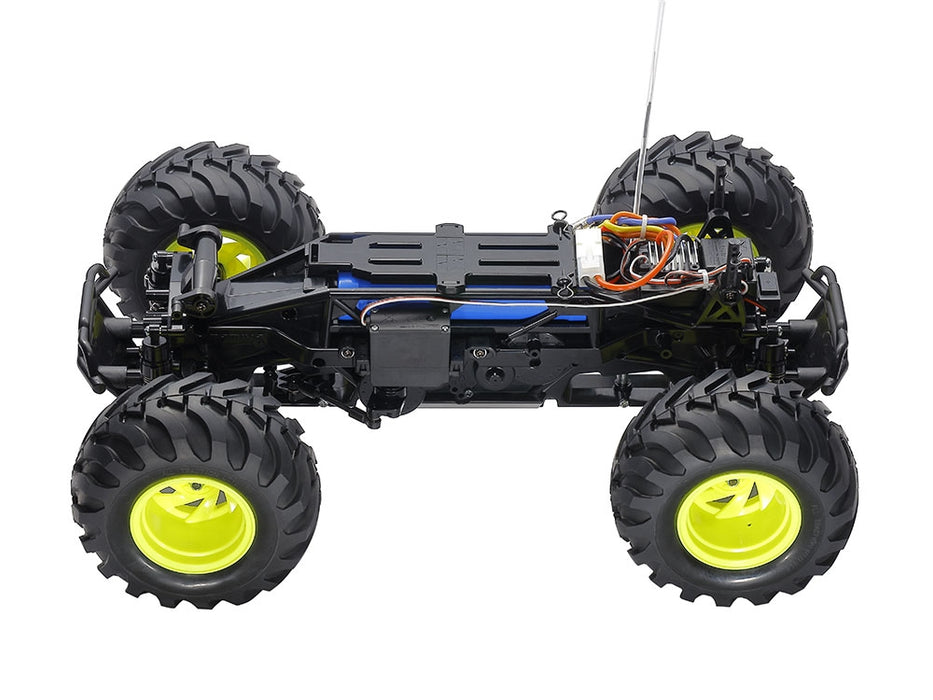

The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.
FEATURES:
- 1/10 scale R/C model assembly kit
- Length: 400mm
- Width: 280mm
- Height: 175mm
- Wheelbase 267mm
- Paint the 0.7mm thick lightweight, rigid polycarbonate body as you wish

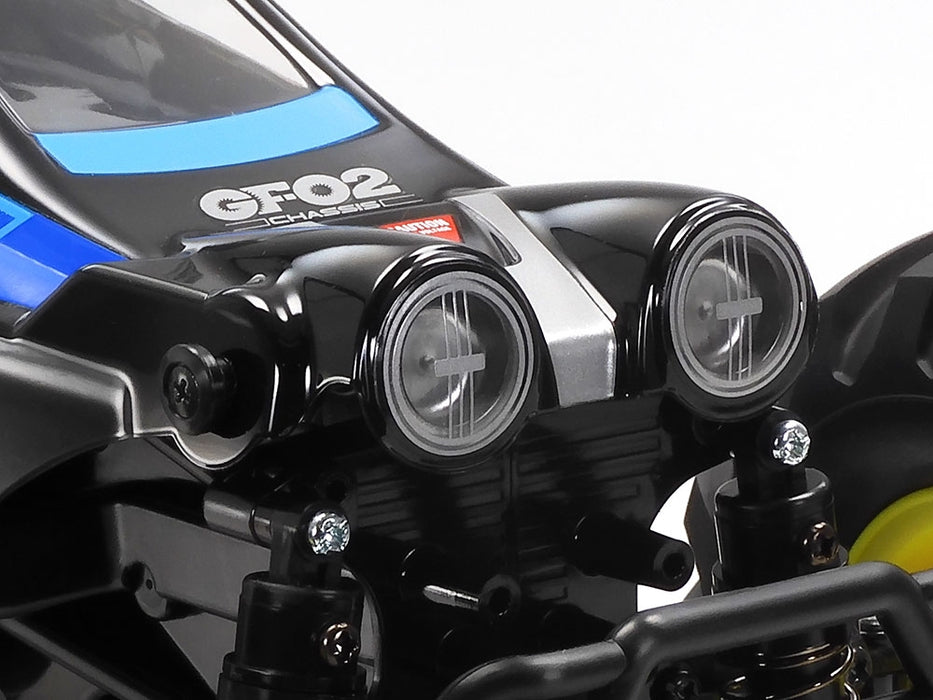

- The front of the body features two headlights, and rear has wing integrated with large air intakes
- 123mm large-diameter tires
- Includes dedicated stickers
- Includes 540-Type motor and ESC
- Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paints
SPECIFICATIONS:
- Adjustable Gear Ratio: Fixed
- Bearings: Plastic bushing
- Body Material: Polycarbonate
- Body Stickers: Included
- Chassis Material: ABS Plastic
- Chassis Type: GF-02
- Construction Type: Assembly Kit
- Differential Type: Gear
- Drive Type: 4WD
- Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
- Motor: 540-brushed type
- Shock Damper: Friction damper
- Suspension: Fully independent double wishbone
- Terrain Use: Multi-Terrain
