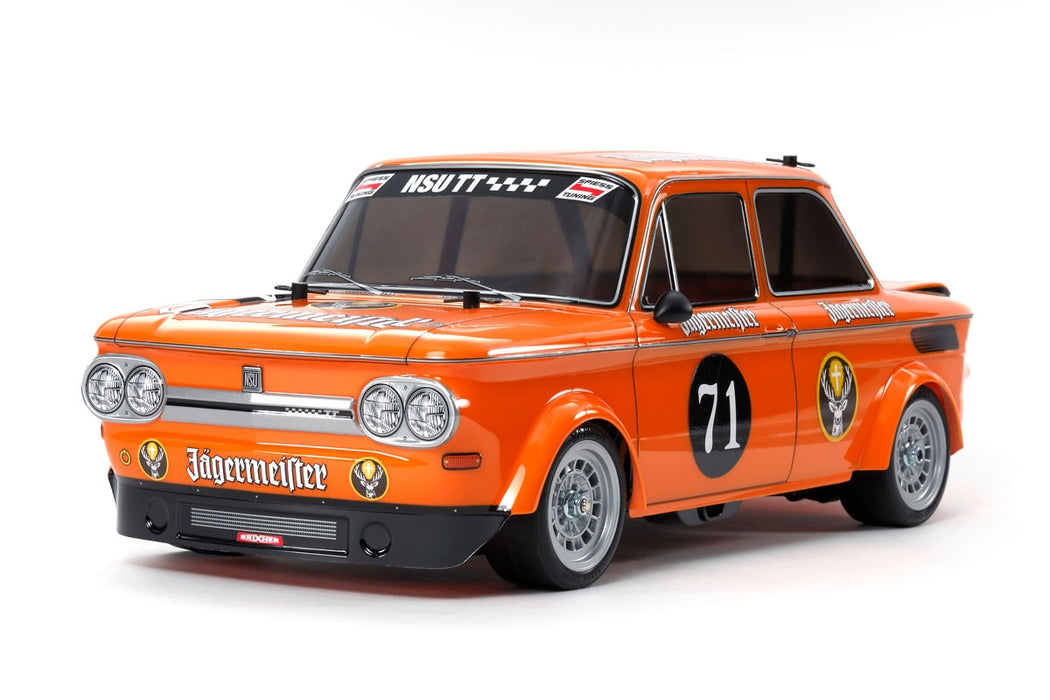

Tamiya 58649-60A 1/10 NSU TT Jagermeister FWD M-05 RC Kit

This radio control model recreates the Jägermeister-sponsored edition of the NSU TT, a race-oriented variant of the Prinz, of which almost 2,500 examples were built in the late 1960s and early 1970s by NSU Motorenwerke AG. It was powered by a variety of inline-4 engines depending upon the spec.

The faithfully recreated polycarbonate body shell sits atop Tamiya’s M-05 FWD chassis platform which is easy to assemble and provides nimble and responsive front wheel drive handling characteristics. The M-05 is a simple to build FWD (front wheel drive) machine, which allows for plenty of after-market parts to be outfitted as you grow with your skill. The lightweight, narrow semi-monocoque frame offers an optimized weight distribution and a low center of gravity. A ground-hugging 4-wheel independent double wishbone suspension and a 3-piece steering linkage ensure excellent stability during high-speed cornering.

Three wheelbase lengths (210mm, 225mm, 239mm) are possible by simply switching the position of the rear suspension parts, enabling a wide range of body choices available from Tamiya.

FEATURES:

  • 1/10 scale R/C model assembly kit. Length: 393mm
  • The M-05 chassis is a compact unit based around a lightweight monocoque and offering great weight distribution with a low center of gravity
  • This model uses the 239mm L wheelbase
  • Gold color multi-spoke wheels
  • Comes with marking stickers, plus masking stickers for use when painting the body
  • Includes 540 motor
  • Requires: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint

SPECIFICATIONS:

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic bushing
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: ABS Plastic
  • Chassis Type: M-05
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 2WD
  • Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
  • Motor: 540-brushed type
  • Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
  • Scale: 1/10
  • Shock Damper: Friction type
  • Suspension: Fully Independent Double Wishbone
  • Terrain Use: On-Road
