Tamiya 58626 1/10 Raikiri GT TT-02 RC Car Kit

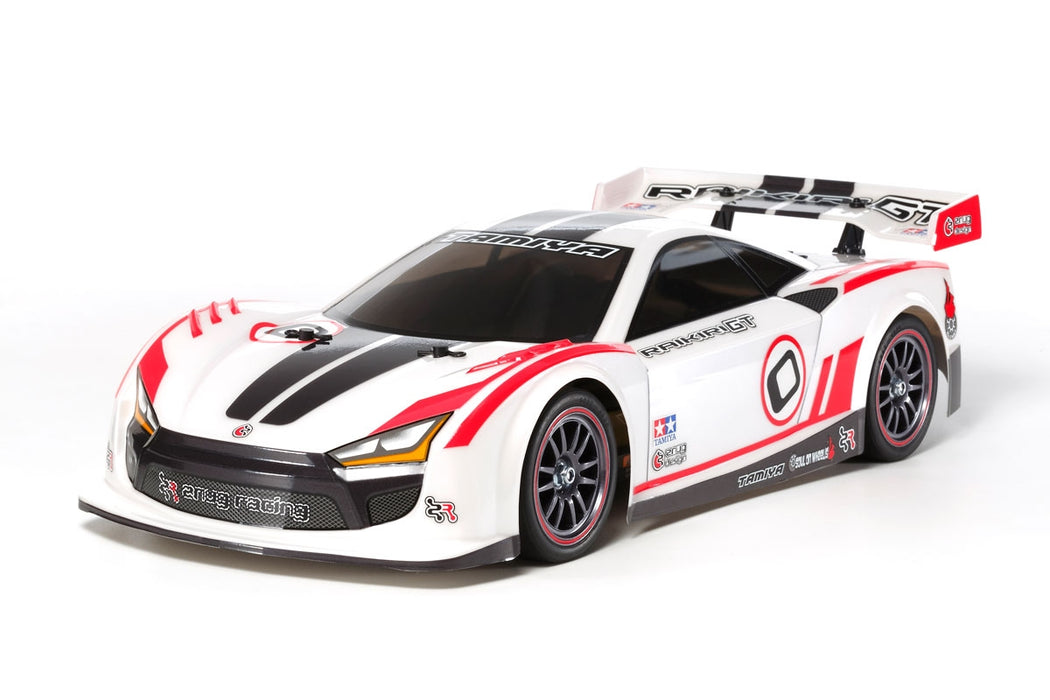

The stylish Raikiri shell is the brainchild of Japanese designer Kota Nezu of znug design, who has contributed to a number of popular Tamiya products. The wide and lowdown form of the Raikiri GT has been adapted for use on electric R/C cars, and is bound to turn heads at the local racetrack, equipped as it is with a stylish wing at the rear. Markings are also included to decorate the body.

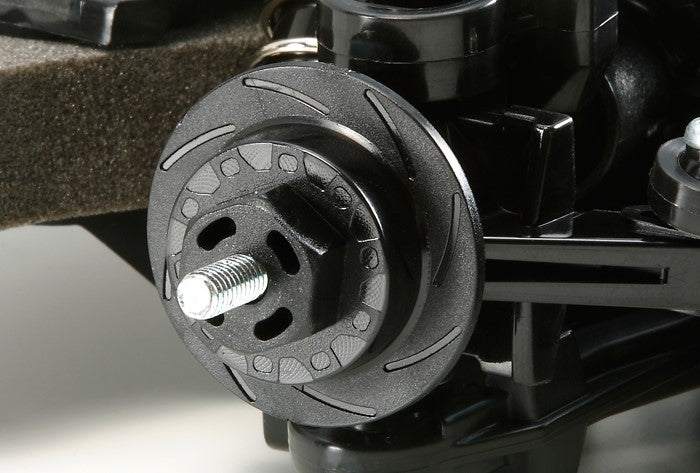

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 12-spoke wheels are paired with slick tires for a racy finish.
FEATURES:
- The TT-02 is a highly versatile and easy-to-maintain shaft-driven 4WD chassis, with easily adjustable wheelbase, tread and ground clearance settings
- Includes parts from Racing Wing Set (Item 54457)
- Gun metal color 12-spoke wheels are paired with racing slick tires
- Features newly designed body marking stickers, and masking stickers for use when painting
- A wide range of option parts is available to tune and customize TT-02 chassis cars
- TBLE-02S ESC included (May be used for brushed and brushless motor applications)
SPECIFICATIONS:
- Length: 432mm
- Width: 188mm
- Height: 114mm
- Wheelbase: 257mm
- Tire Width/Diameter: 27/67mm (Front & Rear)
- Bathtub-type Frame
- Shaft-Driven 4WD

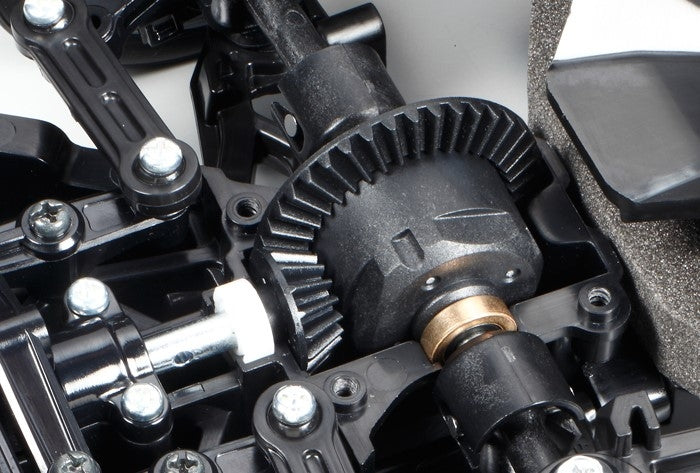

- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Dampers
- Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- Bearings: Plastic bushing
- Body Material: Polycarbonate
- Body Stickers: Included
- Chassis Material: Plastic
- Chassis Type: TT-02
- Construction Type: Assembly kit
- Differential Type: Gear
- Drive Type: 4WD
- Electronic Speed Control (esc): Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
- Motor: 540-brushed type
- Required To Complete: 2-channel radio, steering servo, 7.2-7.4volt battery & battery charger, and Tamiya PS paint
- Scale 1/10
- Shock Damper: Friction damper
- Suspension: Fully independent double wishbone
- Terrain Use: On-Road
