Tamiya 58571 Porsche 911 Carrera RSR Touring Car 4WD On-Road TT-02 Kit
Save 30% Save 30%
$258.00
$258.00 - $258.00
$258.00
$180.60
$180.60 - $180.60
$180.60
by Tamiya

Tamiya 58571 Porsche 911 Carrera RSR Touring Car 4WD On-Road TT-02 Kit

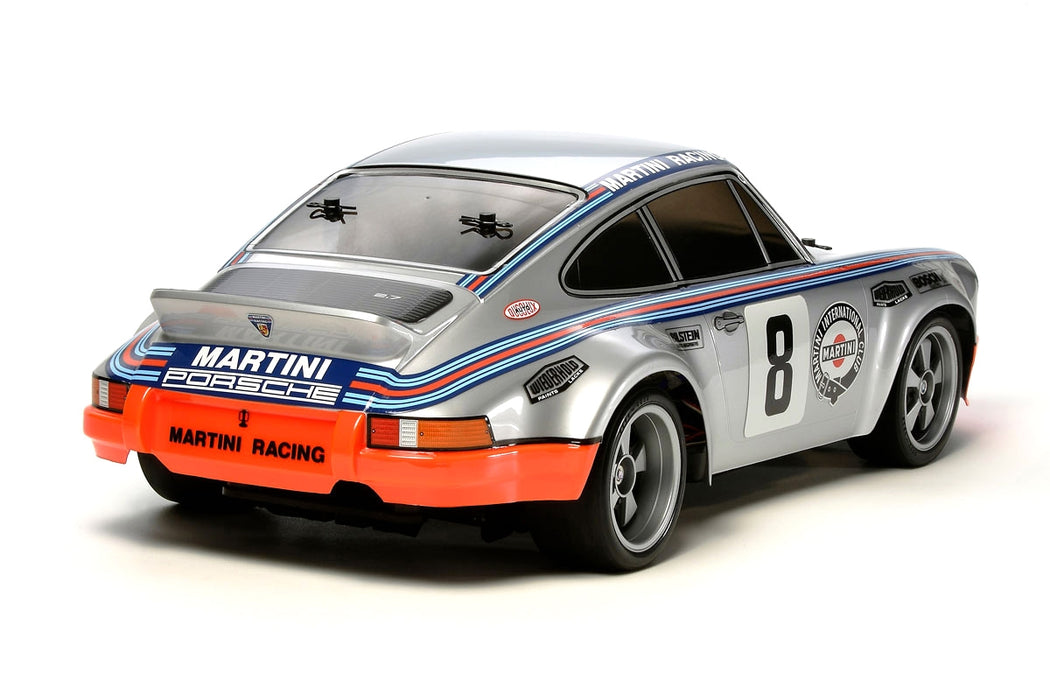

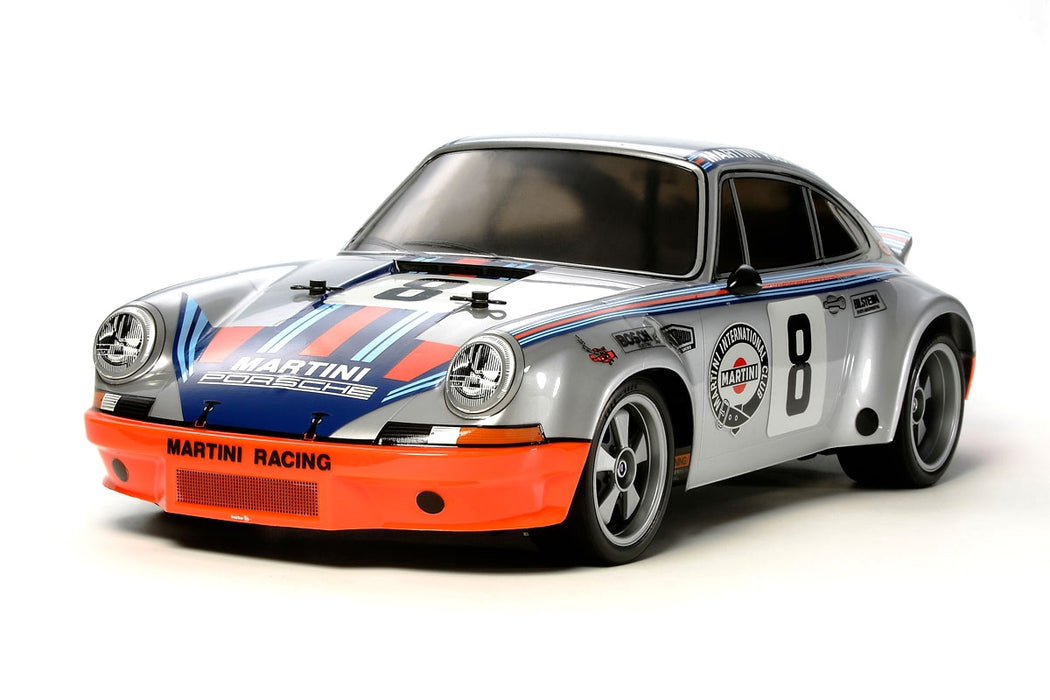

1973 was a dream year for the Porsche 911 Carrera RSR. The legendary Group 4 car won no fewer than 3 international races to go along with 7 domestic wins, and a glorious 12 months was capped with victory in the famed Targa Florio race held in Sicily. This is an R/C model assembly kit recreating the car, and the polycarbonate body accurately replicates its unmistakable form with wide front and rear fenders. The famous marking scheme can be recreated using paints and the included decals to depict the Martini stripes, numbers, sponsor logos and more. Front and rear 2-piece assembly wheels are mounted with racing slick tires for assured handling.

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

FEATURES:

  • Length: 457mm
  • Width: 204mm
  • Height: 136mm
  • Wheelbase: 251mm
  • Tire Width/Diameter: 27/67mm (Front), 32/67mm (Rear)
  • Bathtub-type Frame
  • Shaft Driven 4WD

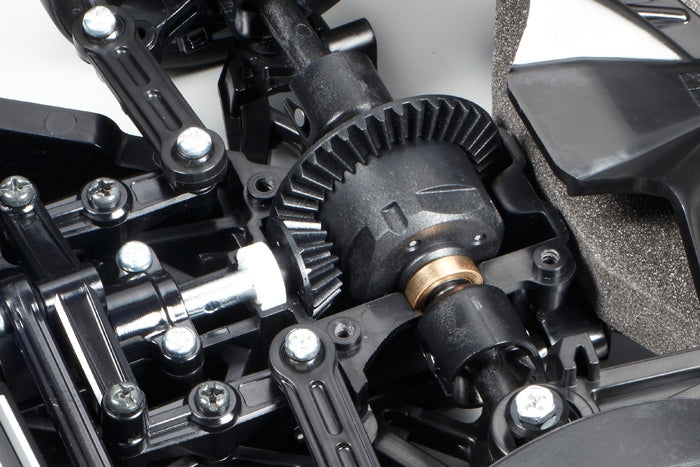

  • Front/Rear 4-Bevel Resin Differentials
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear Friction Dampers
  • Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
  • Type 540 Motor

SPECIFICATIONS:

  • Adjustable Gear Ratio: Yes
  • Bearings: Plastic Bushings
  • Body Material: Polycarbonate
  • Body Stickers: Included
  • Chassis Material: Plastic
  • Chassis Type: TT-02
  • Construction Type: Assembly Kit
  • Differential Type: Gear
  • Drive Type: 4WD
  • Electronic Speed Control (esc): Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit)
  • Motor: 540-brushed type
  • Required To Complete: 2-channel radio gear and 7.2 volt battery & charger, and Tamiya PS polycarbonate paint
  • Scale: 1/10
  • Shock Damper: friction damper
  • Easy to build entry level kit
  • Includes RS-540 Torque-Tuned Motor
  • Includes window masking seal for easy painting
  • Highly detailed body with vinyl stickers
  • Symetrical suspension components
  • Beveled main chassis for improved cornering clearance
  • Brake disc shaped wheel hubs
  • Battery compartment compatible with square shaped batteries
  • Separate parts are included to depict side mirror
  • Suspension Fully Independent Double Wishbone
  • Terrain Use On-Road
