Tamiya 58528 1/10 Subaru Impreza WRX STi 4WD XV-01 Rally Car Kit

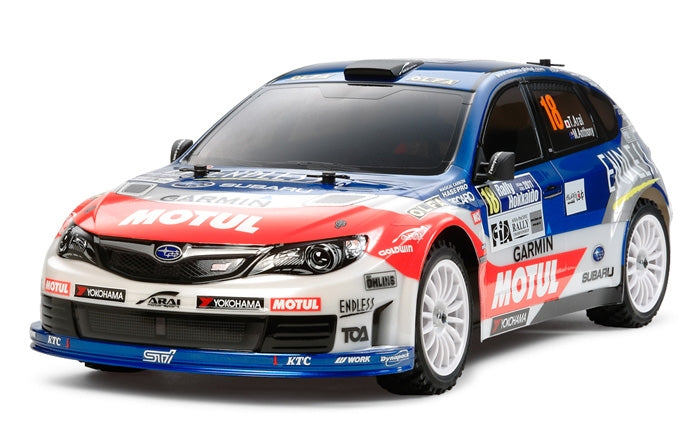

This 1/10 scale R/C assembly kit reproduces the Subaru Impreza WRX STI Team Arai which took victory at Rd.5 Rally Hokkaido during the 2011 Asia-Pacific Rally Championship. The sporty form of the Impreza has been realistically reproduced by the polycarbonate body and the roof intake and square-shaped side mirrors are depicted with separate parts for a sharp finish. The distinctive markings of the race car can be easily depicted with the included stickers. In addition, rally block tires with inner sponges are matched with 16-spoke wheels to allow you to experience dynamic R/C rally driving.

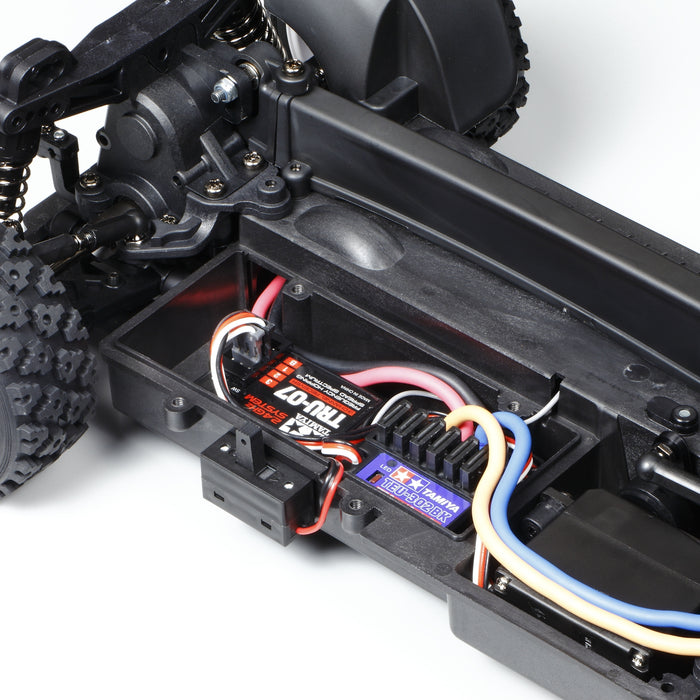

The XV-01 chassis offers exciting R/C driving action on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with the gearboxes, drive belt, battery, and R/C unit areas protected by covers against dirt and debris. Holes in the bottom of the chassis further help remove any debris which manages to get onboard to ensure unhindered off-road performance. In addition, detachable wheel well liners help prevent mud and gravel intrusion. Gear differential units enable customization with different viscosities of differential oils.
SPECIFICATIONS:
- Length: 434mm
- Width: 188mm
- Height: 150mm
- Wheelbase: 257mm
- Monocoque Chassis Frame
- Belt-Driven 4WD
- F/R Gear Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- CVA Shock Units
- Gear Ratio＝8.04:1 (When used with kit-standard 68T spur and 22T pinion gears)
- Full Ball Bearings
- Type 540 Motor
- Adjustable Gear Ratio Yes
- Bearings Shielded ball bearing
- Body Material Polycarbonate
- Body Stickers Included
- Chassis Material FRP Fiberglass Reinforced Plastic
- Chassis Type XV-01
- Construction Type Assembly Kit
- Differential Type Gear-Type (Oil-Filled)
- Drive Type 4WD
- Led Light Buckets no
- Led Lights no
- Motor 540-brushed type
- Scale 1/10
- Shock Damper Oil-filled damper
- Suspension 4-wheel fully independent double wishbone
- Terrain Use Multi-Purpose
- Requires 2-channel radio, servo ,electronic speed controller, 7.2 volt battery & charger, Tamiya PS paint (sold separately)
