Tamiya 47511 1/10 Audi 90 Quattro Racing TT-02 Kit with Pre-Painted Body

The Audi 90 quattro Racing flourished at American races in 1989. With a 2.2-liter inline-5 turbo engine capable of over 700hp, the 4WD quattro system gave it superior traction. Wider than the road car, its body had a large rear wing, and carbon and aluminum were largely used for its lightweight panels.

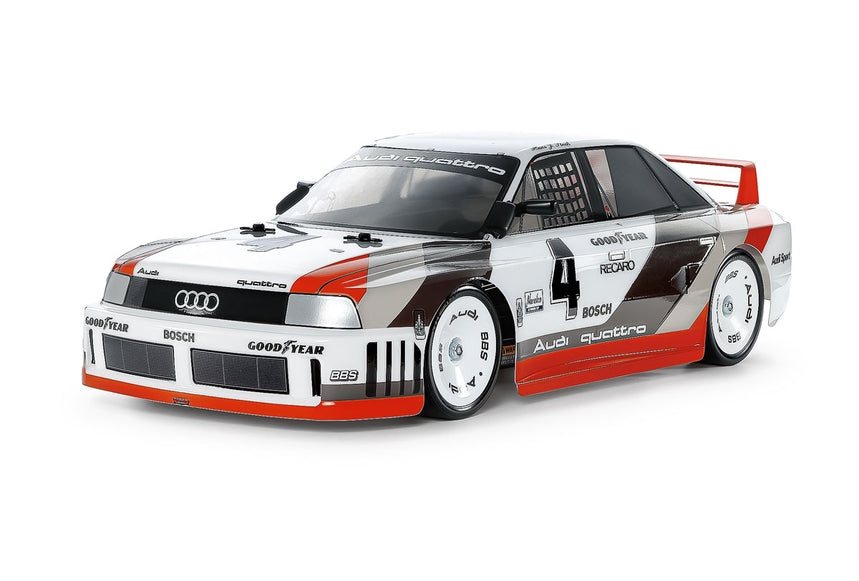

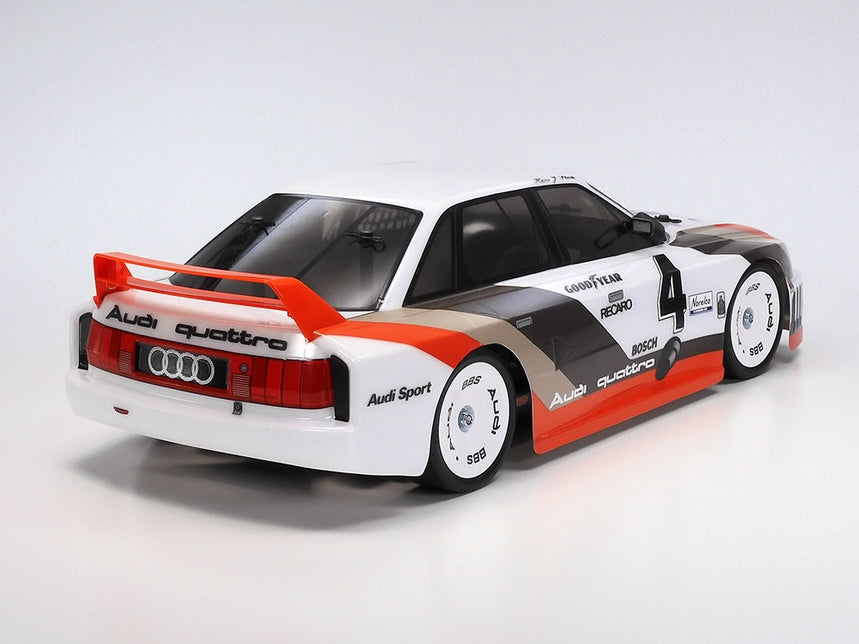

This R/C model assembly kit recreates the Audi 90 quattro Racing. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts side mirrors and rear wing add an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase and the dedicated flat dish wheels have a +4mm offset to go with the wide body.

For a limited time only: The limited-edition version of the kit includes the polycarbonate body pre-painted in White (PS-1) with Smoke (PS-31) windows, pre-cut wheel arches and pre-made body mount holes, which is great for not only beginners but also R/C veterans.

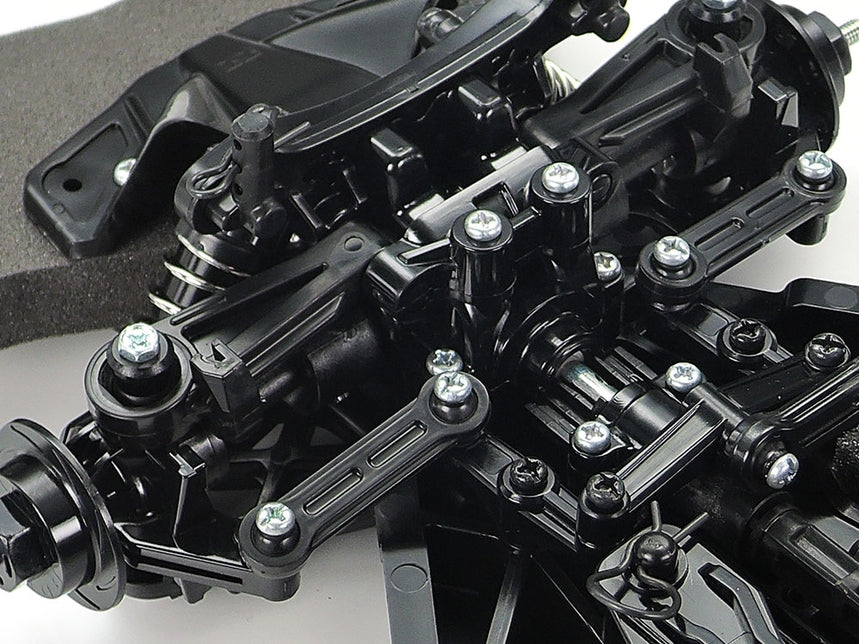

TT-02: Adaptable, balanced shaft driven 4WD - The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

FEATURES:

• The Audi 90 quattro Racing is made of lightweight, rigid polycarbonate
• Separate red ABS plastic parts realistically depict distinctive side mirrors, a rear wing and air ducts
• Newly designed white dish wheels (+4mm offset) are paired with slick tires
• The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability
• Includes Item 51226 (Urethane Bumper L (TT-01, TGS)) to keep the body in top condition
• Includes: 540-size Tamiya Torque Tuned brushed motor and Hobbywing produced ESC
• Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger

SPECIFICATIONS:

• Length: 446mm
• Width: 192mm
• Height: 127mm
• Wheelbase: 251mm
• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate pre-painted body
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: TT-02
• Construction Type: Assembly Kit
• Differential Type: Gear
• Drive Type: 4WD
• Electronic Speed Control (esc): Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor: 540-brushed type
• Scale: 1/10
• Shock Damper: Friction damper
• Suspension: Fully Independent Double Wishbone
• Terrain Use: On-Road
