Tamiya 47461 1/10 Opel Calibra VS TA-02 Chassis Kit

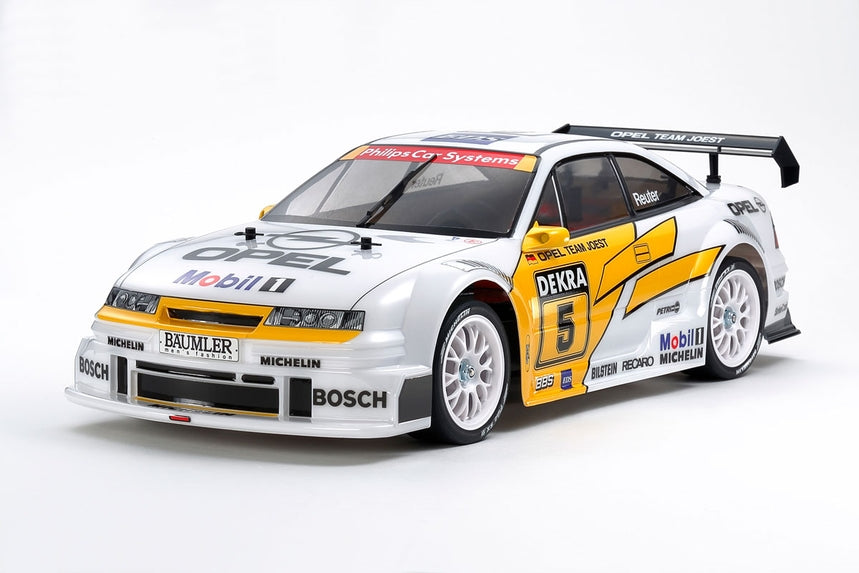

This is a R/C recreation of the Opel Calibra V6 that took part in the 1994 running of the Deutsche Tourenwagen Meisterschaft (DTM) series. Entered by Joest Racing, the car was powered by a 2.5-liter V6 engine and piloted among others by former Formula One champion Keke Rosberg. The Limited-Edition kit is an exact re-release of the original as it appeared in the mid-1990’s.

TA-02 Chassis: The proven TA02 bath-tub chassis provides shaft-driven 4WD. 4-wheel double wishbone suspension is fitted with CVA oil dampers. Enclosed front and rear gear cases have built-in diff gears, with a ball differential in the rear.

FEATURES:

• 1/10 scale R/C model assembly kit.
• Length: 448mm
• Width: 185mm
• Height: 131mm
• Wheelbase: 260mm
• Polycarbonate body, with separate parts recreating the side mirrors, wiper arms and rear wing.
• The model utilizes the shaft-driven 4WD TA02 chassis, which is based around a durable bathtub frame.
• Openable gearboxes house a front 3-bevel gear differential and rear ball differential.
• The TA02 features 4-wheel double wishbone suspension and CVA shock-dampers for smooth, responsive handling.
• White mesh type wheels are paired with slick tires.
• Included in the kit are two big sticker sheets to recreate the various sponsors and other markings, plus masking stickers for use in the paint process.
• Includes 540-brushed type motor.
• Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Requires: 2-channel radio, steering servo, 7.2-7.4volt battery pack and compatible charger, and Tamiya PS polycarbonate paint for the body. NOTE: Battery pack must have the round stick pack form factor. Square shaped Li-Ion batteries do not fit the battery compartment.

SPECIFICATIONS:

• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: ABS Plastic
• Chassis Type: TA-02
• Construction Type: Assembly Kit
• Differential Type: Gear
• Drive Type: 4WD
• Electronic Speed Control (esc): Includes NEW TBLE-04S ESC. Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over.
• Motor: 540-brushed type
• Required To Complete: 2-channel radio, steering servo, 7.2volt battery & battery charger, and Tamiya PS paint.
• Scale: 1/10
• Shock Damper: CVA Oil Filled
• Suspension: 4-wheel fully independent double wishbone
• Terrain Use: On-Road
