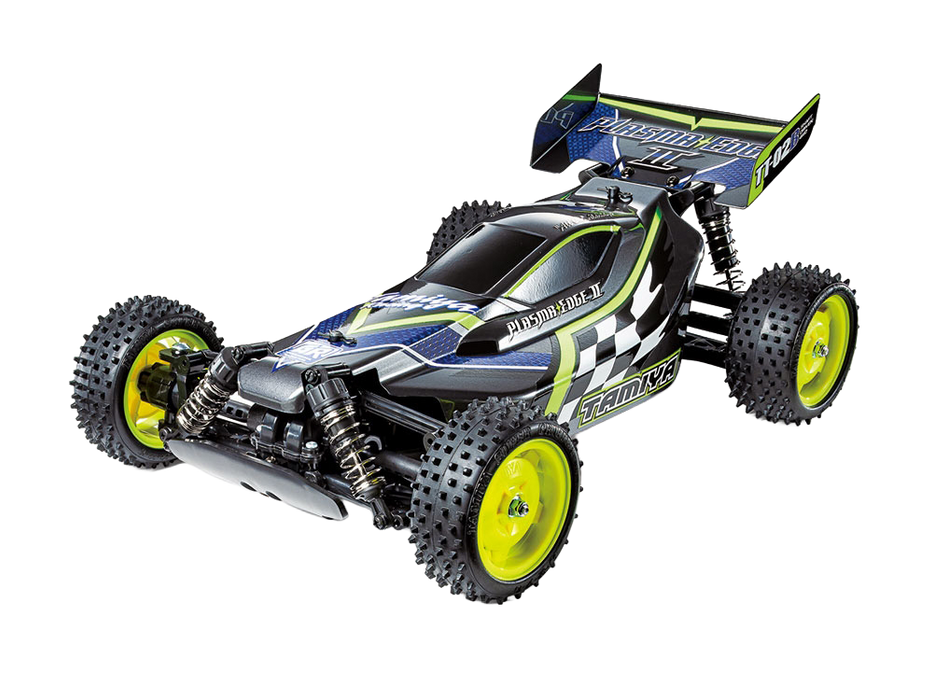

Tamiya 47446-60A Plasma Edge II Gun Metal TT-02B 4WD Electric Buggy Kit

Designed for performance and style, this rugged racer features a pre-painted gun metal body and fluorescent yellow star dish wheels, making it stand out on the track. With its TT-02B chassis, shaft-driven 4WD system, and included Hobbywing 1060 ESC and torque-tuned brushed motor, the Plasma Edge II delivers an exhilarating RC experience that's as affordable as it is capable.

This limited edition Plasma Edge II buggy features a professionally factory precut and pre-painted gun metal body, paired with fluorescent yellow star dish wheels that provide a unique and a vibrant look to the Plasma Edge II.

The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms giving the car assured handling, while the suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differential gears for smooth operation. The top can be removed simply by loosening a few screws, making maintenance a breeze! In addition, four different gear ratios can be applied with the use of three separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. In addition, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track!

This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for a user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 torque tuned motor offers higher top speeds and increased acceleration.

FEATURES:

• Based on the popular 4WD entry level TT-02 chassis
• Factory painted and trimmed limited edition body
• Lightweight and durable resin monocoque chassis
• Shaft driven 4-wheel drive
• Smooth oil-filled composite shocks
• 4-Wheel fully independent double wishbone
• Reliable HobbyWing THW 1060 brushed ESC
• 540 size Torque-tuned brushed motor
• Fluorescent yellow star dish wheels
• High-grip square spike tires

SPECIFICATIONS:

• Scale: 1:10
• Drive: 4WD
• Power Source: 2S LiPo
• Length: 14.57in (370mm)
• Width: 9.84 (250mm)
• Height: 6.3in (160mm)
• Assembly Level: Kit

INCLUDES:

• (1) Tamiya Plasma Edge II Kit w/Pre-Painted Body
• (1) Hobbywing 1060 ESC with Tamiya Connector
• (1) Torque tuned 540 brushed motor
• (1) Decal sheet
• Manual

Needed to complete:

• (1) 2-Channel radio/receiver system
• (1) Steering servo
• (1) 7.2V NiMH battery w/Tamiya Connector
• Compatible Charger
• Assembly Tools
