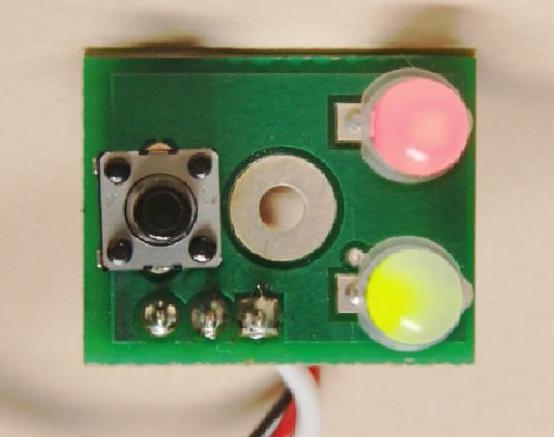

Tam Valley Depot FCB020RG Fascia Controller

Tam Valley Depot DCC Fascia Controller Bicolor Red - Green Fascia Controller for Singlet III/QuadLN and Octo III. Bicolor Fascia Controller for Singlet III/QuadLN and Octo III. Plug the fascia controller in to our servo controllers to both actuate the board and to indicate its status. There are 4 optional colors available. The Red-Green will have one LED Red and the other Green, when the button is pushed the turnout will throw and the Red and Green LEDs reverse. The Red-Red, Green-Green, and Yellow-Yellow will have one LED lit and the other dark. This fully assembled and ready to use controller mounts on the fascia or control panel. Use for manual throwing of your switches and also provides feedback on servo position when used with DCC/signals. Mounts using a #4 self-tapping screw (included). Comes with a 12" cord attached. 3-wire servo extensions can be used to extend the reach. By using a "Y" cable, two controllers can be added to one port to provide two control points for one turnout.

Controller is 0.6 x 0.8 " in size.
