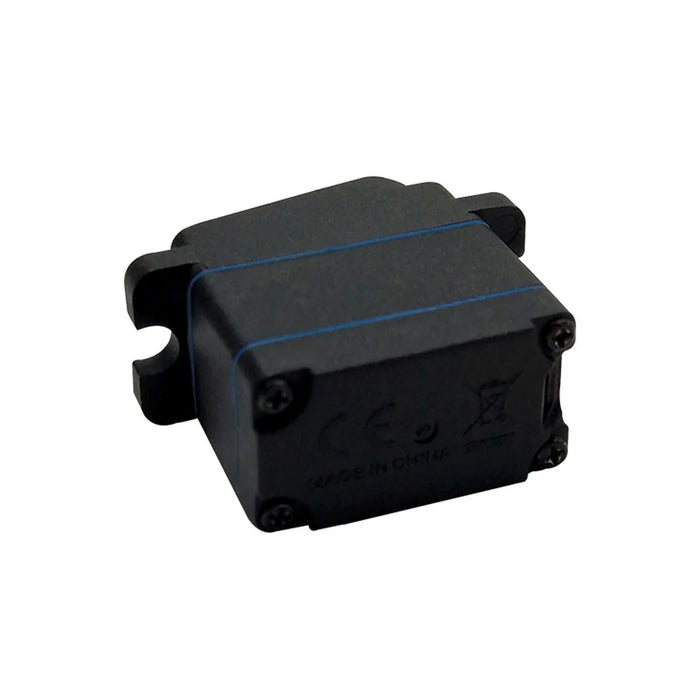

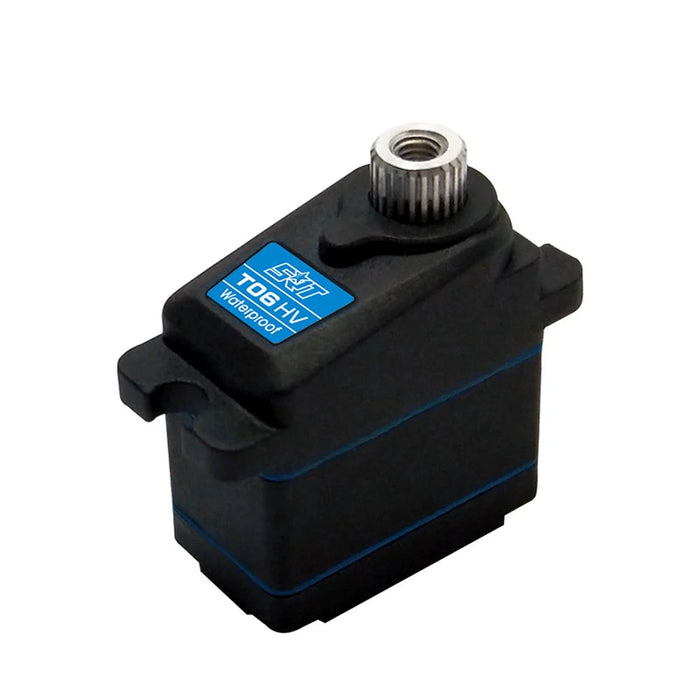

SRT T06 Mini HV DC Waterproof Servo

10sec / 38.9oz @ 7.4V

The latest generation of SRT servos provides you with the performance you need for any vehicle application. This is a mini sized servos for High-Voltage applications up to 7.4V.

FEATURES:

• Ideal for 1/10 on road and 1/10 off road scale applications (such as shifting or diff locking)
• Incredible efficiency and low power consumption
• Superior waterproof

SPECIFICATIONS:

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Copper & Aluminum
• Control System: Pulse Width Control
• Working Frequency: 1520Is / 330hz
• Operating Voltage: dc4.8-7.4v
• Operating Temperature Range: -10 to + 60 degree
• Operating Speed (4.8v): 0.16 sec/60 degrees at no load
• Operating Speed (6.0v): 0.12 sec/60 degrees at no load
• Operating Speed (7.4v): 0.10 sec/60 degrees at no load
• Stall Torque (4.8v): 1.9kg.cm (26.4 oz/in)
• Stall Torque (6.0v): 2.5kg.cm (34.7 oz/in)
• Stall Torque (7.4v): 2.8kg.cm (38.9 oz/in)
• Potentiometer Drive: Direct Drive
• Dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
• Weight: 16.0g (0.56 oz)
• Connector Wire Length: jr 350 mm
