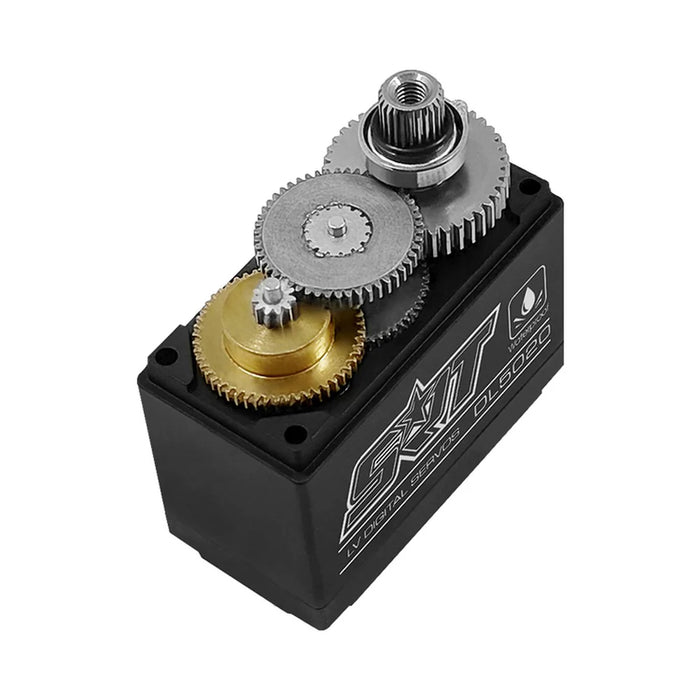

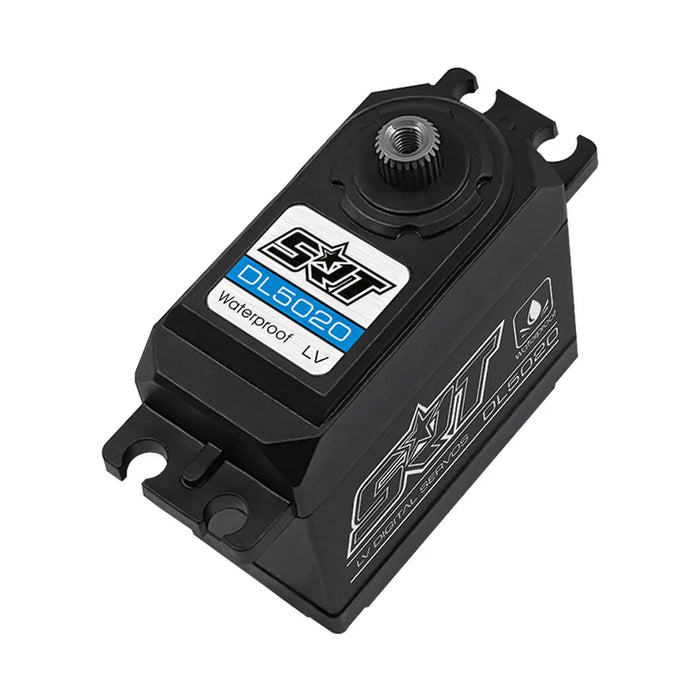

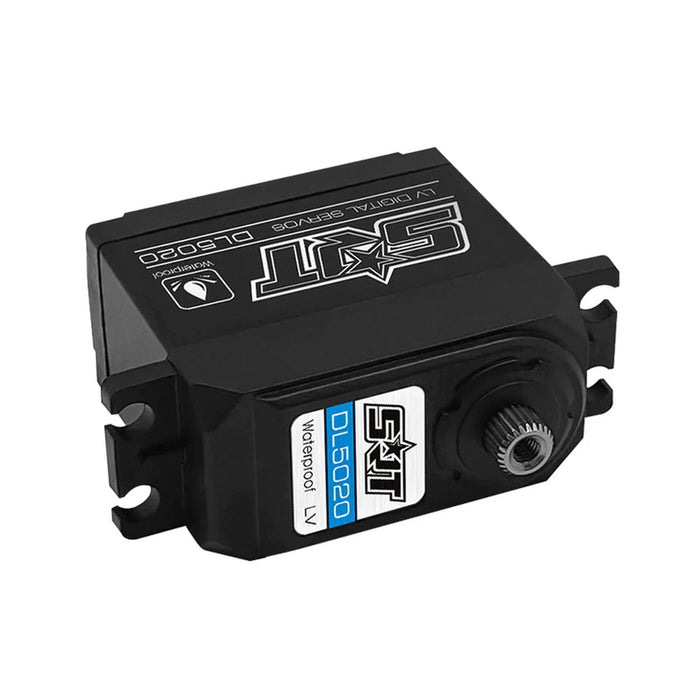

SRT DL5020 Standard LV DC Digital Waterproof Servo

16sec / 277.7oz @ 6.0V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 6.0V.

FEATURES:

• Ideal for 1/10 on road applications
• Incredible efficiency and low power consumption
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• Superior Holding Torque

SPECIFICATIONS:

• Type: Digital
• Bearing: Dual
• Motor Type: DC
• Gear Type: Metal
• Gear Material: Titanium & Aluminum
• Control System: Pulse Width Control
• Working Frequency: 1520Is / 330hz
• Operating Voltage: dc4.8-6.0v
• Operating Temperature Range: -10 to + 60 degree
• Operating Speed (4.8v): 0.18 sec/60 degrees at no load
• Operating Speed (6.0v): 0.16 sec/60 degrees at no load
• Stall Torque (4.8v): 16.5kg.cm (229.1 oz/in)
• Stall Torque (6.0v): 20.0kg.cm (277.7 oz/in)
• Potentiometer Drive: Direct Drive
• Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
• Weight: 62.0g (2.19 oz)
• Connector Wire Length: jr 300 mm
