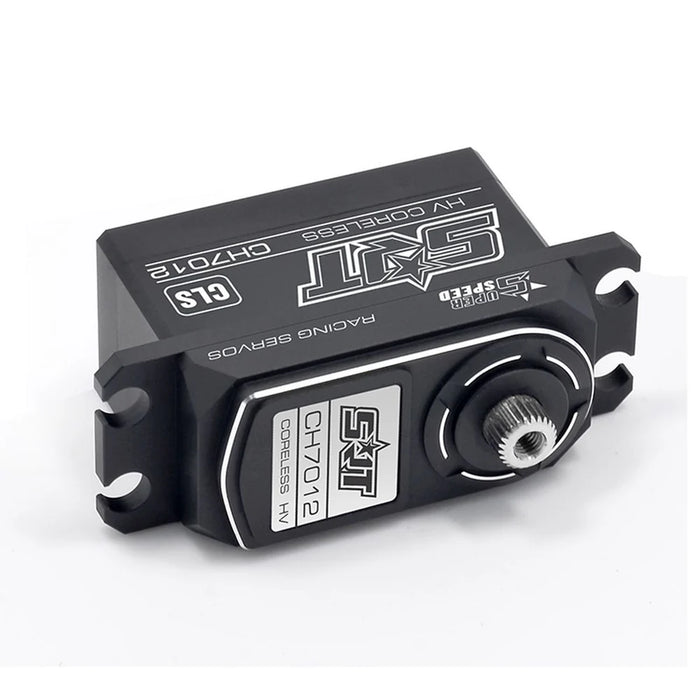

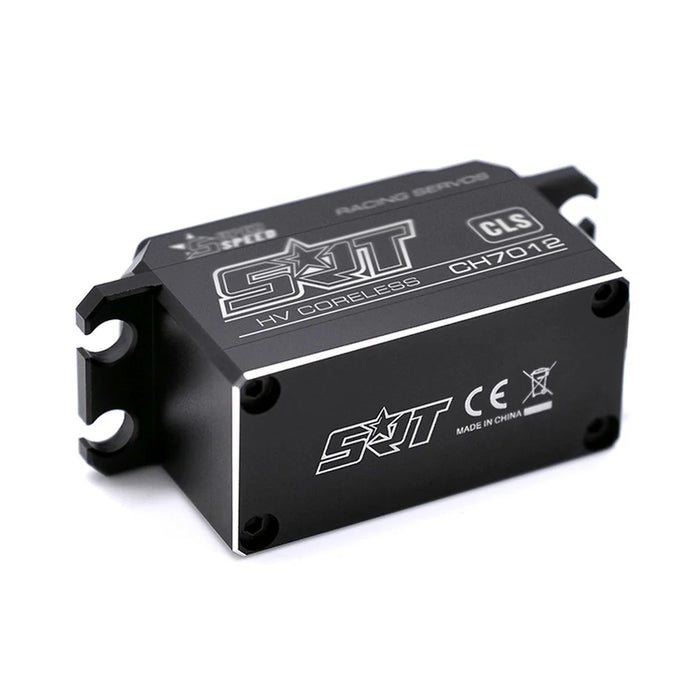

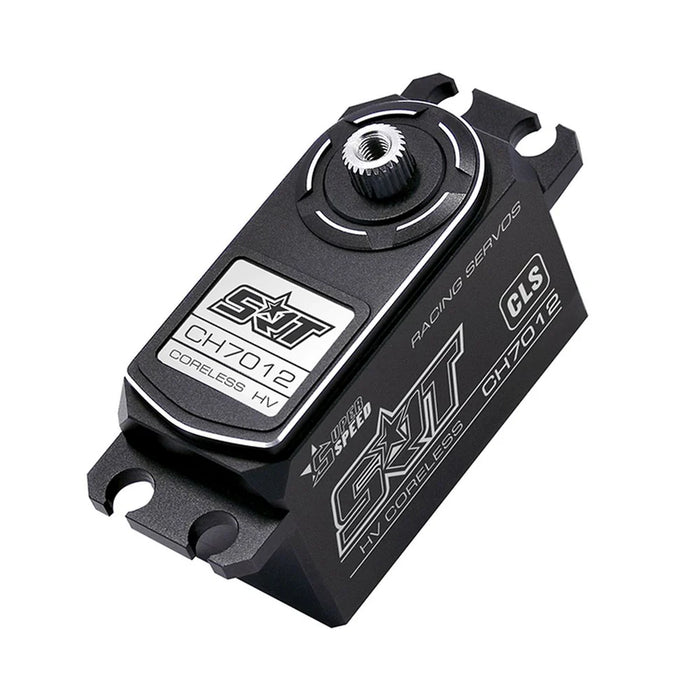

SRT CH7012 Low Profile HV Coreless Digital Servo

057sec / 166.6oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a low profile standard sized servo for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

FEATURES:

• Ideal for 1/10 on road applications
• Incredible efficiency and low power consumption
• Titanium & Aluminum gears for precision and durability
• Standard dimension make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 2 usec Dead Band
• Superior Holding Torque

SPECIFICATIONS:

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Aluminum
• Control System: Pulse Width Control
• Working Frequency: 1520Is / 330hz
• Operating Voltage: dc6.0-8.4v
• Operating Temperature Range: -10 to + 60 degree
• Operating Speed (6.0v): 0.07 sec/60 degrees at no load
• operating Speed (7.4v): 0.06 sec/60 degrees at no load
• Operating Speed (8.4v): 0.057 sec/60 degrees at no load
• Stall Torque (6.0v): 9.0kg.cm (124.9 oz/in)
• Stall Torque (7.4v): 11.0kg.cm (152.8 oz/in)
• Stall Torque (8.4v): 12.0kg.cm (166.6 oz/in)
• Potentiometer Drive: Direct Drive
• Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
• Weight: 52.0g (1.83 oz)
• Connector Wire Length: jr 180 mm
