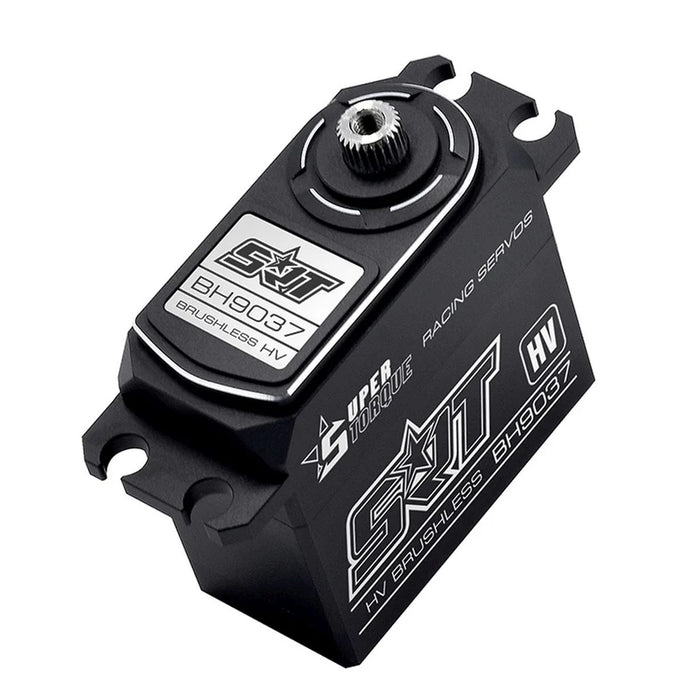

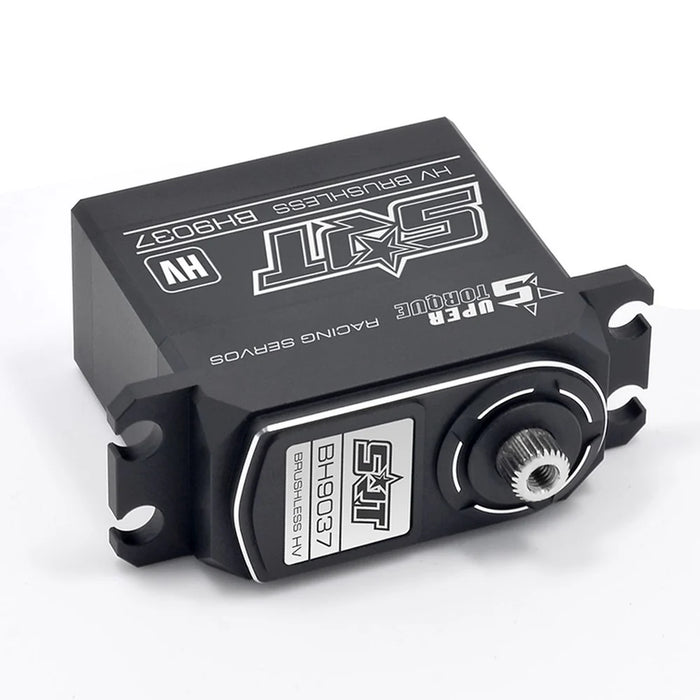

SRT BH9037 Large Scale HV Brushless Digital Servo

0.13sec / 513.8oz @8.4V

The latest generation of SRT servos provides you with the performance you need for any large scale vehicle application. This is a large scale sized servo for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

FEATURES:

• Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
• Incredible efficiency and low power consumption

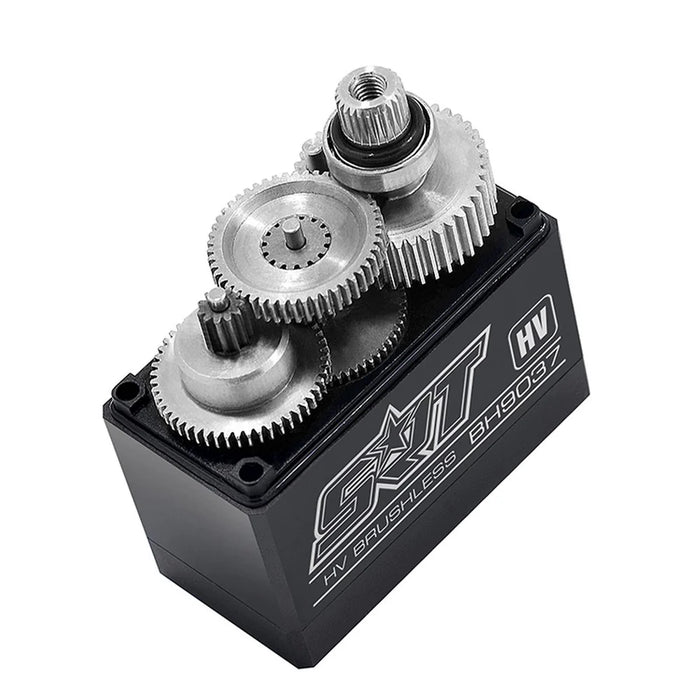

• Titanium & Steel gears for precision and durability
• 0.16 / 416.6 oz-in @6.0V and 0.13 / 513.8oz-in @ 8.4V
• Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 2 usec Dead Band
• Superior Holding Torque

SPECIFICATIONS:

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• Control system: pulse width control
• Working frequency: 1520 Is / 330hz
• Operating voltage: dc6.0-8.4v
• Operating temperature range: -10 to + 60 degree
• Operating speed (6.0v): 0.12 sec/60 degrees at no load
• Operating speed (7.4v): 0.11 sec/60 degrees at no load
• Operating speed (8.4v): 0.085 sec/60 degrees at no load
• Stall torque (6.0v): 90.0kg.cm (1249.9 oz/in)
• Stall torque (7.4v): 110.0kg.cm (1527.6 oz/in)
• Stall torque (8.4v): 125.0kg.cm (1735.9 oz/in)
• Potentiometer drive: direct drive
• Dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
• Weight: 209.0g (7.37 oz)
• Connector wire length: jr 350 mm
• Maximum locked-rotor current in different voltage: 6.0V -> 9.5A / 7.4V -> 11.5A / 8.4V -> 13A
