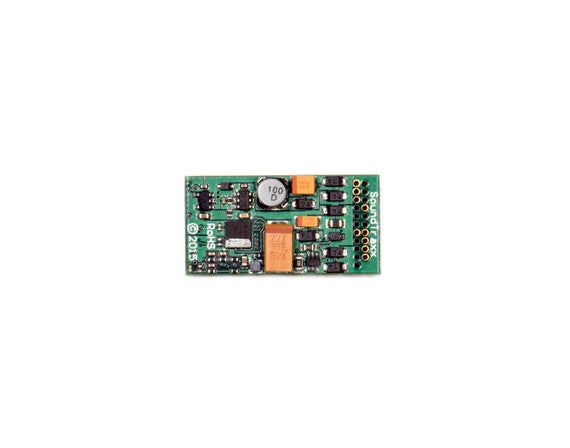

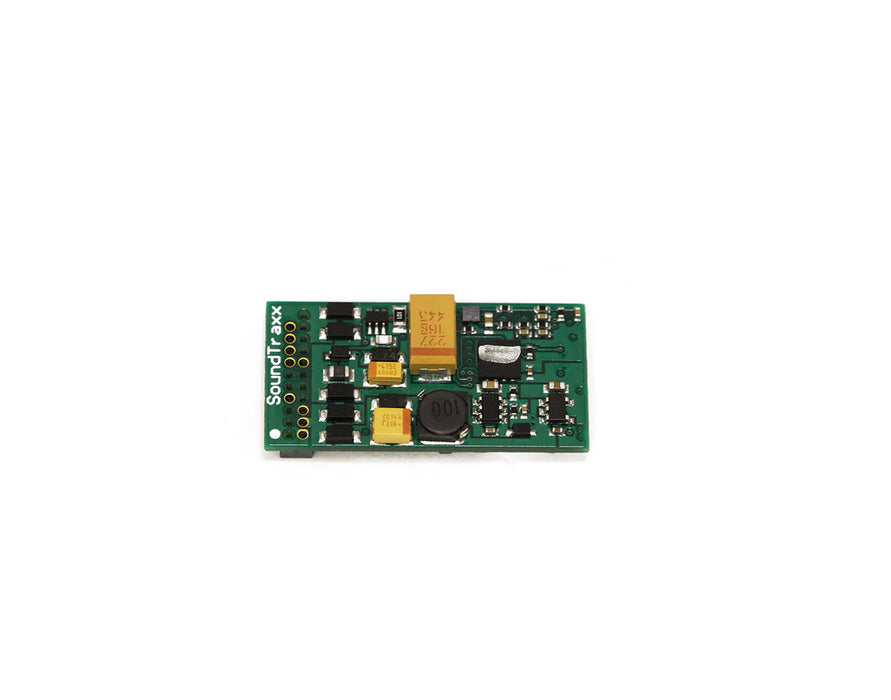

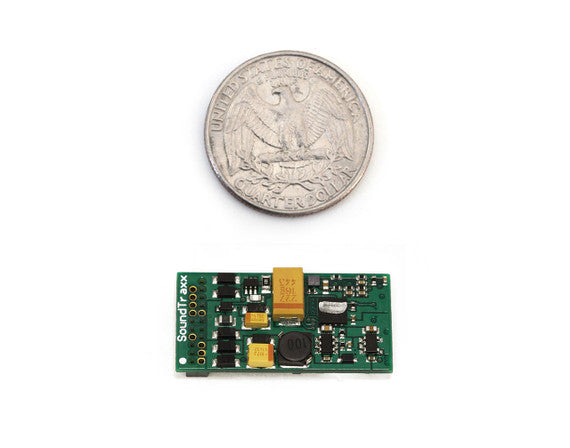

Soundtraxx 882006 ECO-21PNEM Econami Diesel Locomotives

21 Pin NEM DCC & Digital Sound Decoder

A true pioneer in the model train industry, SoundTraxx has been creating innovative products for the discriminating model railroader since 1990. They proudly design and manufacture industry-best products right here in the USA.

FEATURES:

• High quality sound effects
• 4 Exhaust Chuffs
• 5 Prime Movers in each sound profile
• Up to 7 Bells
• 16 Airhorns
• 16 Whistles
• Additional couplers, dynamos, and more!
• This 1-amp Digital Sound Decoder simply plugs into models equipped with an NEM-supported 21-pin socket

SPECIFICATIONS:

• Dimensions: 30.5 x 15.5 x 6.6mm
• Max. Motor Stall Current: 1A
• Max. Function Current: 100mA (each output)
• Function Outputs: 6
• Audio Amplifier: 2 Watt, 8-Ohm Load
• DCC Track Voltage: 7V – 22V
• Sound Channels: 12
