Soundtraxx 852005 MC1H104P21 HO Scale MC1 Series 4 Function

21 Pin Plug DCC Decoder

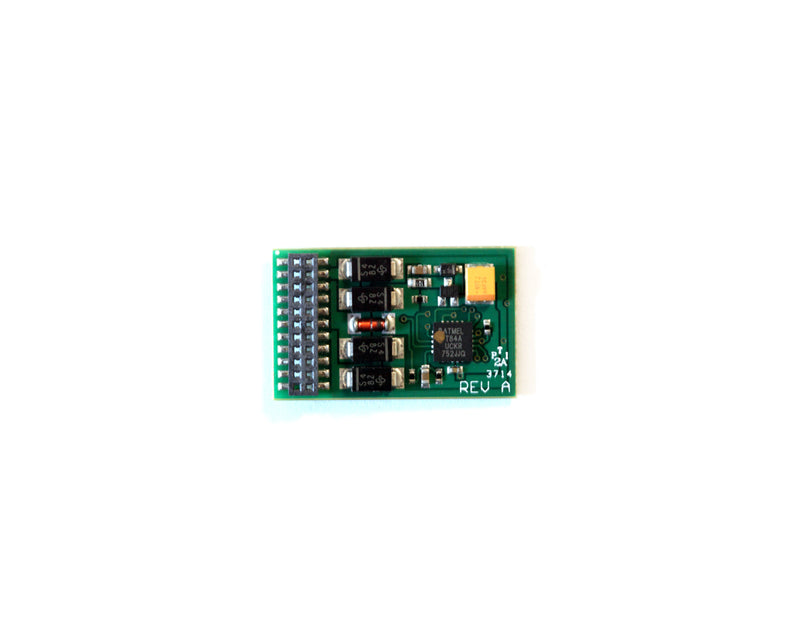

HO-scale, 4-function decoder that measures 25.1 x 15.6 x 4.7mm. This decoder has a 21-pin connector arranged according to the NMRA Standard that easily plugs into the factory-installed PCB of many models. This decoder will operate in DCC only.

SPECIFICATIONS:

• Dimensions: 25.1 x 15.6 x 4.7mm
• Max. Motor Stall Current: 1A
• Max. Function Current: 100mA (each output)
• Function Outputs: 4
• DCC Track Voltage: 21 Volts Maximum
