ScaleTrains 33100 Rivet HO Scale GE ES44 C45ACCTE GEVo Union Pacific UP 7953
In 2002, GE released the first GEVo, a new series of locomotives that would replace the AC4400CW and Dash 9-44CW. The first two models were the ES44DC and ES44AC. The ES44C4 followed a few years later.
The new models were designed to meet the stricter diesel locomotive emissions standards imposed by Environmental Protection Agency (EPA) regulations. The EPA “Tier” emissions standards are a series, or Tiers, of allowable emissions levels based upon a locomotive’s date of manufacture. In 2005, Tier 2 took effect followed by Tier 3 in 2010 and Tier 4 took in 2015.
GE developed a new diesel engine, the 12-cylinder GEVO 12, to meet the new emission standards. Both the bore and stroke were increased to produce the same 4,400 horsepower as the older 7FDL16 16-cylinder engine.
The new prime mover drives an alternator producing AC current that is rectified to DC current. On the ES44DC, this powers the traction motors. On the ES44AC and ES44C4, the DC current is “chopped” back into AC to power the traction motors. The two models share a common 73’ 2” frame and external appearance.
The external appearance is similar to the AC4400CW. In fact, the cab on early ES44s is almost identical. In 2009, GE changed the cab and nose, moving the nose door from the left side to the right side and replacing the curve seams with more square seams.
Unlike their predecessors, both the AC and DC versions of the ES44 have the large box behind the cab. The biggest visual difference is the larger “wing” structure over the radiator cab. The thicker radiators and related equipment in the radiator cab work to cool the exhaust, which reduces emissions.
Customer options and design changes have resulted in seven different dynamic brake configurations. The grilles on the sides of the radiator cab have also gone through seven configurations. The most recent units have changed the latches on the engine cab doors to match the ET44 units.
Although EPA Tier 4 standards went into effect in 2015, the ES44-series continue to be built. This is due to the Tier 4 Credits, a complicated system that allows GE to continue to build and various railroads to buy the ES44 based on the number of Tier 4 units built.
After 2 testbed units and 35 pre-production units, over 7,600 additional ES44s have been built. All of the major railroads including BNSF, Canadian National, Canadian Pacific, CSX, Norfolk Southern, and Union Pacific have fleets with 100s of units. Florida East Coast, Ferromex, Iowa Interstate, and Kansas City Southern also operate ES44s. In addition, 131 were built as lease units for Citirail.
The ES44 has become the best-selling diesel locomotive of all time.
- Era: 2012 to Present
- Series: 7925 to 8051, built 3-9/12
- Road numbers: 7928, 7953, 7956, 7993, 8023 and 8037
- Standard Union Pacific flag paint scheme
- Designated C45ACCTE
- Fully assembled
- Multiple road numbers
- Operating LED front deck-mounted ditch lights
- Operating LED front, rear, and rectangle side walkway lights*
- Operating LED ground lights on both sides of locomotive*
- Printed and LED lighted number boards*
- Single trainline hose with silver gladhand
- Front and rear raised pilot-mounted Multiple Unit (MU) receptacles
- Front dummy Multiple Unit (MU) receptacles mounted to pilot face
- See-through round-hole stepwell steps
- Walkway with front anticlimber; no support brackets
- Pilot-mounted battery charging receptacles
- GE “nub” tread plate on walkways
- Late handrails with U-bolt caps and narrow rear most stanchion on long side rails
- Front nose headlight
- Right nose door without window
- Narrow profile end handrails
- Front high-mounted (cab) numberboard housings
- Left side under cab front access bolted X panel; rear door with square corrugated grille
- Late cab with barrel bolt latches on subbase doors
- Detailed cab interior with separate floor, rear wall, seats, control stand, and grade crossing camera
- Dual cab side blue flag holder
- Tinted cab side windows
- Tall mirror mounted in front of sliding cab side windows on both sides; additional small mirror on right side
- Cab roof JEM Communications PTC antenna farm with single large Sinclair antenna
- Sand box clean out door with handle and rotating hinge
- Small hinged inverter cabinet door
- Etched metal see-through dynamic brake intake grilles with blower motors visible inside
- Left side dynamic brake cab: late single blower dynamic brake package with dual stand-off exhaust, two small center grilles, and latched center door
- Right side dynamic brake cab: X panel door, small grille, door with grille, and X panel door
- See-through dynamic brake exhaust
- Short right side air intake grille
- Left side auxiliary cab: 3 tall doors with latches on the #2 door and long auxiliary cab filter box door
- Right side auxiliary cab: 4 doors with latches on #1 and #4 doors
- Lost wax brass cast Nathan AirChime K5HLR2 horn mounted on engine cab roof
- ES44 style engine cab doors: latched first door in each set of three
- Left side exhaust cab doors: latched last door in set of three
- Flush heat exchanger housing with two piece wide slot grille
- 22 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Raised radiator grille
- Left side radiator cab grille arrangement: Raised doors. Grilles – Tall-Short-Tall-Short-Tall, no grille under brake wheel short front angled grille and two-piece rear angled grille
- Right side radiator cab grille arrangement: Raised doors. Grilles – tall, short, tall, short, short, tall, short, tall, short front angled grill, two-piece rear angled grille
- Flat water fill box with sight glass
- High mounted horizontal rear headlight
- Rear wide-spaced dual dummy Multiple Unit (MU) receptacles
- Accurately profiled frame with separately applied plumbing and cabling
- AEI tag mounted to right sidesill
- Toilet drain with interior handle
- Dual Graham-White (Prime) finned 075 air filters
- Graham-White 994-500 air dryer
- GE Hi-Ad trucks with smooth section in sideframe over center axle plus separately applied brake cylinders, air plumbing, and rotating bearing caps
- Triangular handbrake chain bracket
- 5,300-gallon fuel tank with internal waste retention tank, digital fuel gauge, vertical fuel gauge, and round fuel gauge
- Dual fuel fills per side with rear fill “blanked”
- Angled top left side fuel tank top box
- Short crankcase drainpipe
- Semi-scale coupler buffers equipped with die-cast metal semi-scale standard Type E knuckle couplers
- Factory-applied wire grab irons, snowplow with grab irons, spare knuckles, 3-hose Multiple Unit (MU) clusters with silver gladhands, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted electronic bell, brake wheel, and more
- Motor with 5-pole skew-wound armature
- Balanced dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22”
DCC & sound ready locomotives also feature:
- Operable using a DC power pack
- DCC ready with 21-pin connector
* Lighting features operate when using an ESU decoder with appropriate programming while operating using DCC
** During DC operation, class lights illuminate in white. Access to other colors and the ability to change colors requires an ESU DCC decoder while operating in DCC
*** Compatible with appropriately programmed ESU decoders while operating using DCC

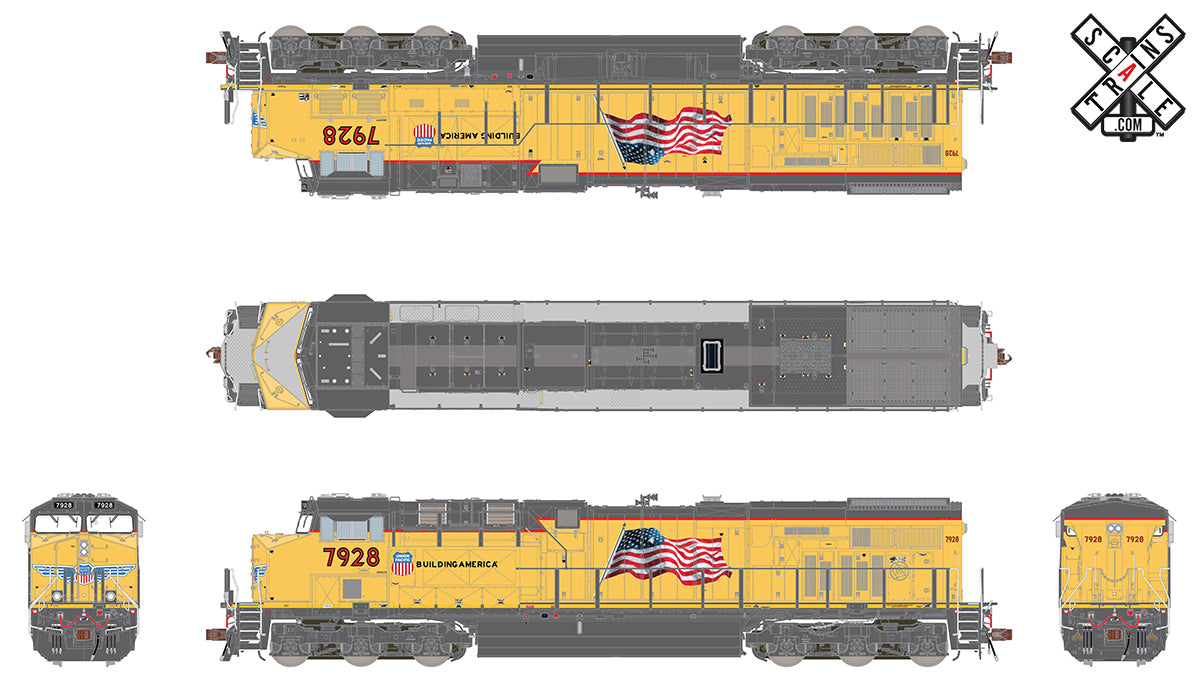

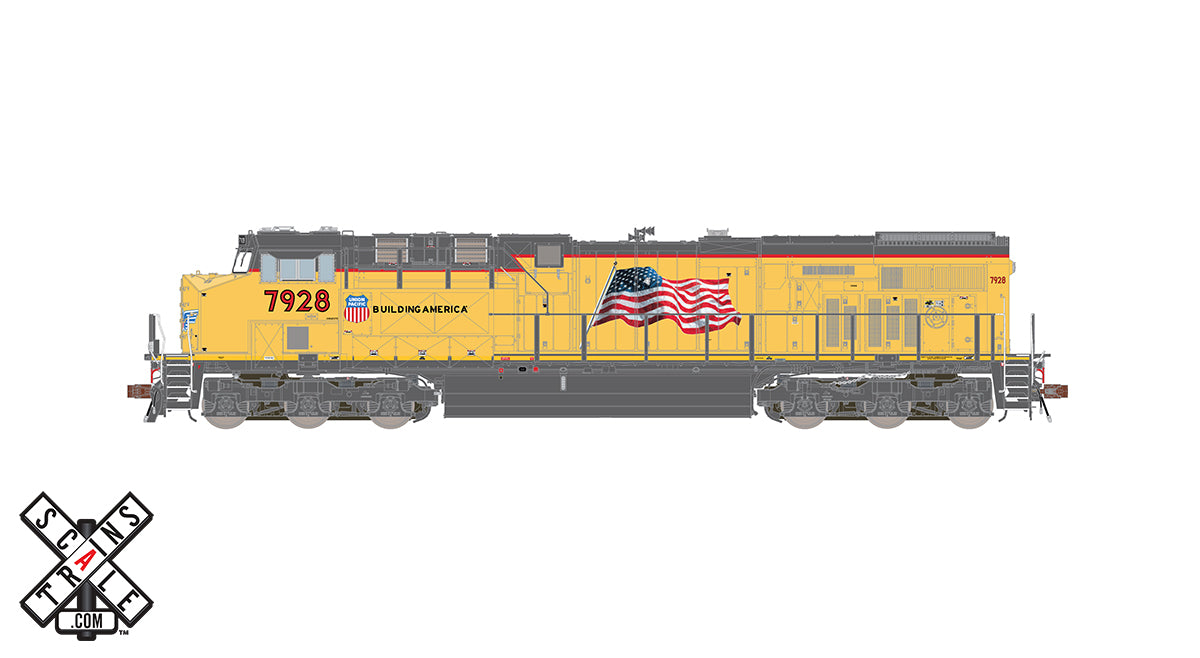

NOTE: Road number may vary from picture shown.
