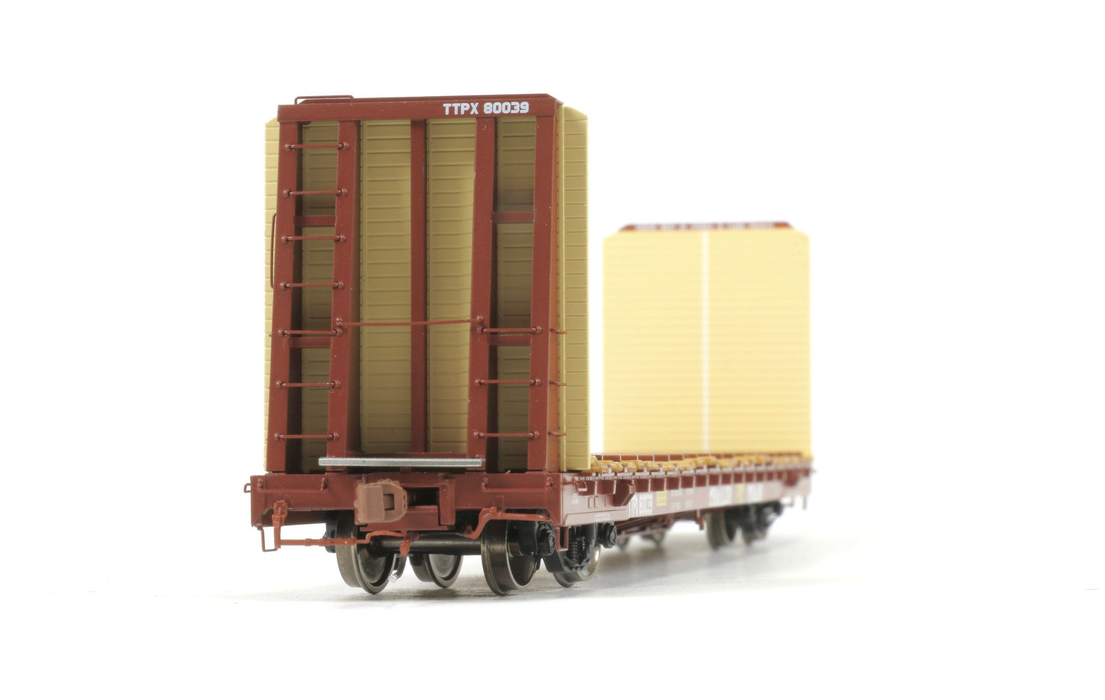

ScaleTrains 31161 Rivet HO Scale BSC F68AH Bulkhead Flatcar Trailer Train Red TTPX 80113
The first production BSC F68-series flat cars, the F68AH, first appeared in 1969. They were initially equipped with 10’, 11” tall end bulkheads with wood facing; wood deck with integral tie-down channels; and steel deck risers. These 100-ton cars came equipped with 36” wheels, trucks equipped with hydraulic snubbers (at opposite corners of the car), and 15” End of Car Cushioning (EOCC) to improve ride quality and reduce dangerous shifting loads.
Well over 1,100 F68AH bulkhead flats were built before production of the design ceased in August 1974. Several are still in service today.
The early builds featured an “H” shaped fabricated jacking pad at the bolsters. During the final two years of production, this changed to a fabricated box with an integral roping eye. All were built with transverse steel risers in the deck but this feature would start to be removed from the fleet after just a few years of service. While most cars featured a bulkhead face-to-face distance (inside length) of 62’, some cars were equipped with added bulkhead faces over the original bulkheads which reduced the inside length to 60’, 6”.
FEATURES:
- TTPX series 80001-80245, 80247-80369 and 80520-80624
- Era: 1969+
- Examples in oxide red have been noted in service to present day
- TTPX 80113 – stenciled to return to Illinois Central when empty
- As-built bulkheads (62’ inside length)
- Transverse deck risers
- Early sidesills
- Early H-shaped jacking pads
- Optional modeler-applied ACI plates
- All-new model
- First time in HO scale
- Multiple road numbers per paint scheme

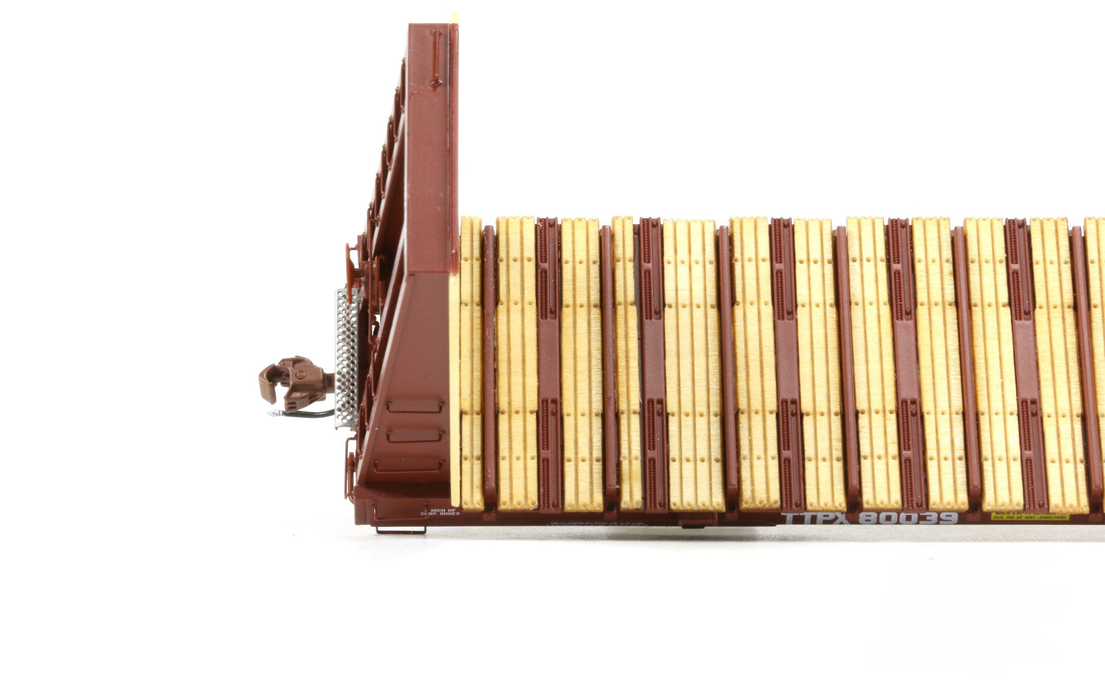

- Separate laser-cut wood deck to be applied by the modeler
- Recessed deck tie-down details
- Decks with transverse risers, or plain decks
- Durable die-cast metal semi-scale long-shank Type E couplers
- 100-ton trucks with hydraulic snubber and bracket details, rotating bearing caps, and truck-mounted brake beams
- 36” machined metal wheels
- Minimum radius: 18”
- Recommended radius: 22”
- Fully assembled
- Factory-applied metal grab irons
- Factory-applied coupler cut levers
- Trainline hoses
- Intricate brake plumbing
- Photo-etched stainless steel see-through end crossover platforms
- Printing and lettering legible even under magnification
- Color matched to existing Tru-Color Paint colors whenever possible
- Accurately profiled .110" wide wheel tread
- Weighted to Industry standards for reliable operation
- Operates on Code 70, 83 and 100 rail
- Packaging safely stores model
NOTE: Road number may vary from picture shown.
