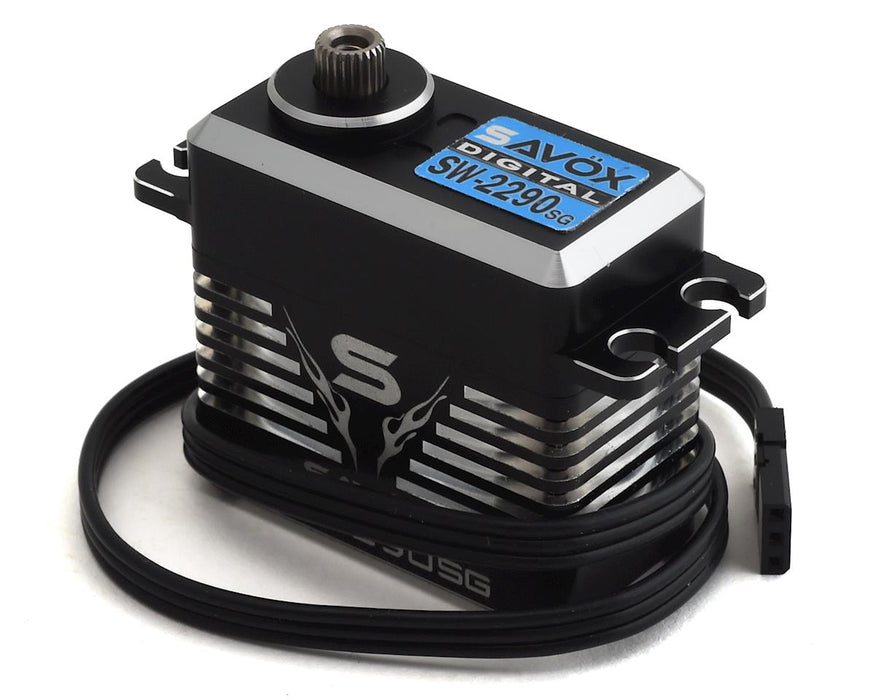

Savox SW2290SG Monster Torque Brushless Waterproof Servo Black Edition

by Savox
Sold out
Original price $189.99
Current price $152.99

Savox SW2290SG Monster Torque Brushless Waterproof Servo Black Edition

This is the Savox SW2290SG-BE Waterproof Premium Brushless Digital Servo, a powerful "Monster" performance series from Savox that utilizes an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

FEATURES:

  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings.
  • Unique steel gears
SPECIFICATIONS:
  • Torque @ 6v: 45.0kg/624.9oz-in
  • Torque @ 7.4v: 55.0kg/763.8oz-in
  • Torque @ 8.4v: 70.0kg/972.1oz-in
  • Speed @ 6v: 0.16 sec/60 deg
  • Speed @ 7.4v: 0.13 sec/60 deg
  • Speed @ 8.4v: 0.11 sec/60 deg
  • Dimensions: (LxWxH)(mm): 40.3x20.2x38.7mm
  • Weight: 81g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
