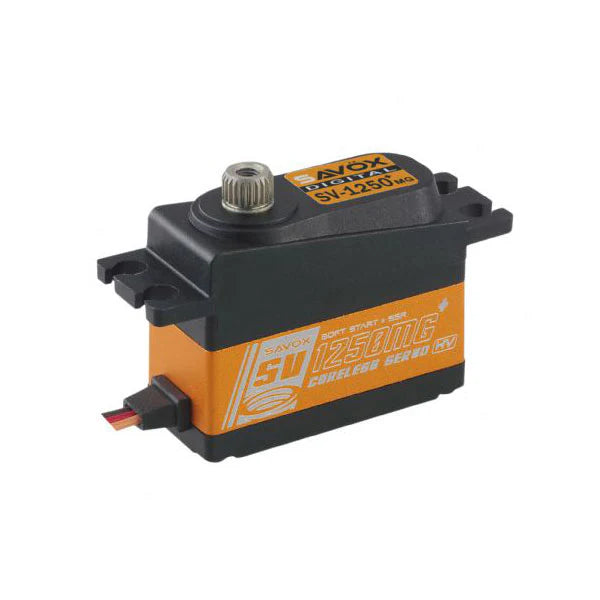

Savox SV1250MGP High Voltage Micro Tail Servo with Soft Start

The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Steel gear train provide durability against heavy use
• Capable of HV operation
• Aluminum middle case allows for cooler operating temperatures
• Ideal where torque is needed in a small mounting space
• "Plus" series servos feature Soft Start and Sanwa SSR compatibility

SPECIFICATIONS:

• Torque @ 6v - 4.6kg/63.9oz-in
• Torque @ 7.4v - 8.0kg/111.1oz-in
• Speed @ 6v - 0.11 sec/60 deg
• Speed @ 7.4v - 0.095 sec/60 deg
• Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
• Weight: 29.6g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 110° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 154° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
