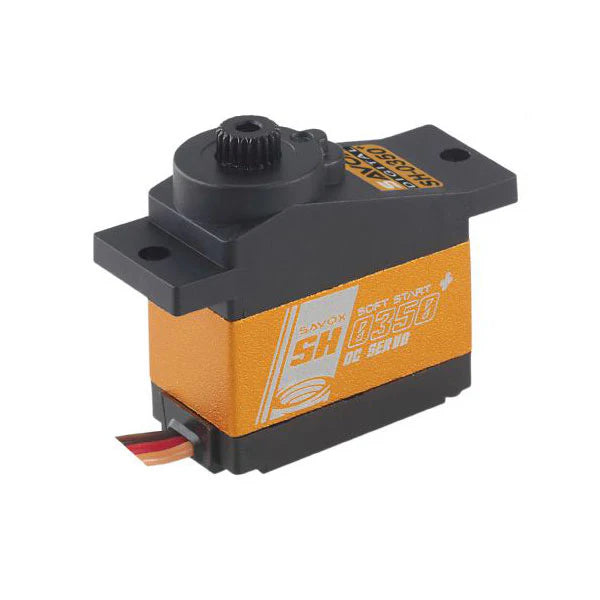

Savox SH0350P Micro Digital Servo with Soft Start

The SH-0350 Plus is a budget-friendly, micro-sized servo with an aluminum case for additional support.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Aluminum middle case allows for cooler operating temperatures
• Ideal for small planes, and 450 size helicopters
• "Plus" series servos feature Soft Start and Sanwa SSR compatibility

SPECIFICATIONS:

• Torque @ 4.8v - 2.2kg/30.6oz-in
• Torque @ 6v - 2.6kg/36.1oz-in
• Speed @ 4.8v - 0.21 sec/60 deg
• Speed @ 6v - 0.16 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
• Weight: 12.3g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings:
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2300 µ second
• Maximum Travel: Appx 150° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
