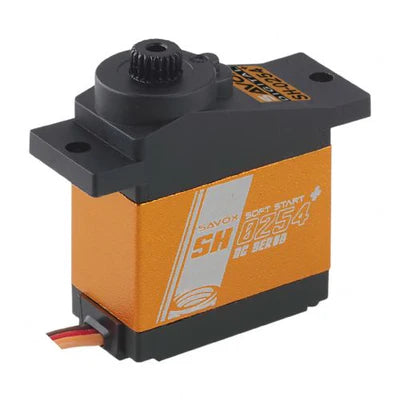

Savox SH0254P Micro Digital Servo with Soft Start

The Savox SH-0254 Plus micro, digital servo has plenty of torque and uses a combination of industrial plastic and metal gears for added durabilty and smoothness.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

FEATURES:

• Aluminum middle case allows for cooler operating temperatures
• Industrial plastic and metal gear train ensures durability and longevity
• Ideal for small planes, and 450 size helicopters

SPECIFICATIONS:

• Torque @4.8v - 3.1kg/43.1oz-in
• Torque @6v - 3.9kg/54.2oz-in
• Speed @4.8v - 0.16 sec/60 deg
• Speed @6v - 0.13 sec/60 deg
• Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
• Weight: 15.8g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 750 → 2250 µ second
• Maximum Travel: Appx 145° (750 → 2250 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
