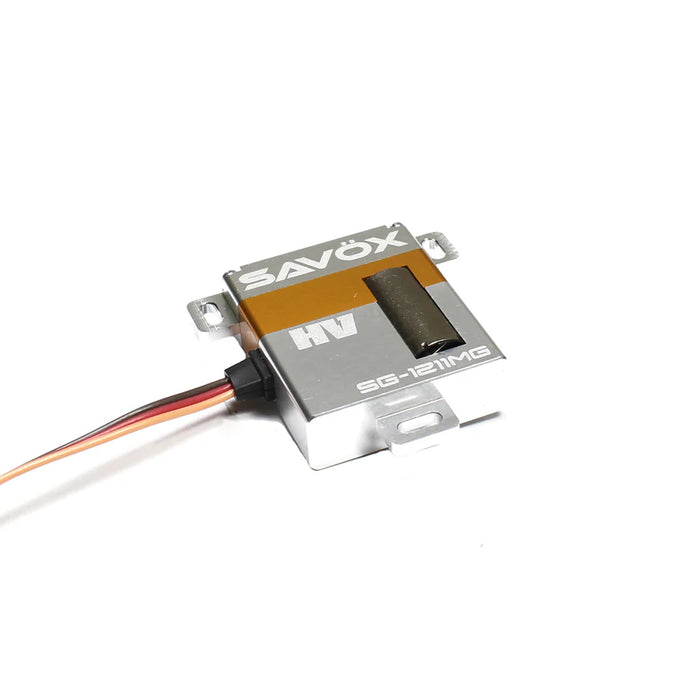

Savox SG1211MG High Torque High Voltage Metal Case Digital Glider Servo

High Torque High Voltage Metal Case Digital Glider Servo

FEATURES:

• Metal Gear train for extended life and durability
• Special design for glider applications
• All aluminum case for secure mounting
• Capable of 2S Operation

SPECIFICATIONS:

• Torque @6v - 8.0kg/111.1oz-in
• Torque @7.4v - 11.03kg/153.1oz-in
• Speed @6v - 0.18 sec/60 deg
• Speed @7.4v - 0.15 sec/60 deg
• Dimensions L x W x H (mm): 30.0 x 10.0 x 36.0
• Weight: 29g
• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 120mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 3000mA @6.0 V, 3700mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 165° (800 → 2200 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
